Typical Scan Data

Engine running, lower radiator hose hot, transmission in park or neutral, closed loop, accessories off, brake not applied and air conditioning off.

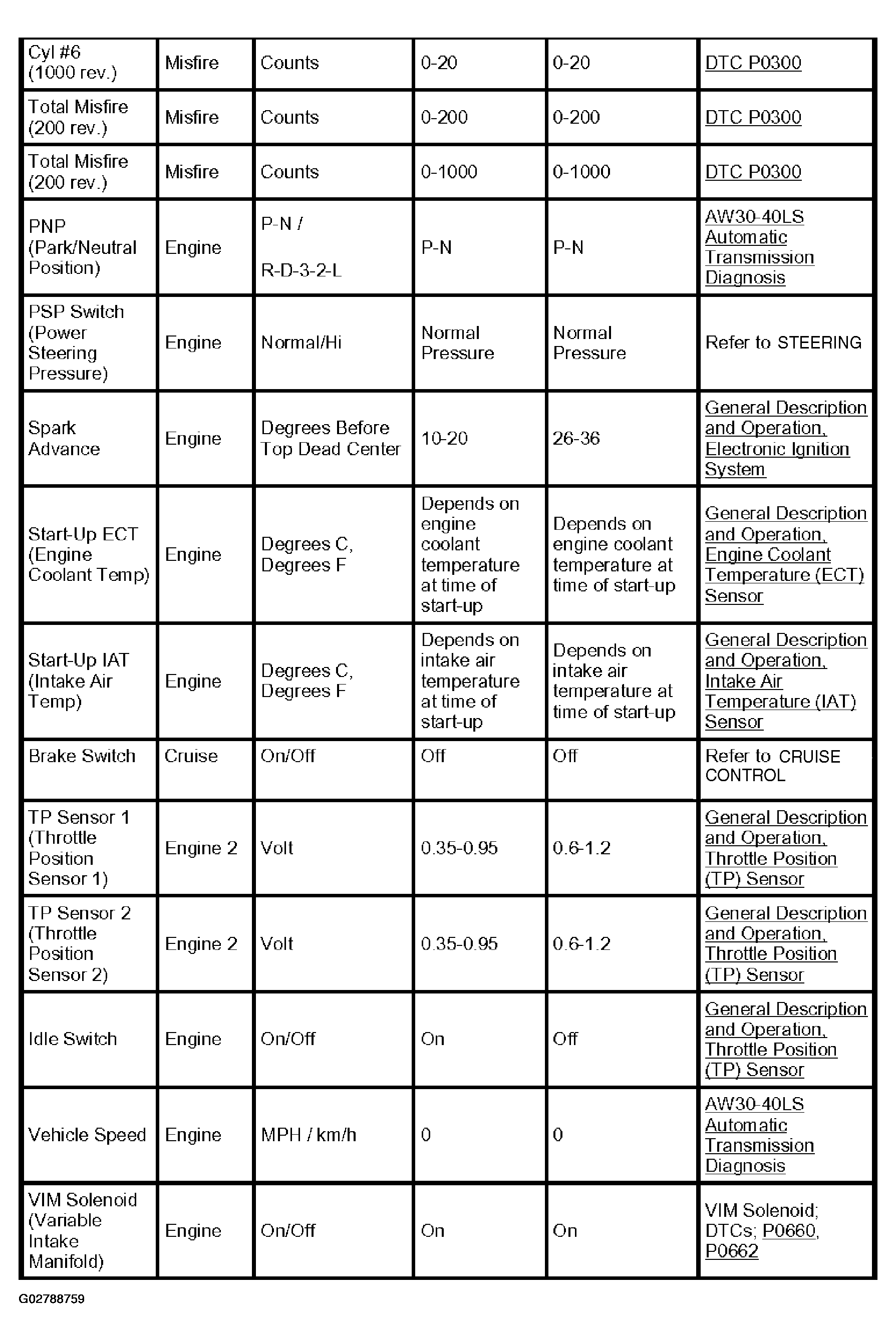

Fig 1: Identifying Typical Scan Data Of 3.5L V-6 Engine (Automatic Transmission) (1 Of 6)

Courtesy of ISUZU MOTOR CO.

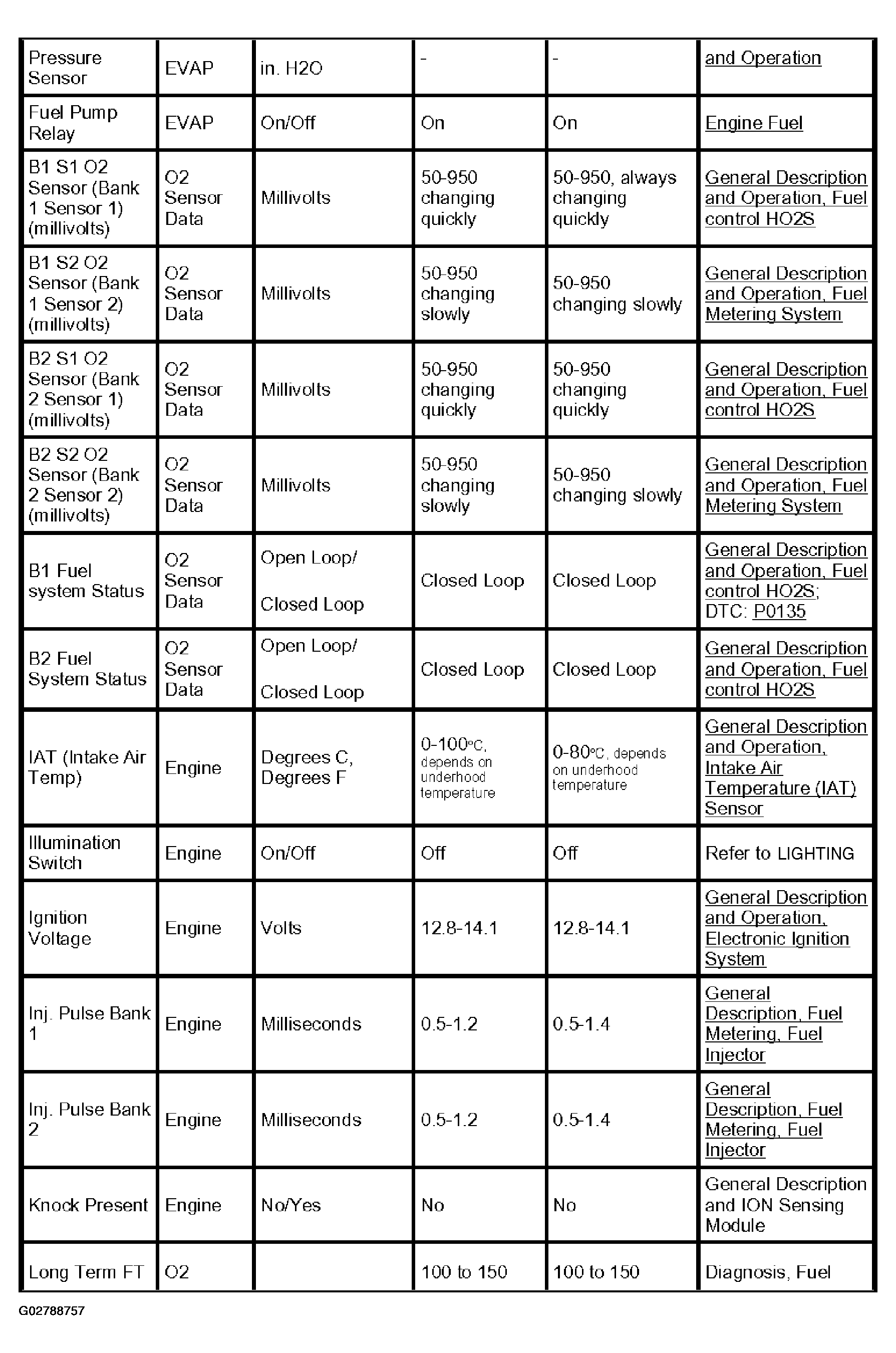

Fig 2: Identifying Typical Scan Data Of 3.5L V-6 Engine (Automatic Transmission) (2 Of 6)

Courtesy of ISUZU MOTOR CO.

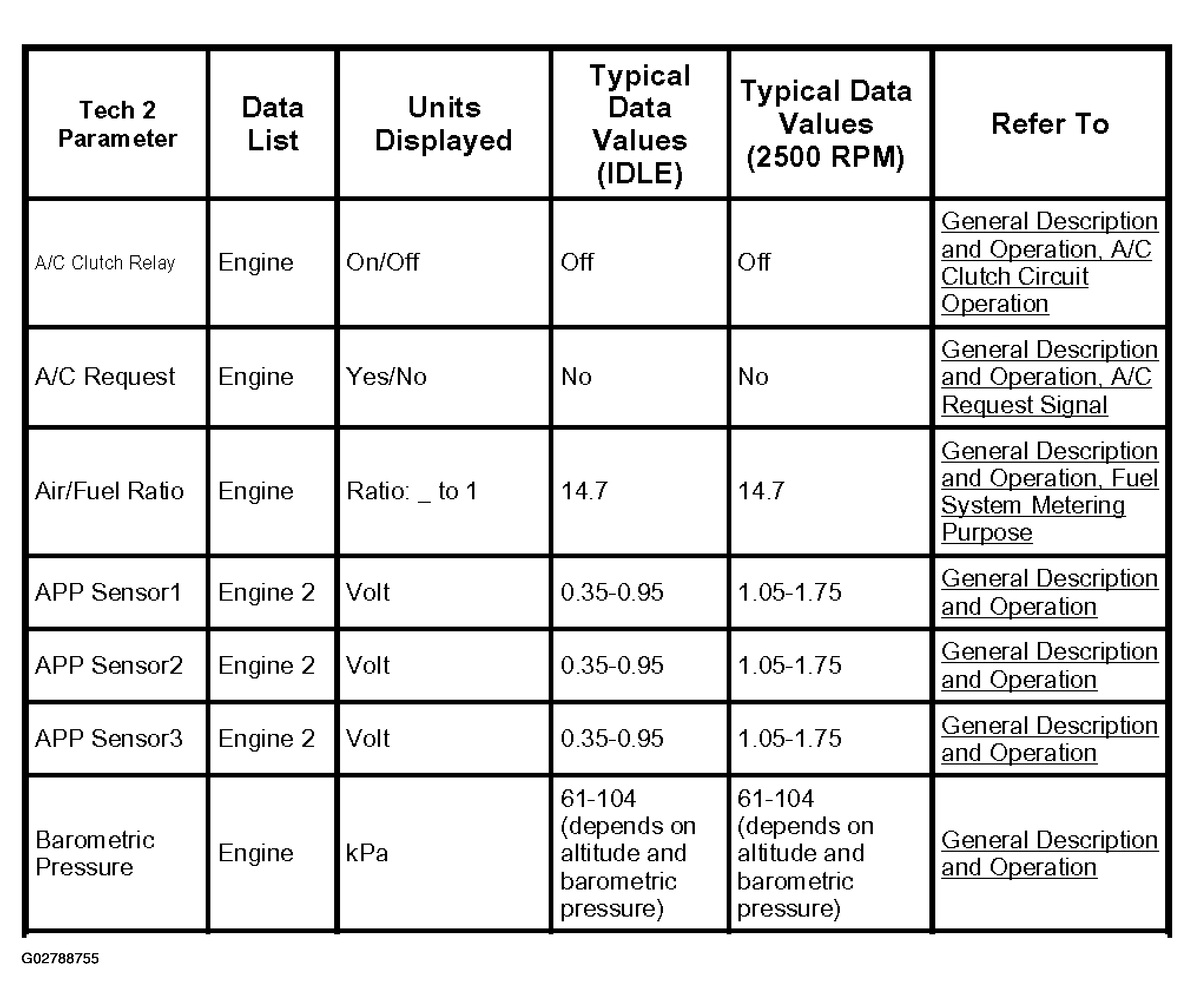

Fig 3: Identifying Typical Scan Data Of 3.5L V-6 Engine (Automatic Transmission) (3 Of 6)

Courtesy of ISUZU MOTOR CO.

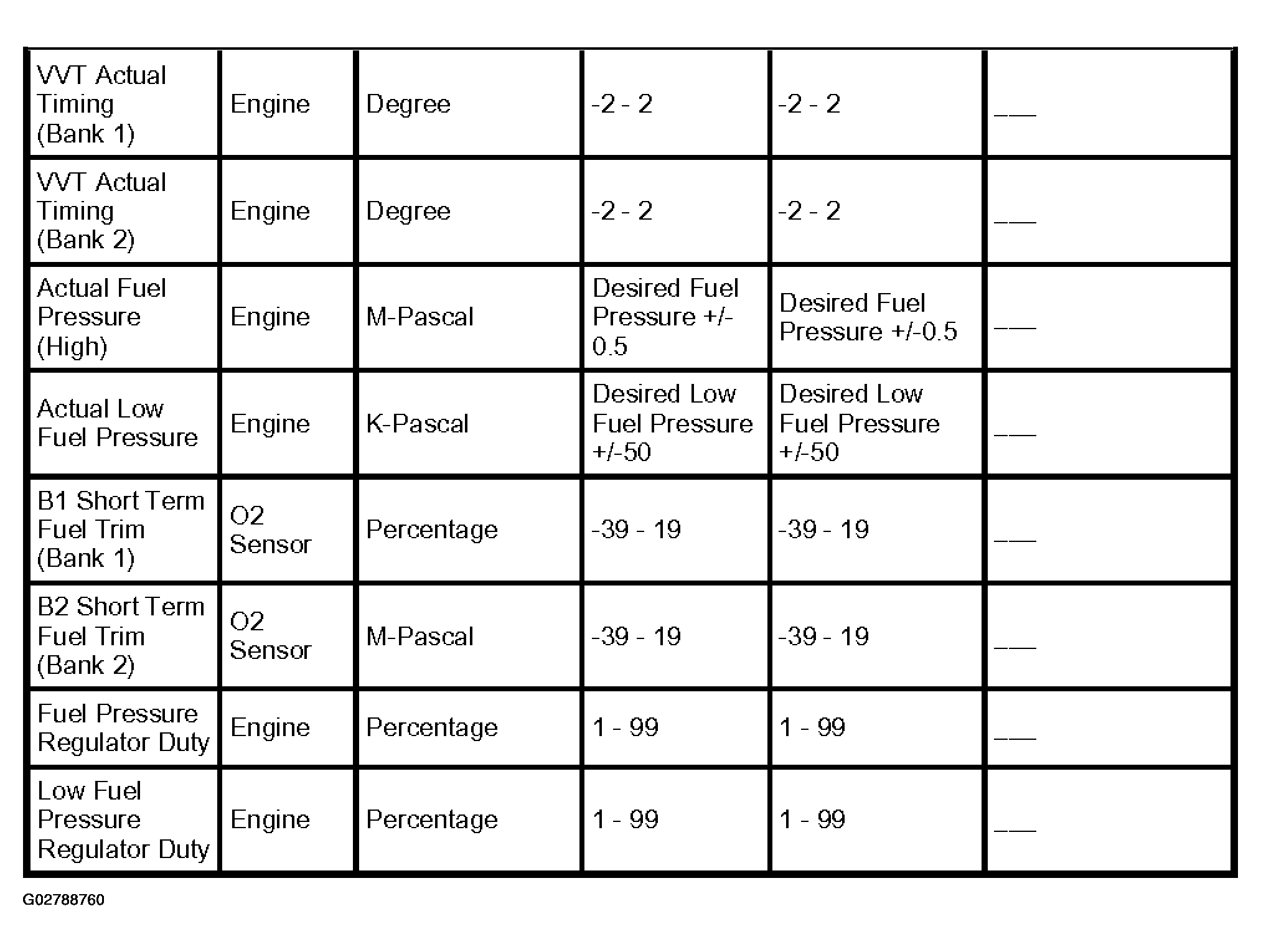

Fig 4: Identifying Typical Scan Data Of 3.5L V-6 Engine (Automatic Transmission) (4 Of 6)

Courtesy of ISUZU MOTOR CO.

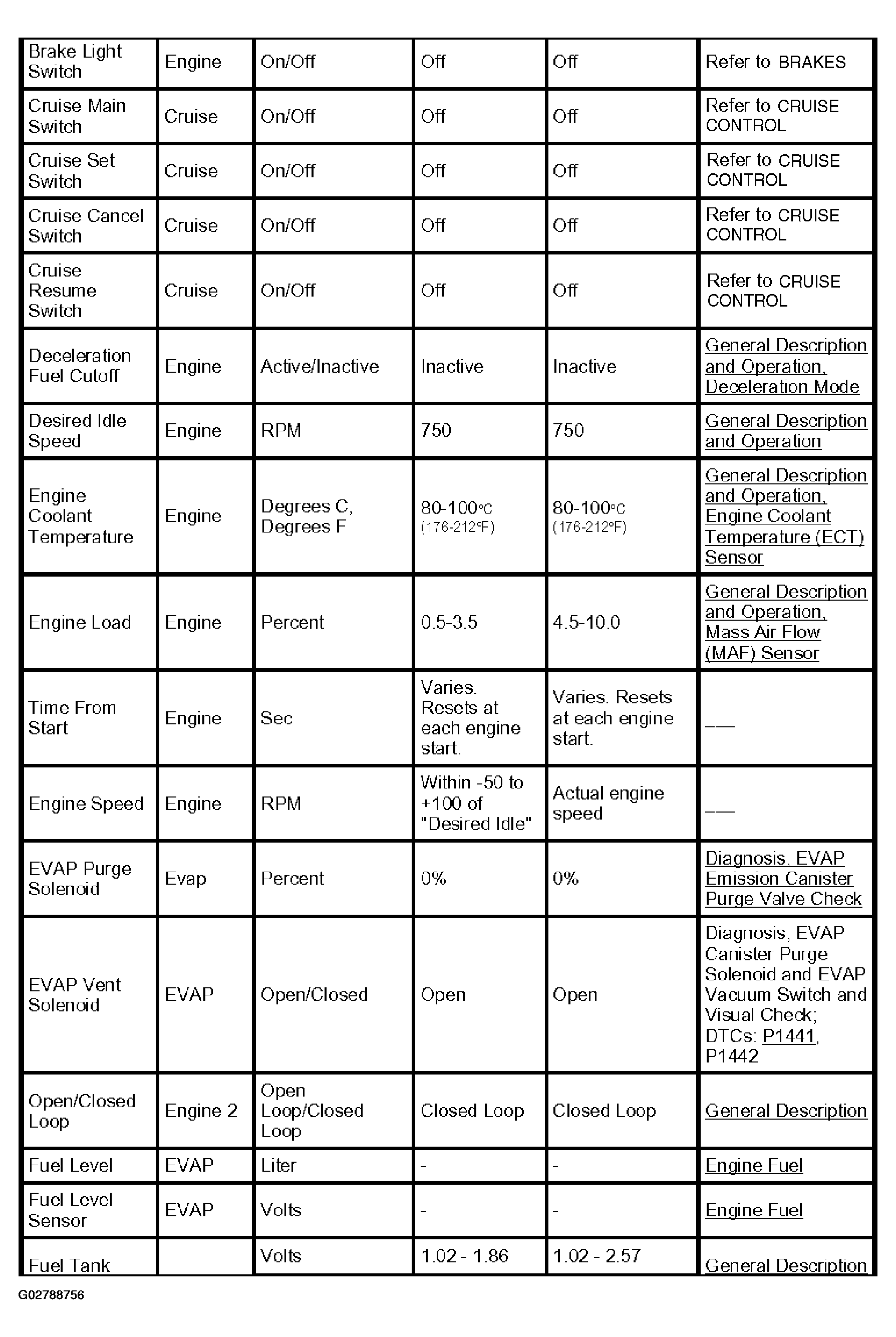

Fig 5: Identifying Typical Scan Data Of 3.5L V-6 Engine (Automatic Transmission) (5 Of 6)

Courtesy of ISUZU MOTOR CO.

Fig 6: Identifying Typical Scan Data Of 3.5L V-6 Engine (Automatic Transmission) (6 Of 6)

Courtesy of ISUZU MOTOR CO.
