ATF Temperature Sensor: Inspection

1. Disconnect the front side ATF cooler pipe from the elbow and remove the elbow.
2. Remove the ATF temperature sensor from the transmission case.
3. Place the ATF temperature sensor in a container of ATF.

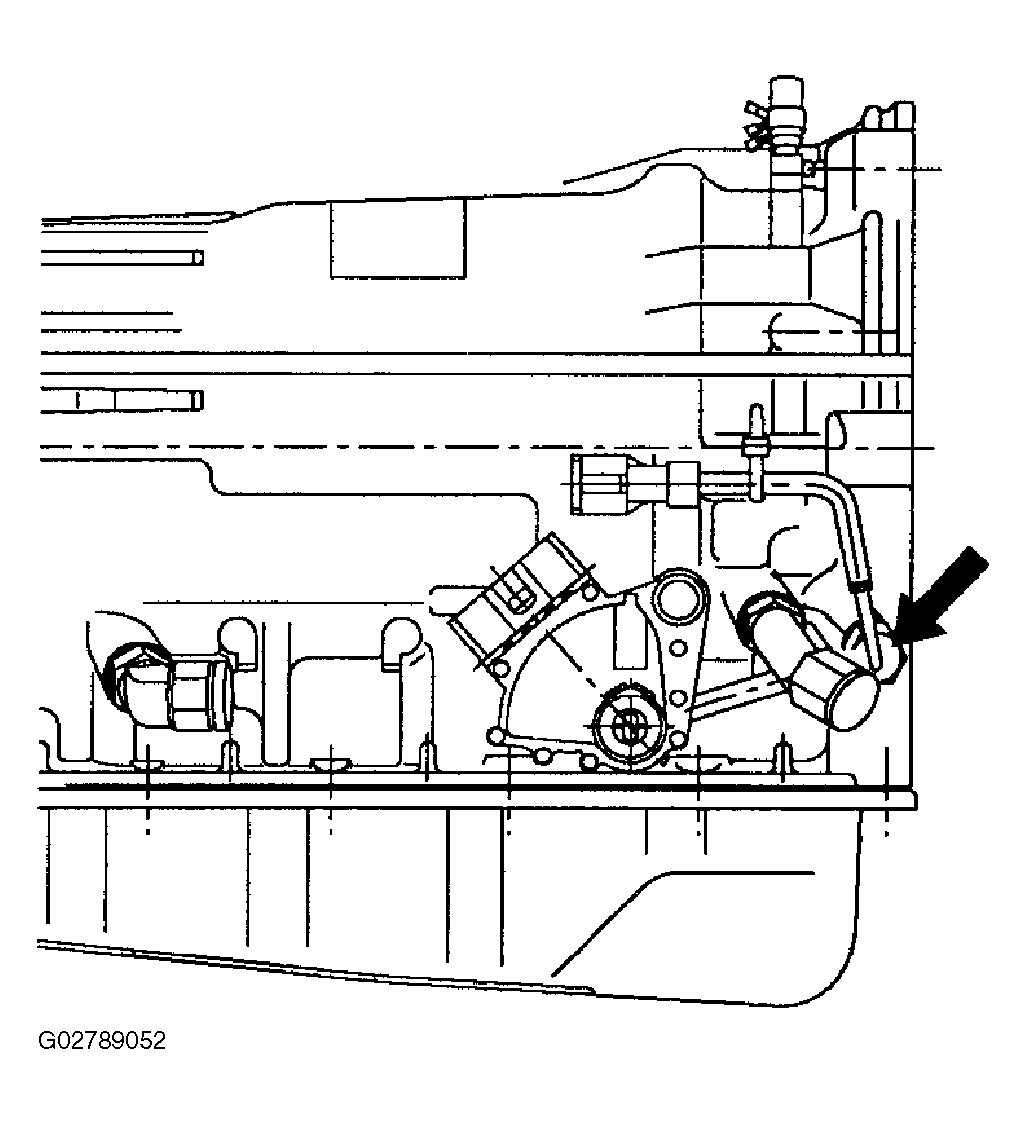

   Fig 1: Inspecting ATF Temperature Sensor

   Courtesy of ISUZU MOTOR CO.
4. Measure the resistance between each terminals, while warming ATF.

   Resistance:  0.5 - 30 k Ω (at 0°C - 120°C)

5. If either of the measured values exceeds the specified value, replace the ATF temperature sensor.

Torque:  15 N.m (11 lb ft)
