Troubleshooting Chart

Numbers are arranged in order of probability.

Perform inspections starting with number one and working up.

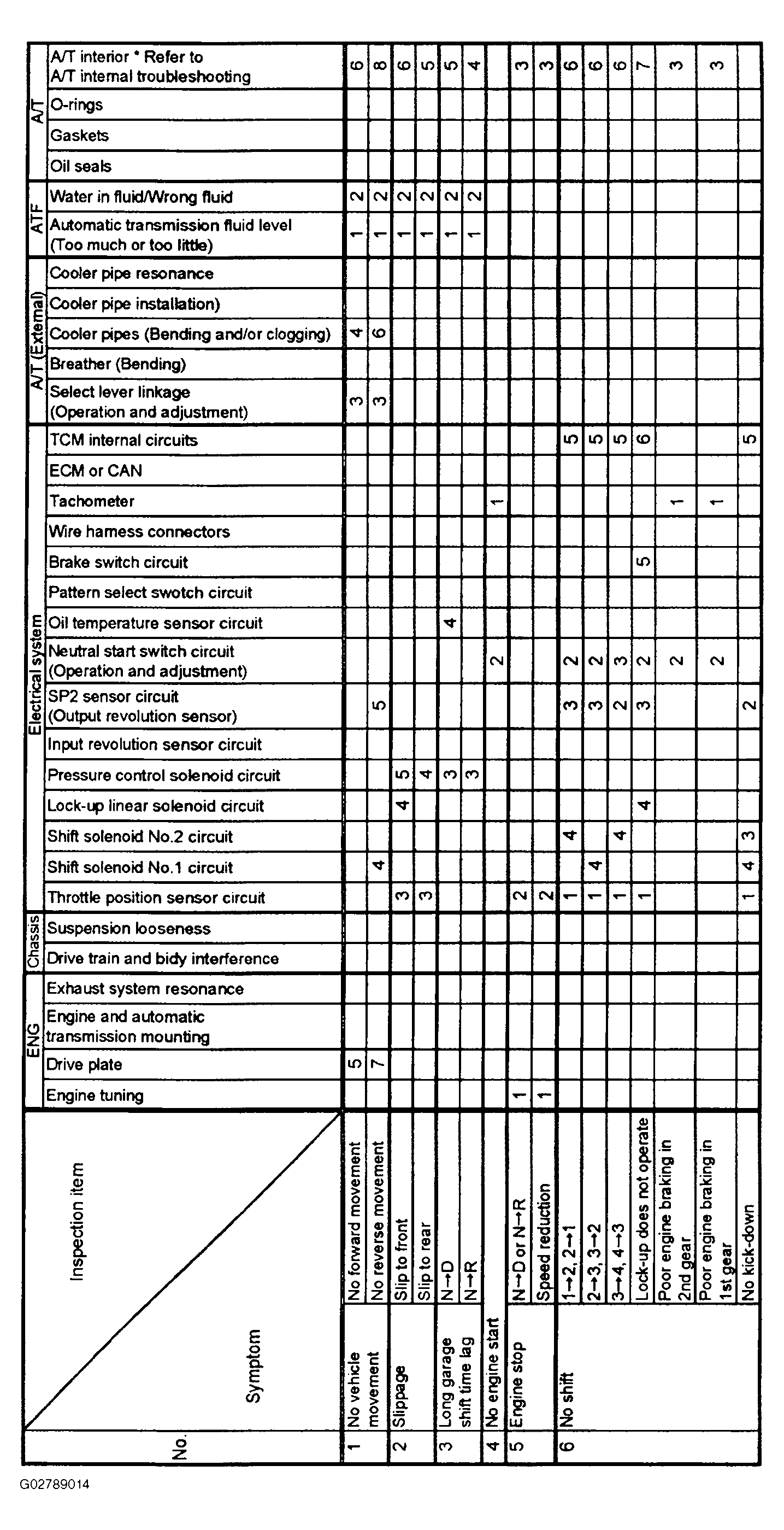

Fig 1: Identifying On-Vehicle Troubleshooting Chart (1 Of 4)

Courtesy of ISUZU MOTOR CO.

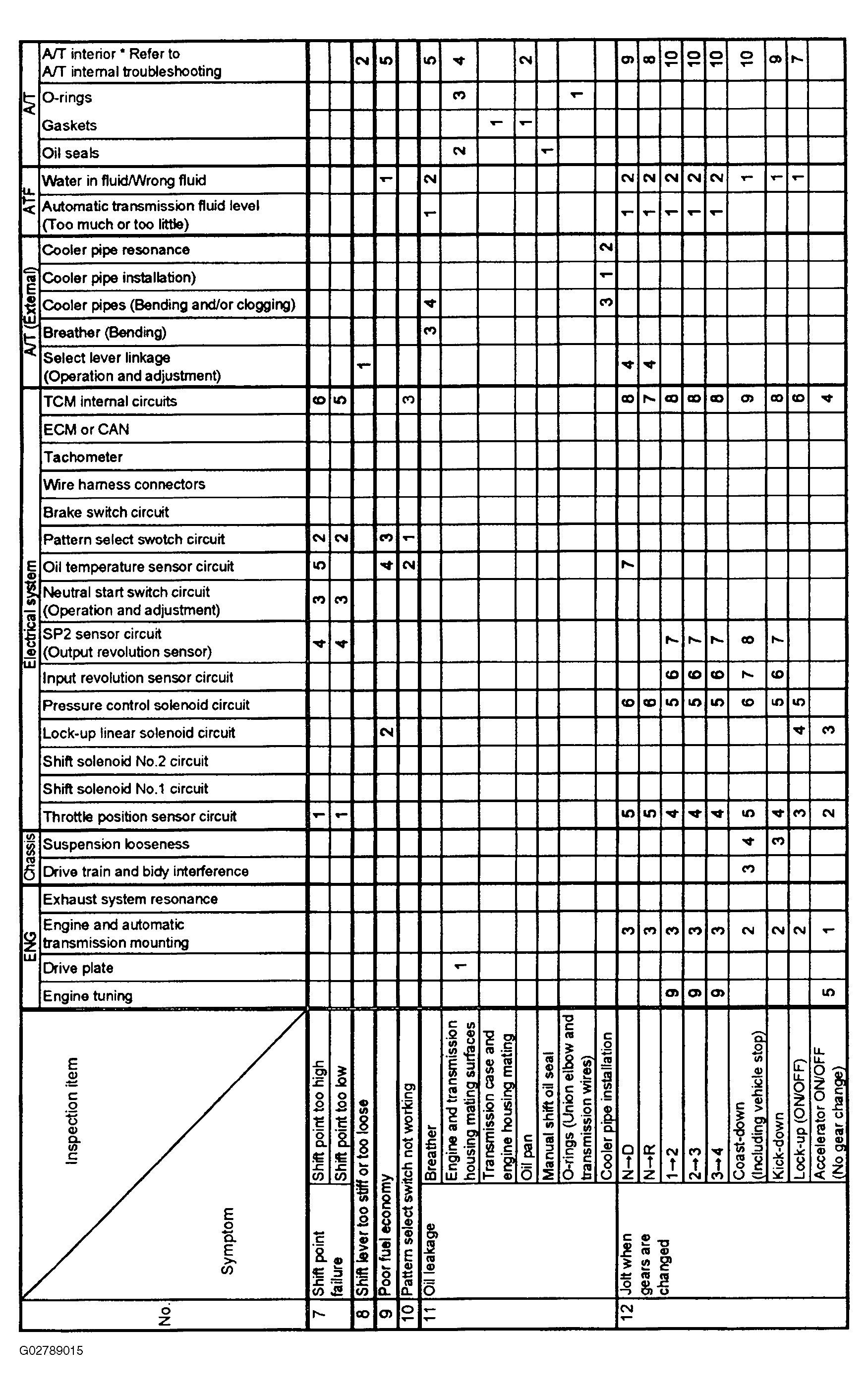

Fig 2: Identifying On-Vehicle Troubleshooting Chart (2 Of 4)

Courtesy of ISUZU MOTOR CO.

Fig 3: Identifying On-Vehicle Troubleshooting Chart (3 Of 4)

Courtesy of ISUZU MOTOR CO.

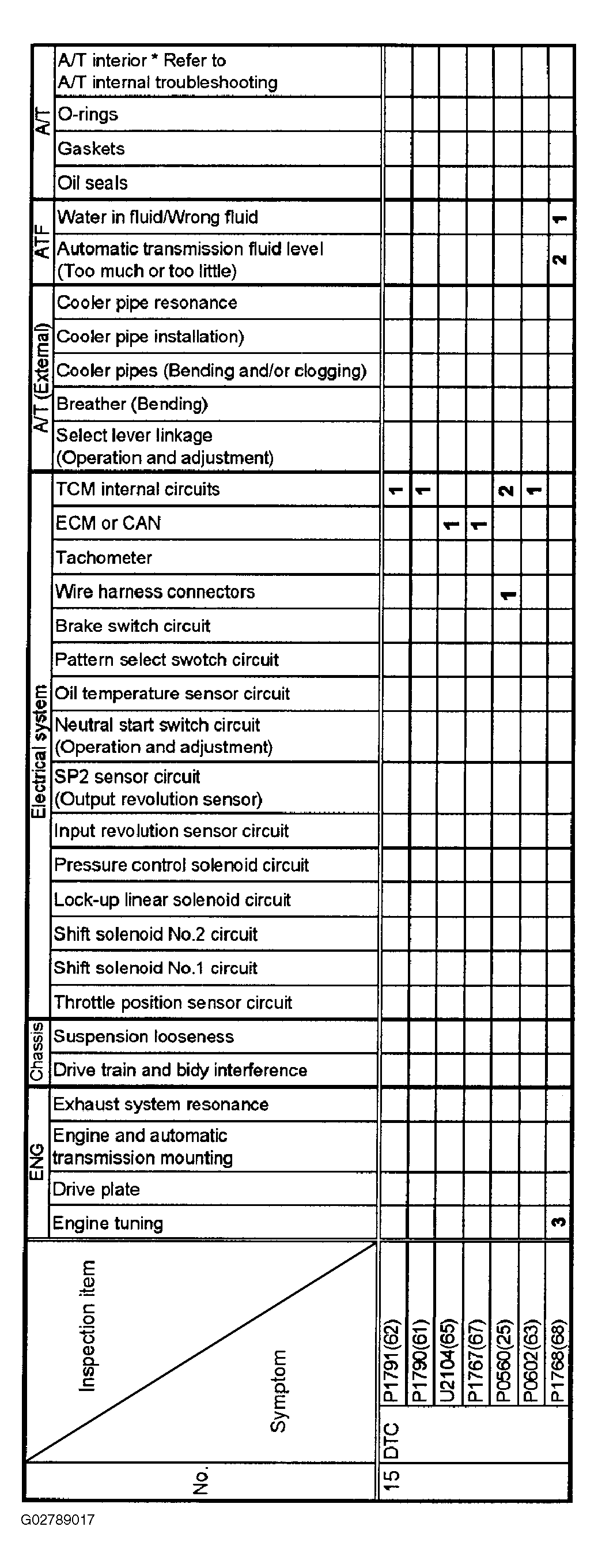

Fig 4: Identifying On-Vehicle Troubleshooting Chart (4 Of 4)

Courtesy of ISUZU MOTOR CO.

Fig 5: Identifying Unit Troubleshooting Chart (1 Of 2)

Courtesy of ISUZU MOTOR CO.

Fig 6: Identifying Unit Troubleshooting Chart (2 Of 2)

Courtesy of ISUZU MOTOR CO.
