Disassembled View

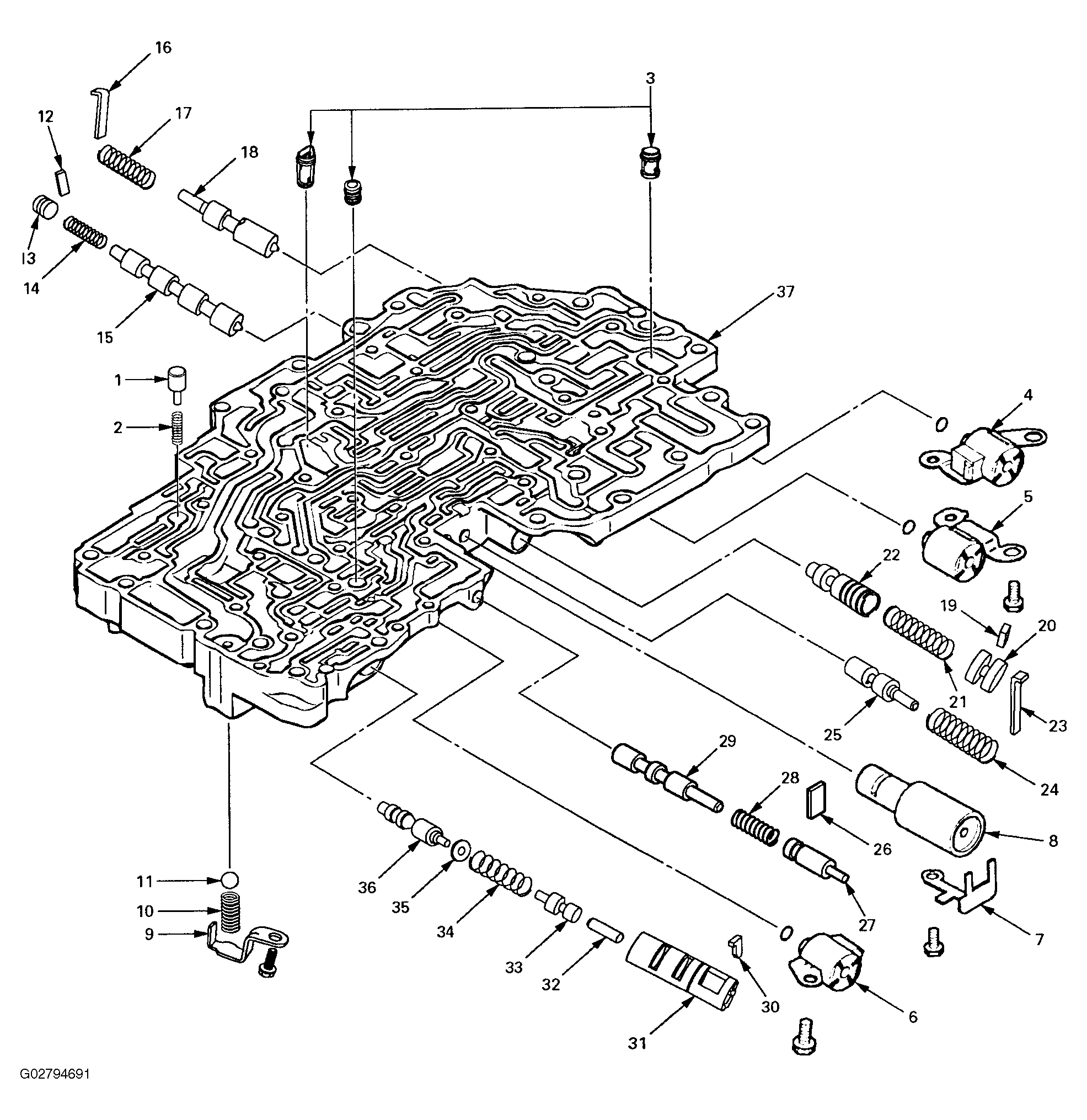

Fig 1: Disassembled View Of Lower Valve Body (1 Of 2)
G02794691Courtesy of ISUZU MOTOR CO.

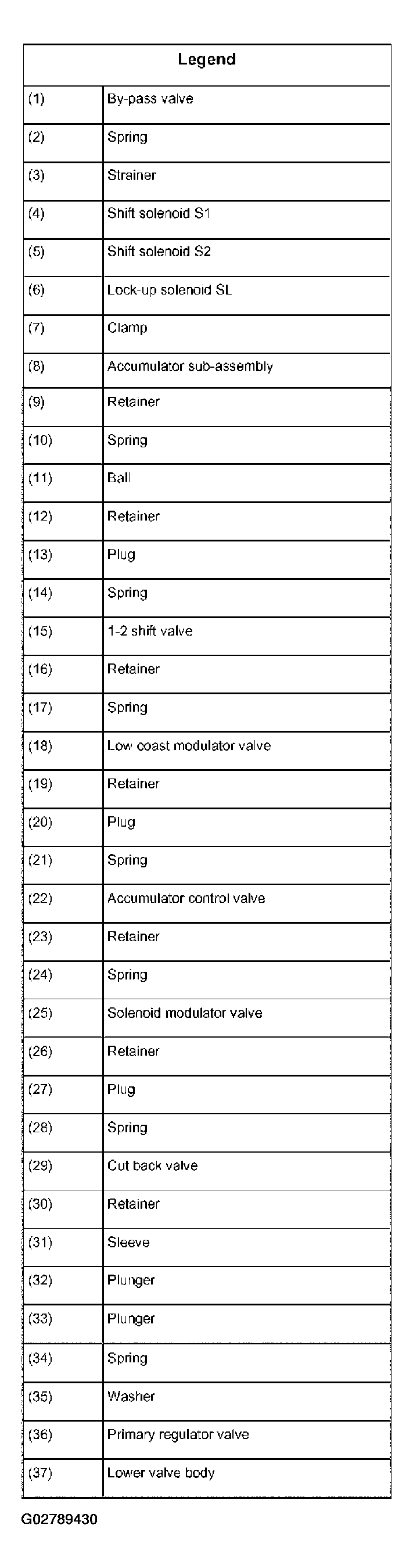

Fig 2: Disassembled View Of Lower Valve Body (2 Of 2)
G02789430Courtesy of ISUZU MOTOR CO.
