Torque Specifications

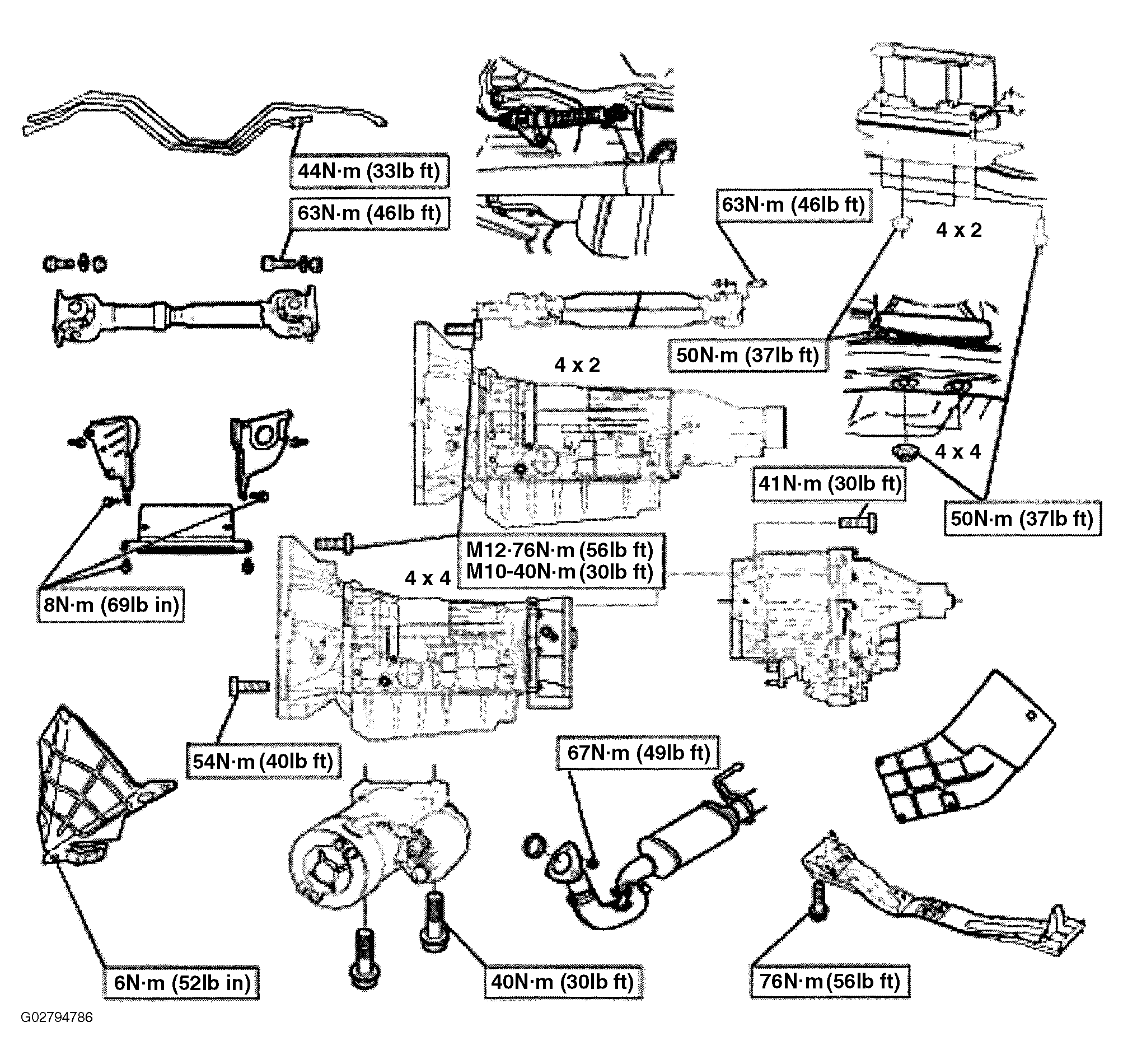

Fig 1: Torque Specifications Table (1 Of 3)

G02794786

Courtesy of ISUZU MOTOR CO.

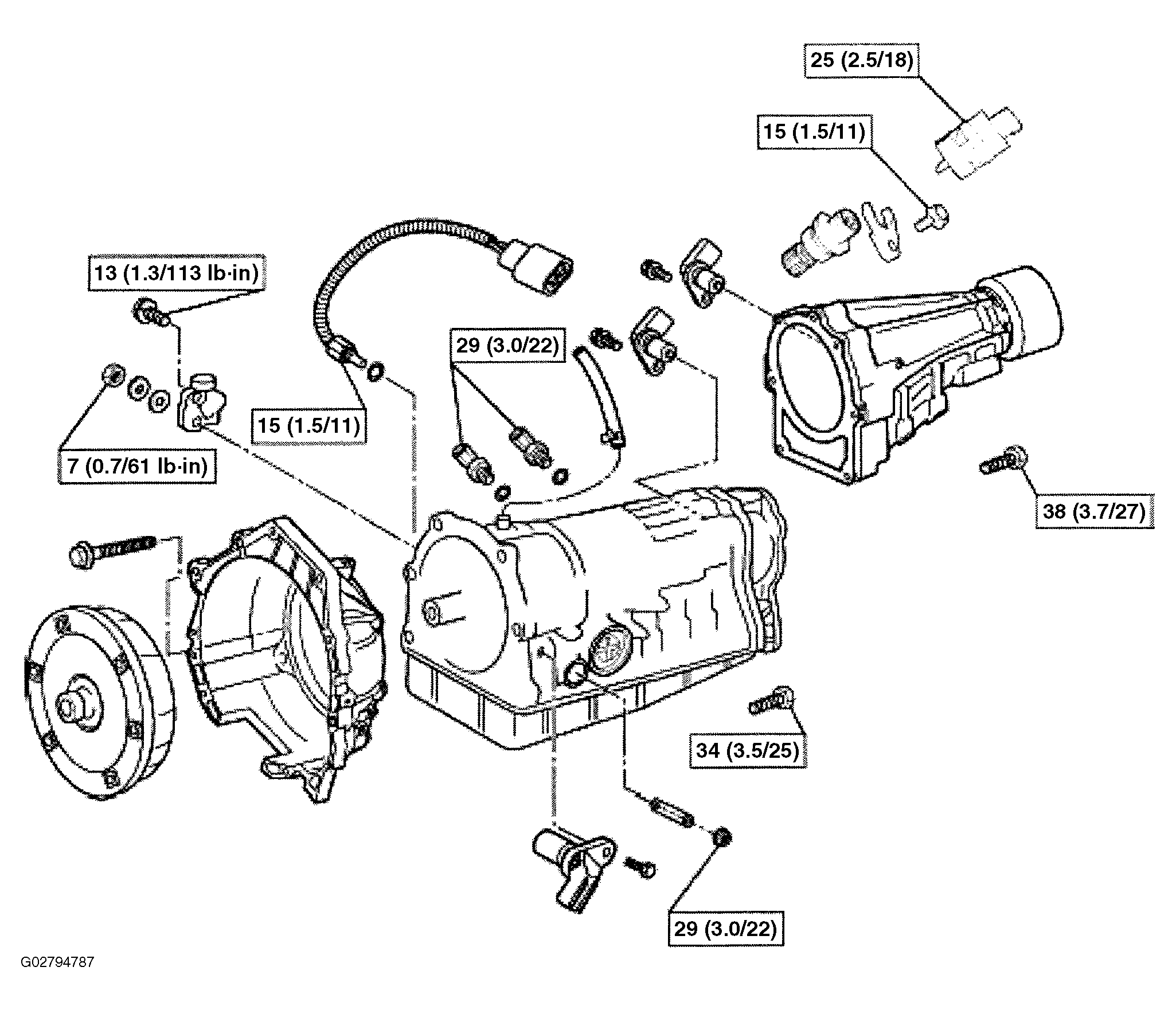

Fig 2: Torque Specifications Table (2 Of 3)

G02794787

Courtesy of ISUZU MOTOR CO.

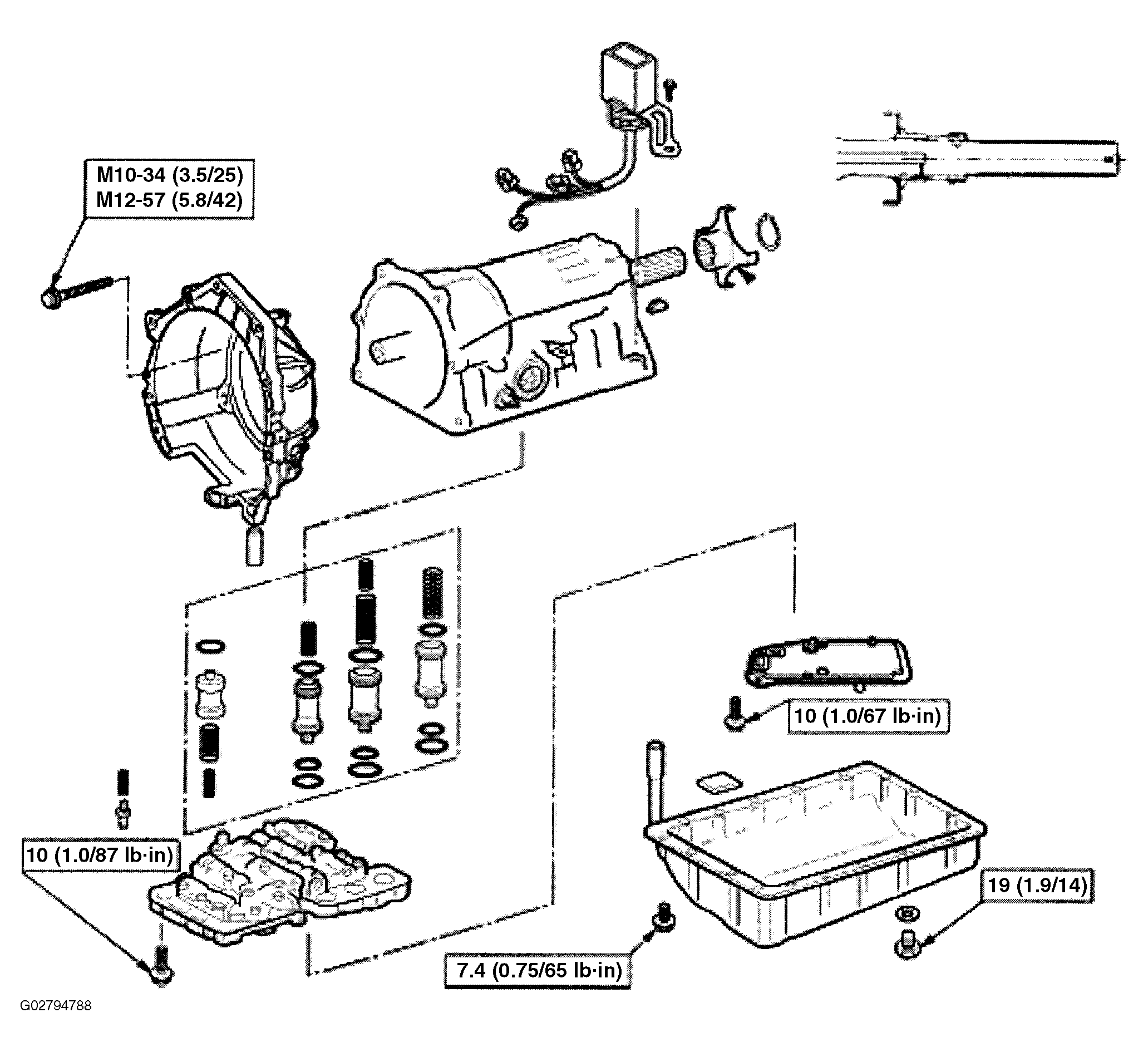

Fig 3: Torque Specifications Table (3 Of 3)

G02794788

Courtesy of ISUZU MOTOR CO.
