Major Components (2): Disassembly

Remove the six bolts and remove the converter housing.

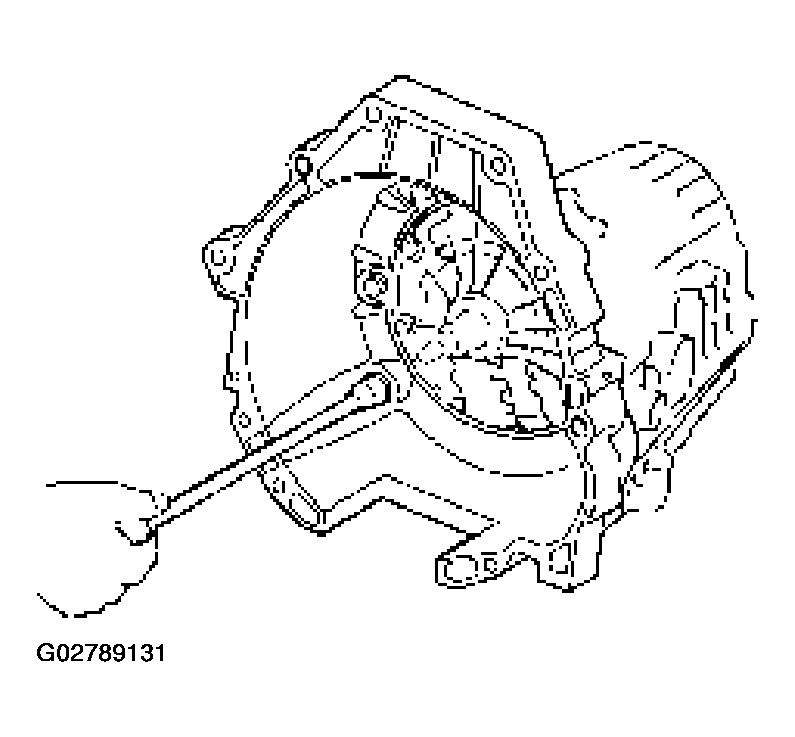

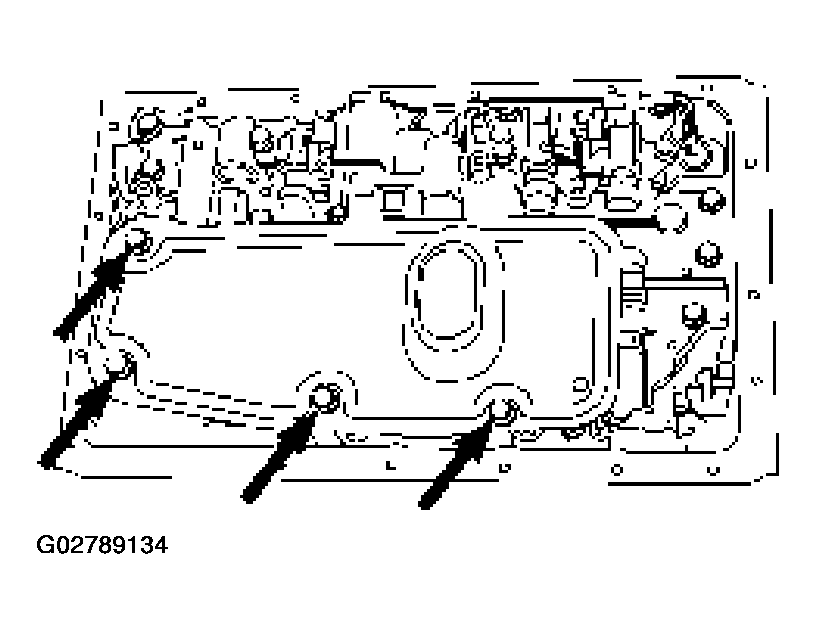

Fig 1: Removing Converter Housing Bolts
Courtesy of ISUZU MOTOR CO.
Remove the oil pan.
NOTE: Do not turn over the transmission as this will contaminate the valve body with foreign materials in the bottom of the oil pan.
- Remove the nineteen bolts.
- Remove oil pan by lifting the transmission case.

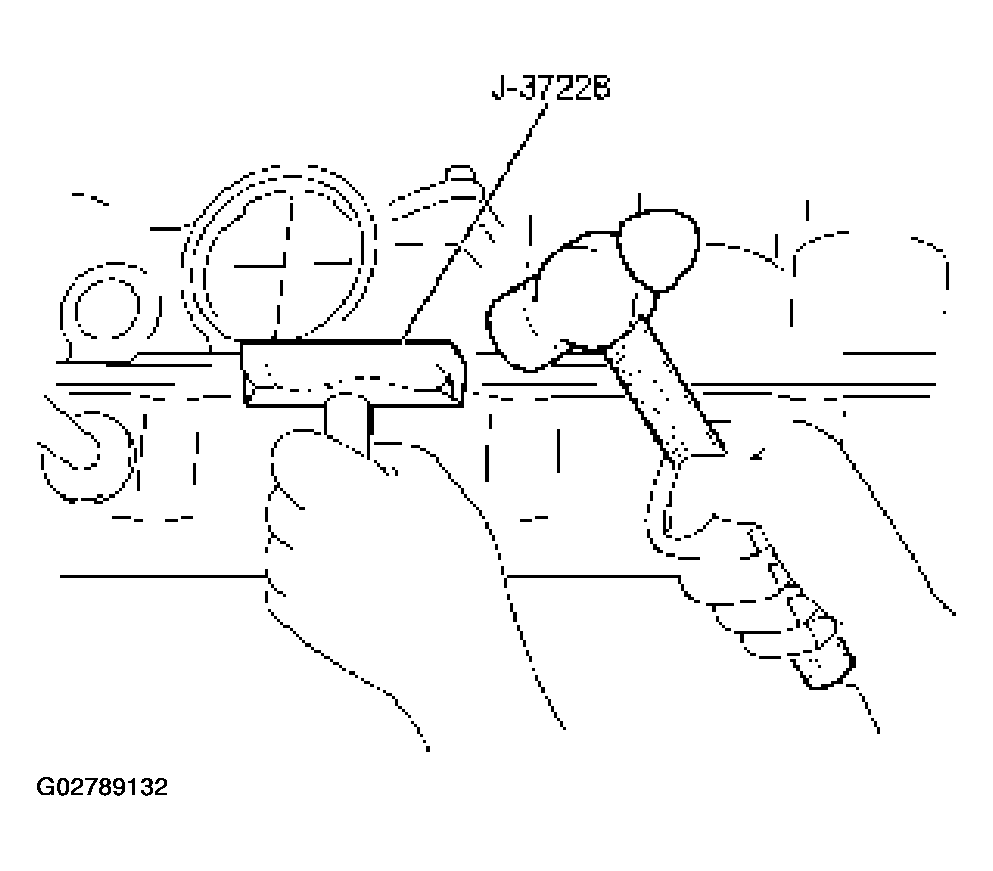

Oil pan seal cutter: J-37228

Fig 2: Removing Oil Pan
Courtesy of ISUZU MOTOR CO.
Examine particles in oil pan.
- Remove the magnet and use it to collect any steel chips.
- Look carefully at the chips and particles in the oil pan and on the magnet to anticipate what type of wear you will find in the transmission:
  Steel (magnetic)......bearing, gear and clutch plate wear

  Brass (non-magnetic)... bushing wear

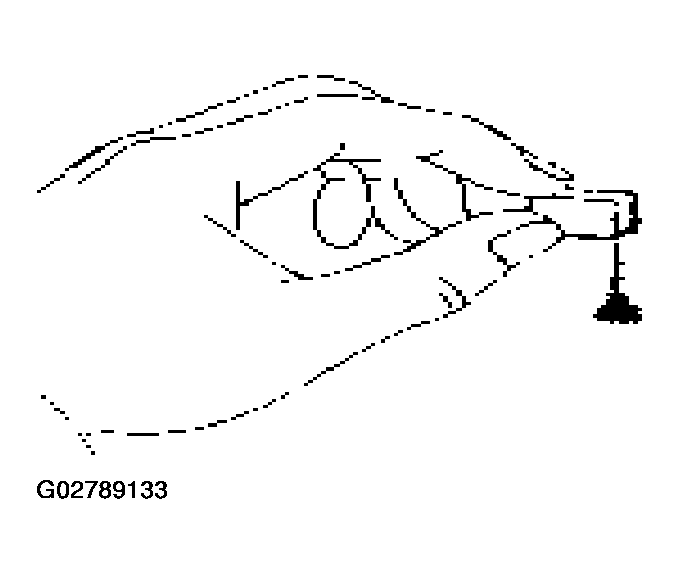

Fig 3: Removing Magnet & Collecting Steel Chips
Courtesy of ISUZU MOTOR CO.
Remove the oil strainer assembly.
Remove four bolts holding the oil strainer.

Fig 4: Removing Oil Strainer Assembly
Courtesy of ISUZU MOTOR CO.
Remove the valve body.

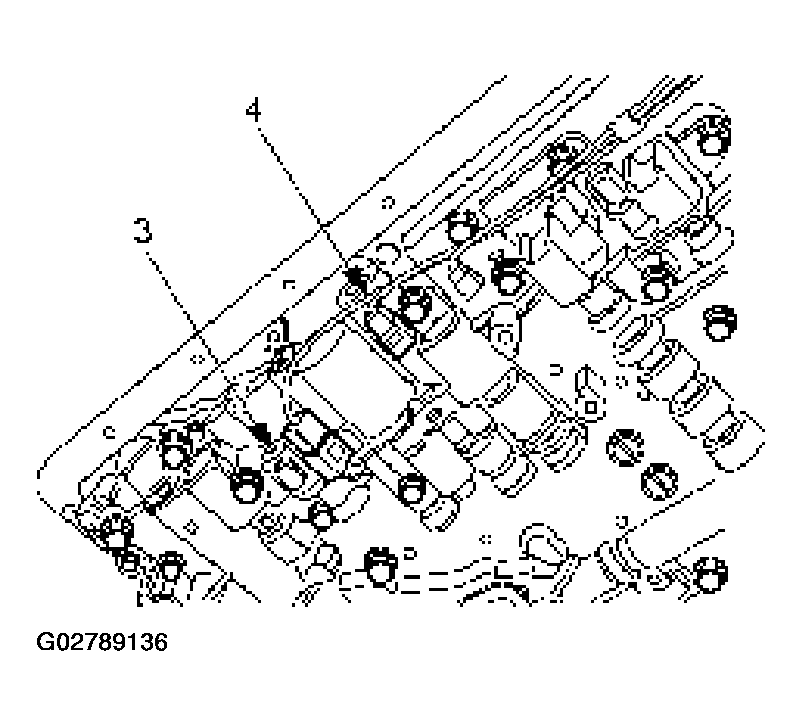

- Disconnect the connectors from the solenoid S1 (1), S2 (2), lock-up solenoid (3) and pressure control solenoid (4).

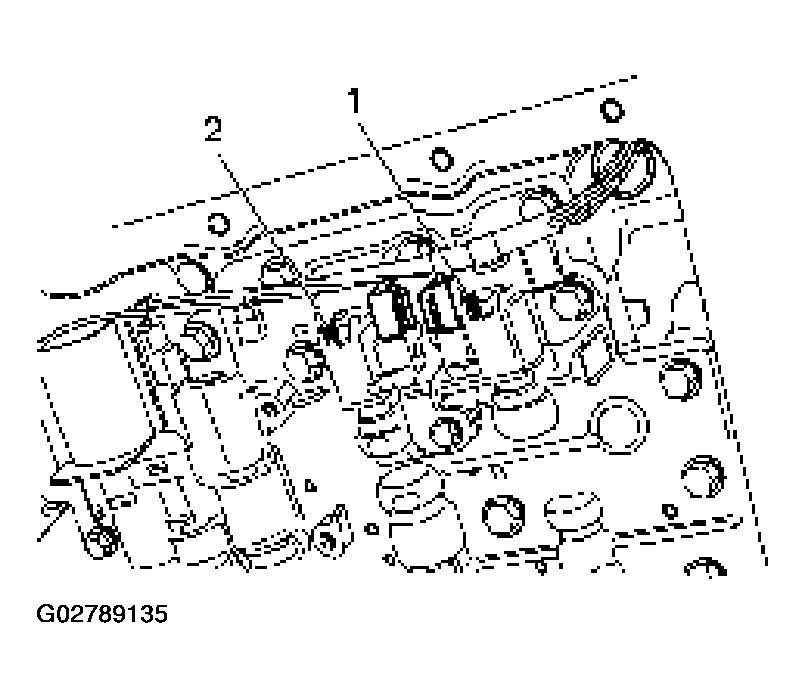

  Fig 5: Disconnecting Connectors From Solenoid
  Courtesy of ISUZU MOTOR CO.

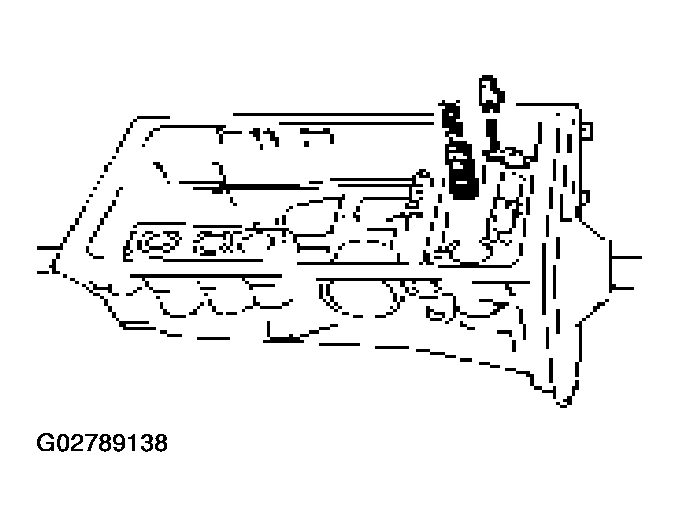

  Fig 6: Disconnecting Pressure Control Solenoid
  Courtesy of ISUZU MOTOR CO.
- Remove the twenty bolts from valve body.

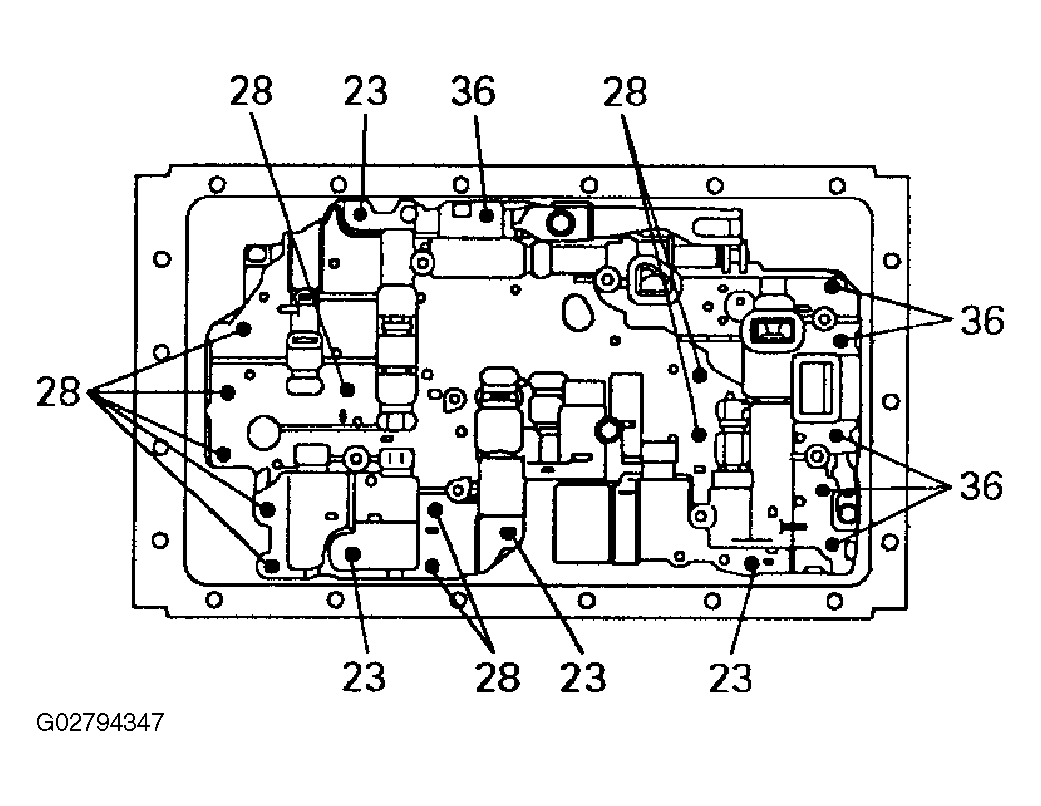

Fig 7: Removing Twenty Bolts From Valve Body
Courtesy of ISUZU MOTOR CO.
Remove the check valve and spring.
Remove two springs from C-0 accumulator piston.

Fig 8: Removing Springs From C-0 Accumulator Piston
Courtesy of ISUZU MOTOR CO.
Remove the accumulator piston (B-2).
Remove the accumulator piston (C-2).
- Remove accumulator pistons and springs from transmission case.

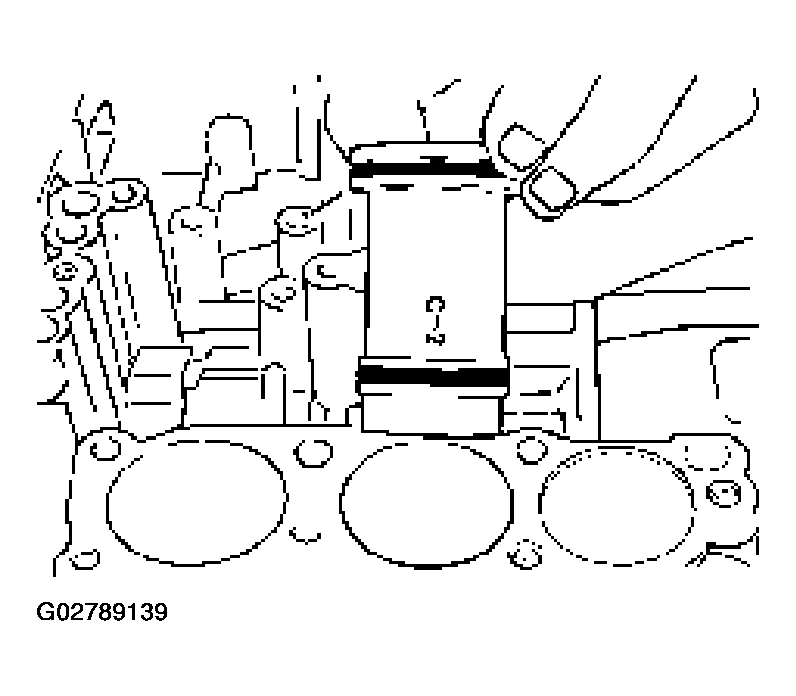

Fig 9: Removing Accumulator Pistons
Courtesy of ISUZU MOTOR CO.

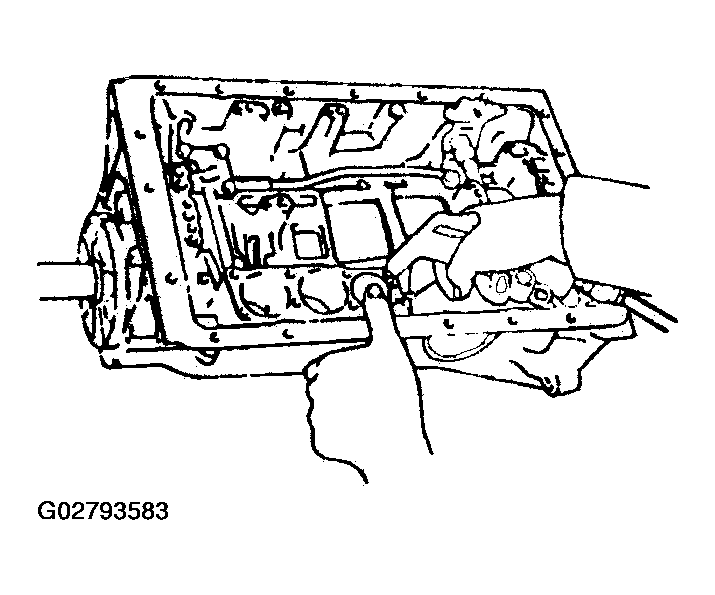

Applying compressed air to the oil hole, remove the B-0 accumulator piston and spring.

Fig 10: Applying Compressed Air To Oil Hole
Courtesy of ISUZU MOTOR CO.

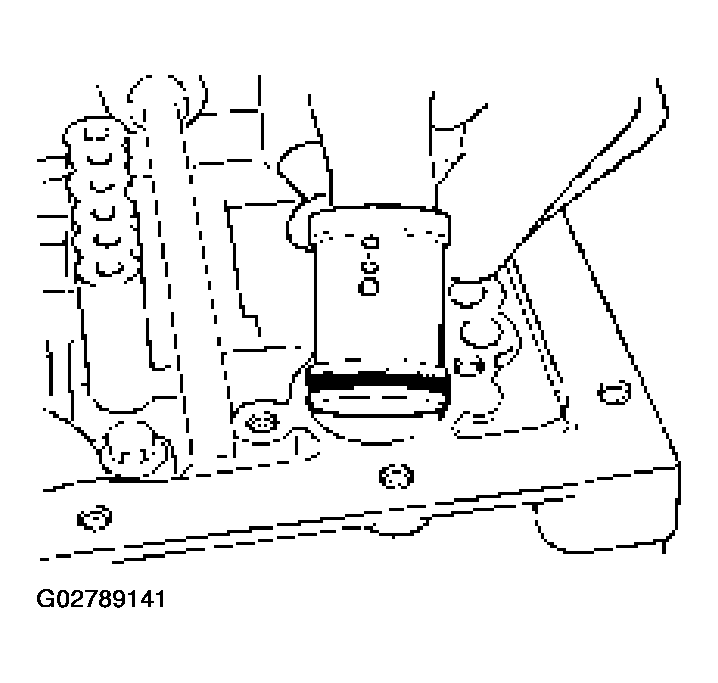

Remove the C-0 accumulator piston.

Fig 11: Removing C-0 Accumulator Piston
Courtesy of ISUZU MOTOR CO.
Remove the second brake drum gasket.
Remove the solenoid wiring.
- Turn over transmission, remove the solenoid wiring stopper plate from the case.
- Pull the wiring out of the transmission case.
Remove the snap ring, rotor and key (4x4).
- Remove the snap ring from the output shaft.
- Remove the rotor and key.

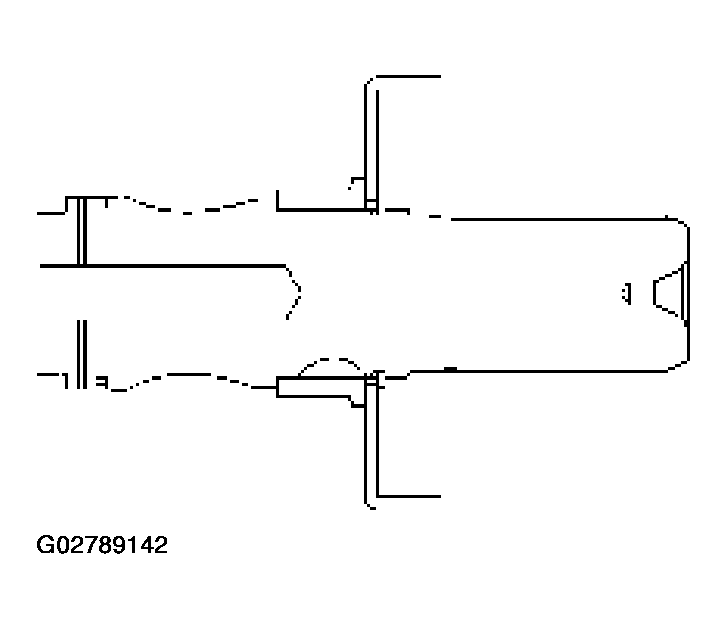

Fig 12: Removing Snap Ring (4x4)
Courtesy of ISUZU MOTOR CO.
Remove the snap ring, speedometer sensor drive gear and ball (4x2).
- Remove the snap ring from the output shaft.
- Remove the speedometer sensor drive gear, and ball.
Remove the spacer, rotor, key and snap ring (4x2).
- Remove the spacer, rotor and key.
- Remove the snap ring from the output shaft.

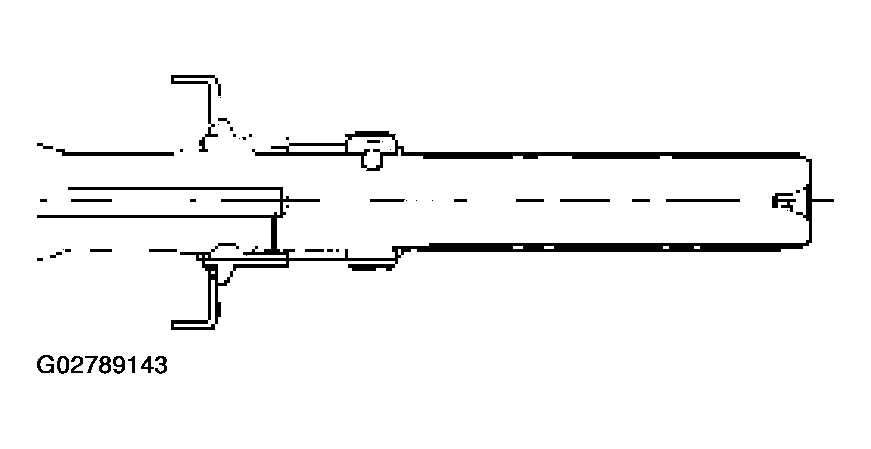

Fig 13: Removing Snap Ring (4x2)
Courtesy of ISUZU MOTOR CO.
