Neutral Start Switch (Mode Switch): Inspection

With a circuit tester, make a continuity test on the neutral start switch with the moving piece set in each position.

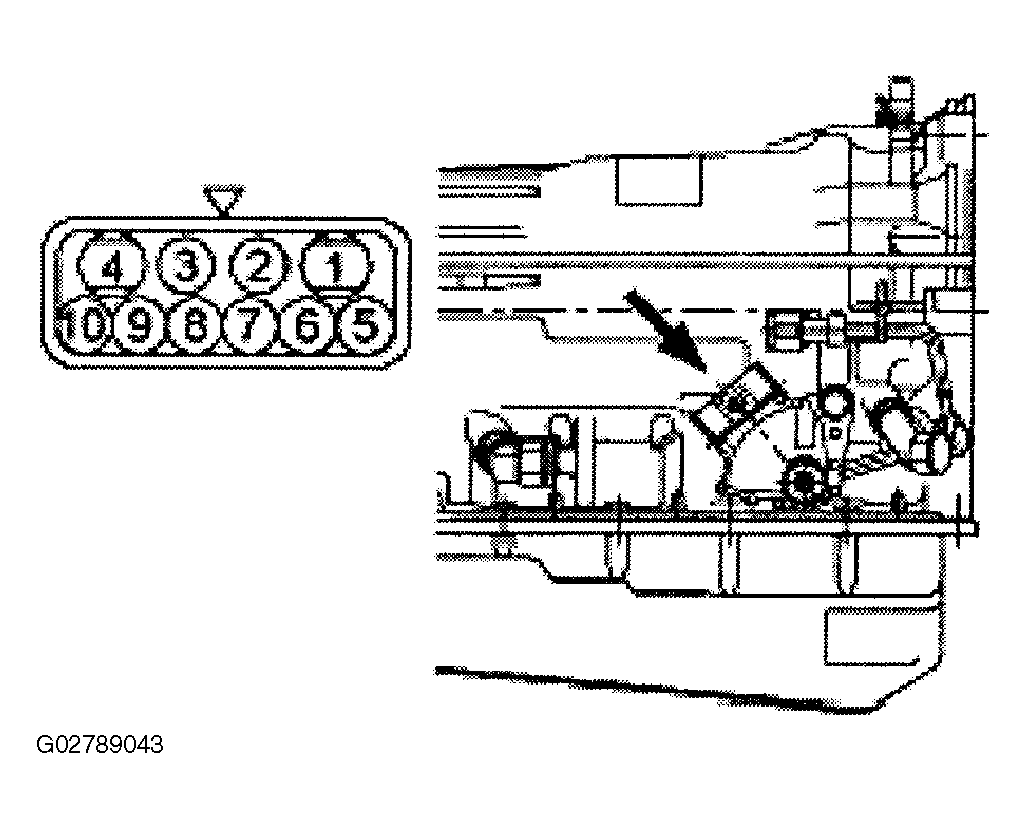

Fig 1: Checking Continuity Between Neutral Start Switch (Mode Switch) (1 Of 2)

Courtesy of ISUZU MOTOR CO.

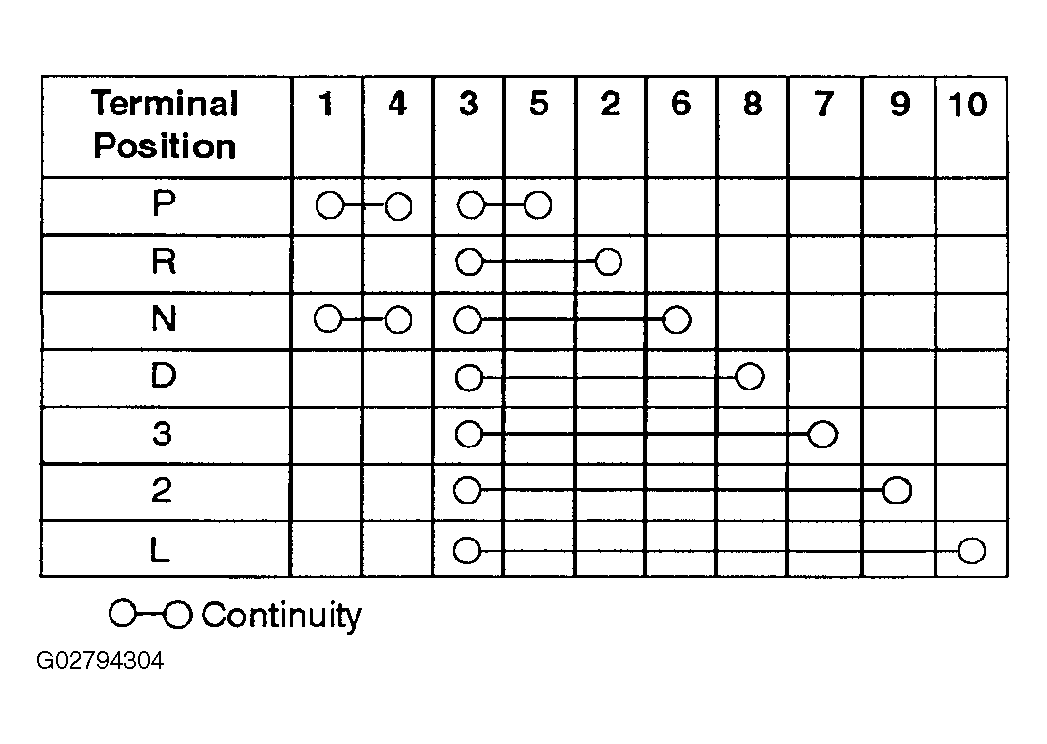

Fig 2: Checking Continuity Between Neutral Start Switch (Mode Switch) (2 Of 2)

Courtesy of ISUZU MOTOR CO.
