Inspection and Repair

Make necessary correction or parts replacement if wear, damage or any abnormal conditions are found through inspection.

1. Check piston return spring

   Using calipers, measure the free length of the return spring.

   Standard length:  17.2 mm (0.677 in)

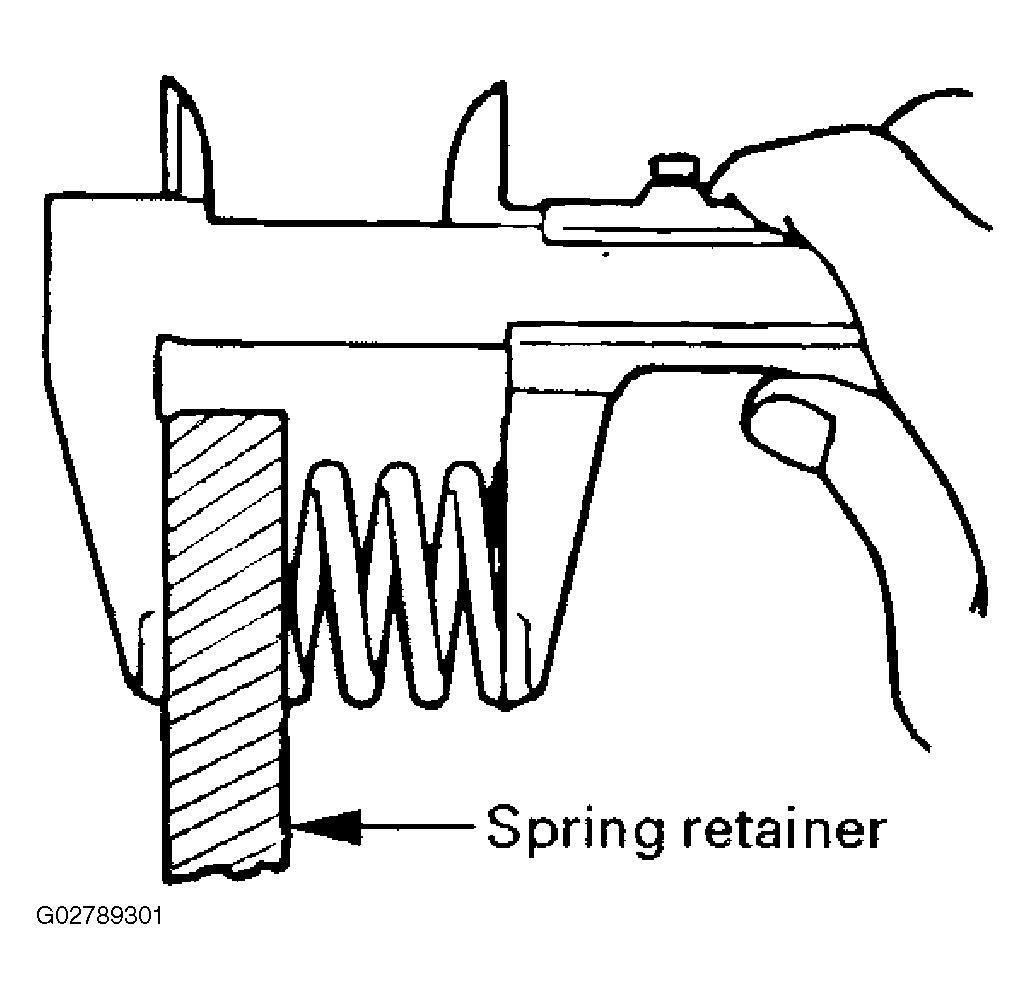

   Fig 1: Measuring Free Length Of Return Spring With Calipers

   Courtesy of ISUZU MOTOR CO.
