OD Support Assembly: Reassembly

Coat the two oil seal rings with ATF.
Contract the oil seals as shown in Fig 1, and install them onto the OD support.

NOTE: Do not spread the ring ends more than necessary.

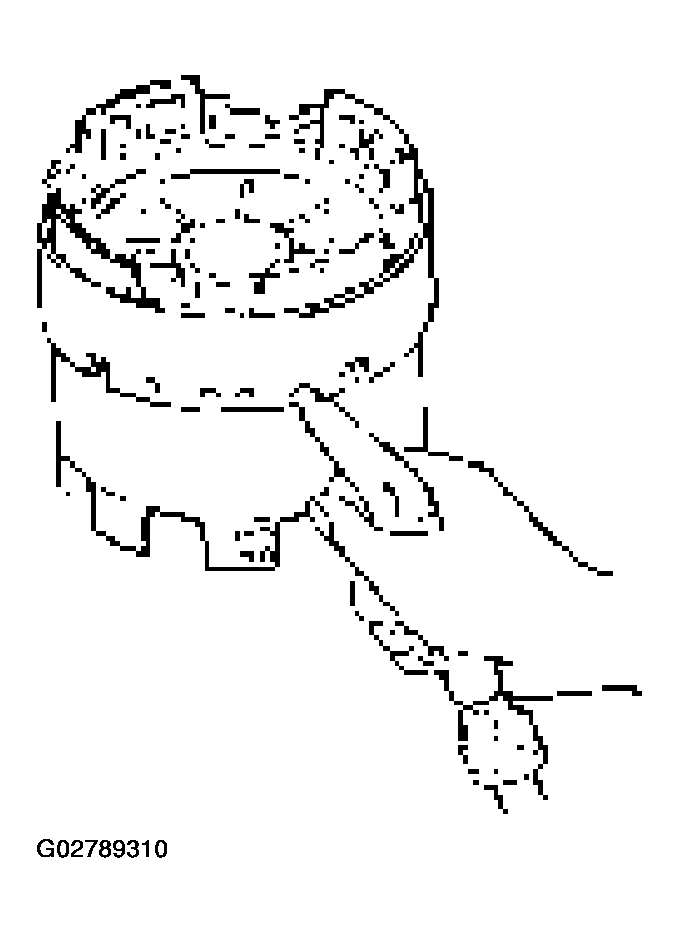

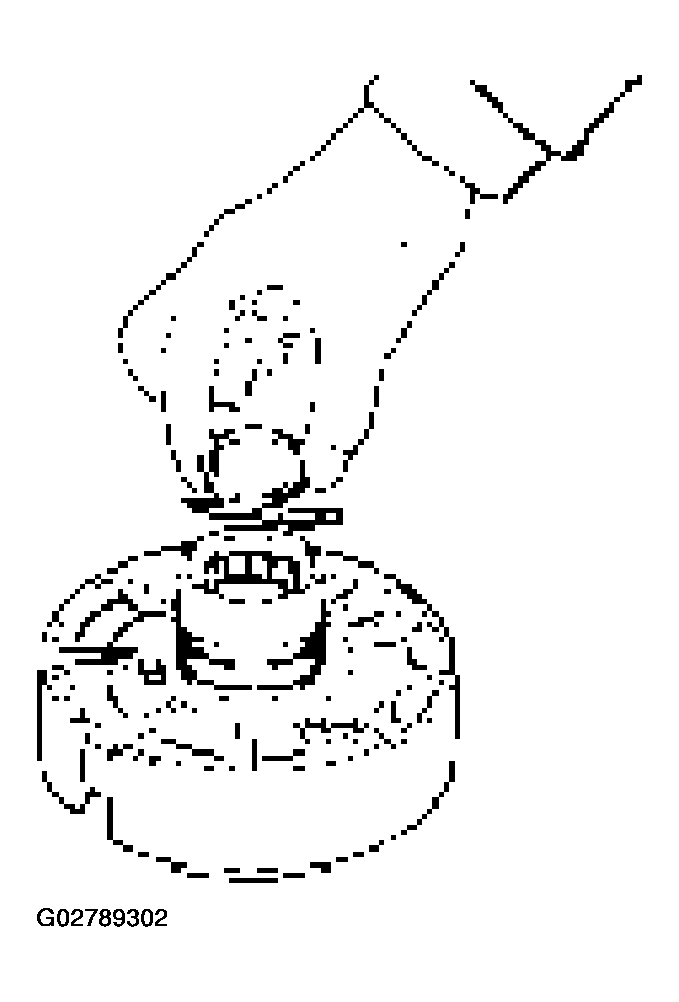

Fig 1: Contracting Oil Seals
Courtesy of ISUZU MOTOR CO.
Coat two new O-rings with ATF and install them on the OD brake piston.
Being careful not to damage the O-rings, press the brake piston into the OD support, using both hands.

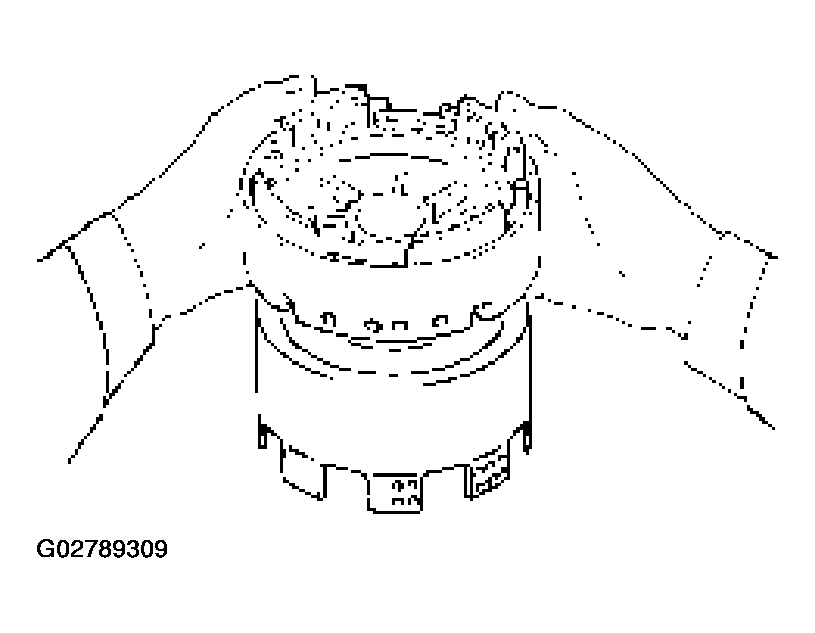

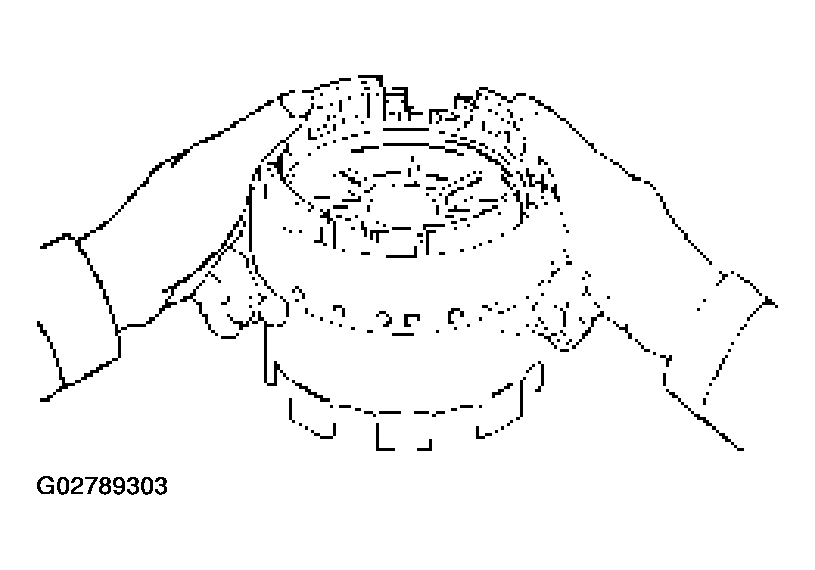

Fig 2: Pressing Brake Piston Into OD Support
Courtesy of ISUZU MOTOR CO.
Install piston return spring.

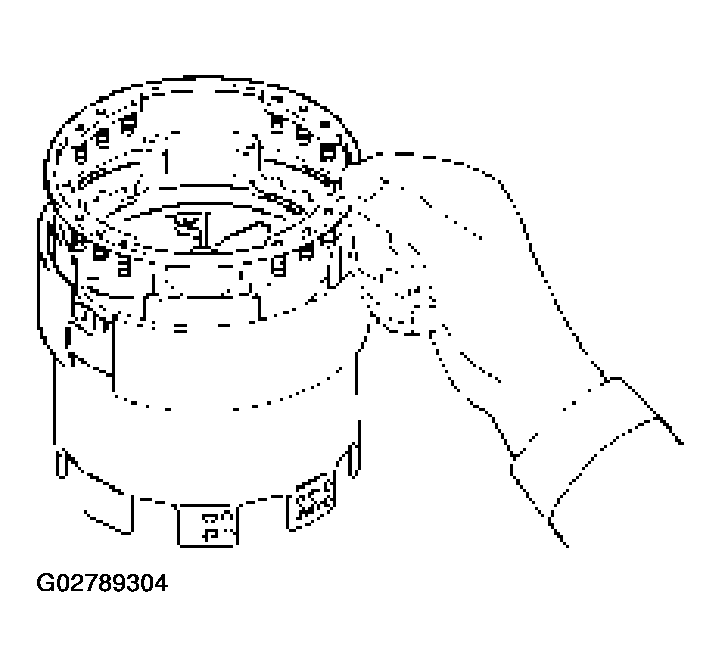

Fig 3: Installing Piston Return Spring
Courtesy of ISUZU MOTOR CO.
Place special tool on the spring retainer, and compress the return spring with a shop press.
Spring compressor: J-37233

Install the snap ring with a screwdriver.

Be sure the end gap of the snap ring is not aligned with cutout portion of the OD support.

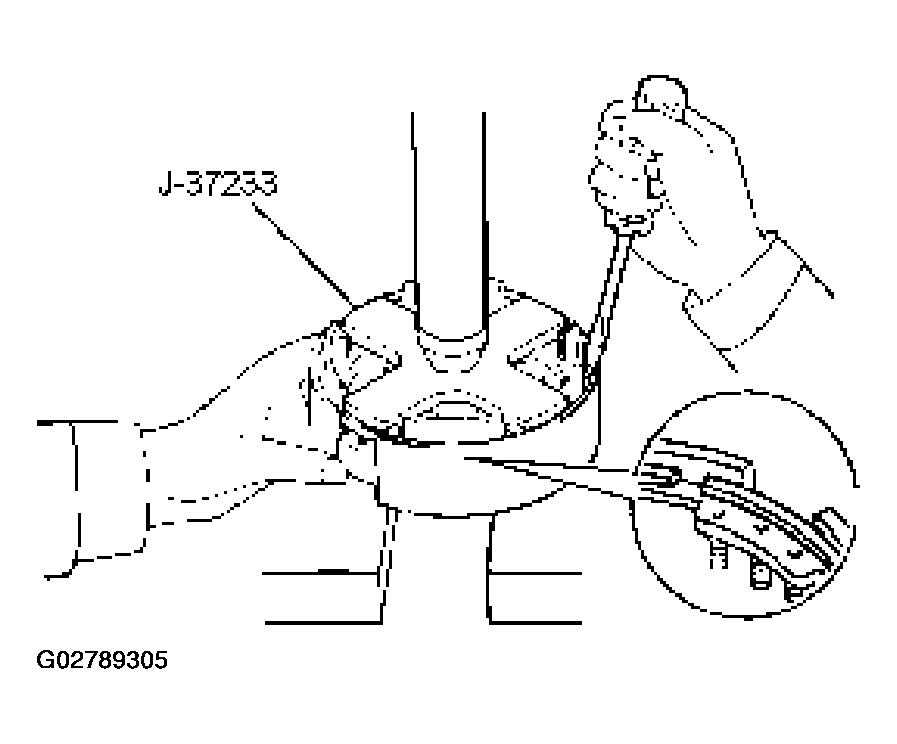

Fig 4: Compressing Return Spring With Shop Press
Courtesy of ISUZU MOTOR CO.
Coat the thrust washer (plastic) with petroleum jelly and install it onto the OD support.
NOTE: Make sure that the lug fits into the hole on the OD support.

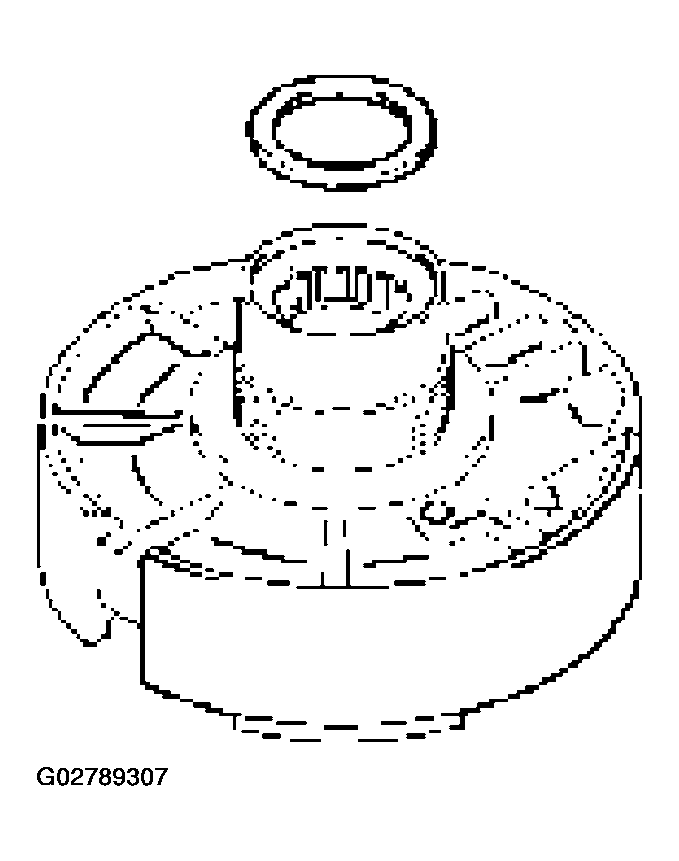

Fig 5: Identifying Coat Thrust Washer With Petroleum Jelly
Courtesy of ISUZU MOTOR CO.

Coat the race with petroleum jelly, and install it onto the OD support.

RACE DIAMETER (REFERENCE)

Inside diameter	36.8 mm (1.5 in)
Outside diameter	50.9 mm (2.00 in)

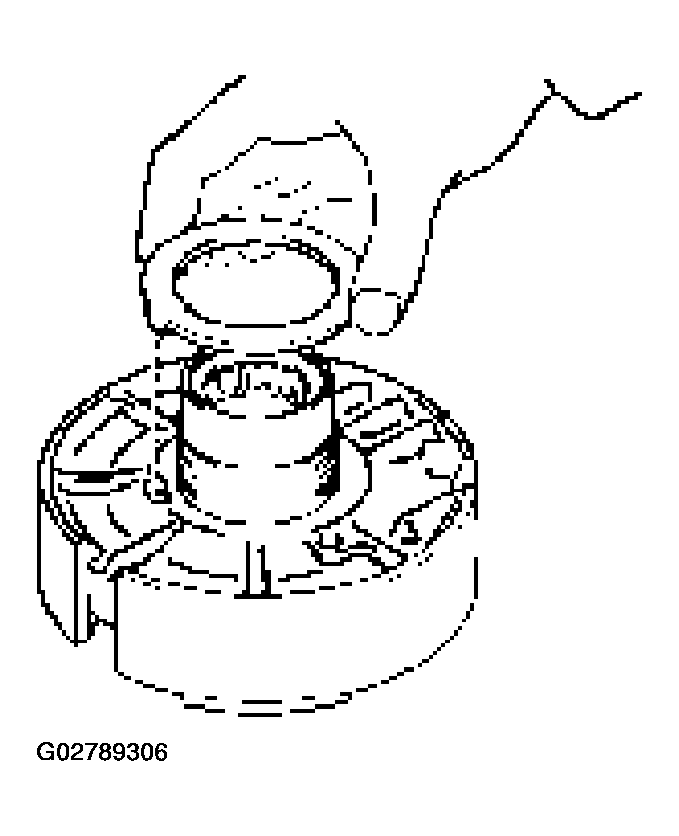

Fig 6: Installing OD Support

Courtesy of ISUZU MOTOR CO.

Turn over OD support.

Coat the two races with petroleum jelly, and install them onto the OD support.

RACE AND BEARING DIAMETER (REFERENCE)

	Inside	Outside
Race (A)	37.2 mm (1.46 in)	58.8 mm (2.31 in)
Bearing and race (B)	33.8 mm (1.33 in)	50.0 mm (1.97 in)

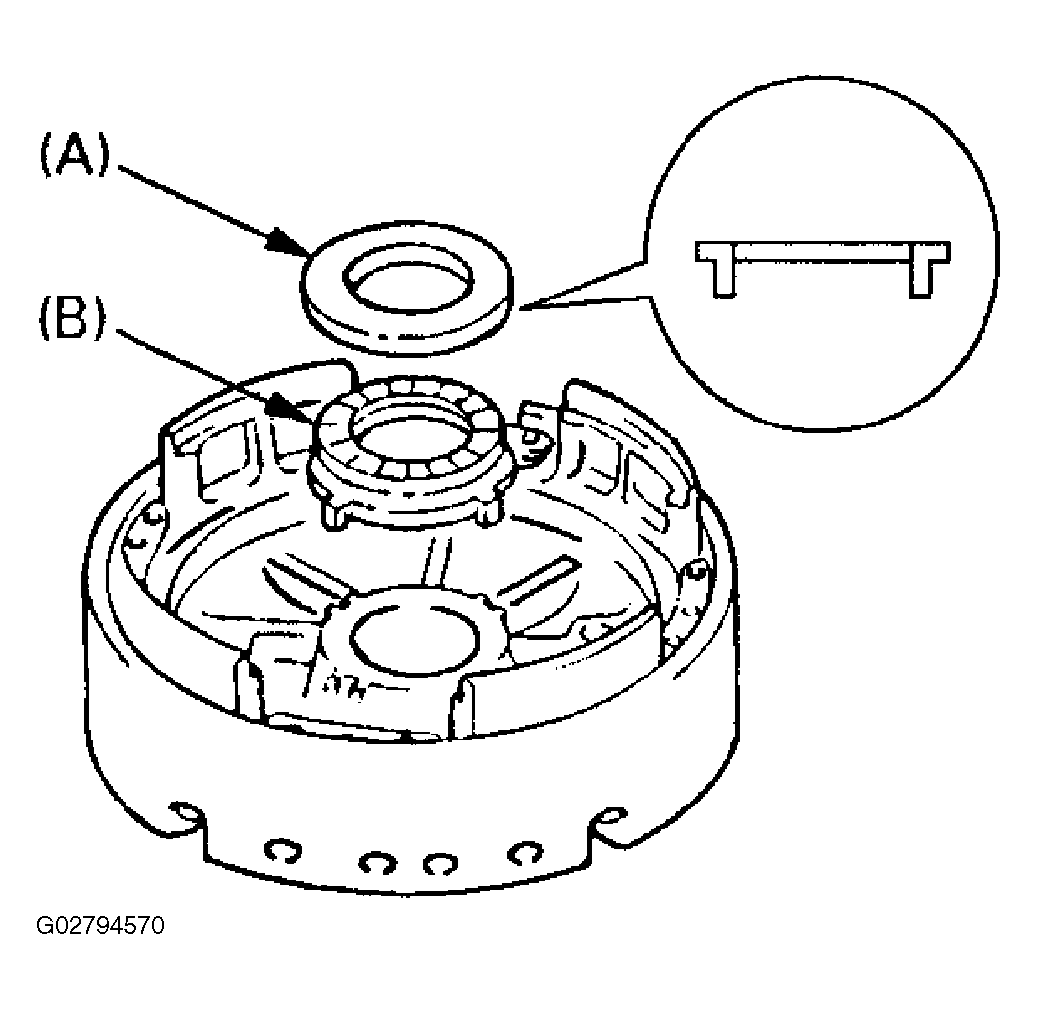

Fig 7: Installing Two Races Onto OD Support

Courtesy of ISUZU MOTOR CO.
