Pattern Select Switch: Inspection

Inspect that there is continuity between each terminals.

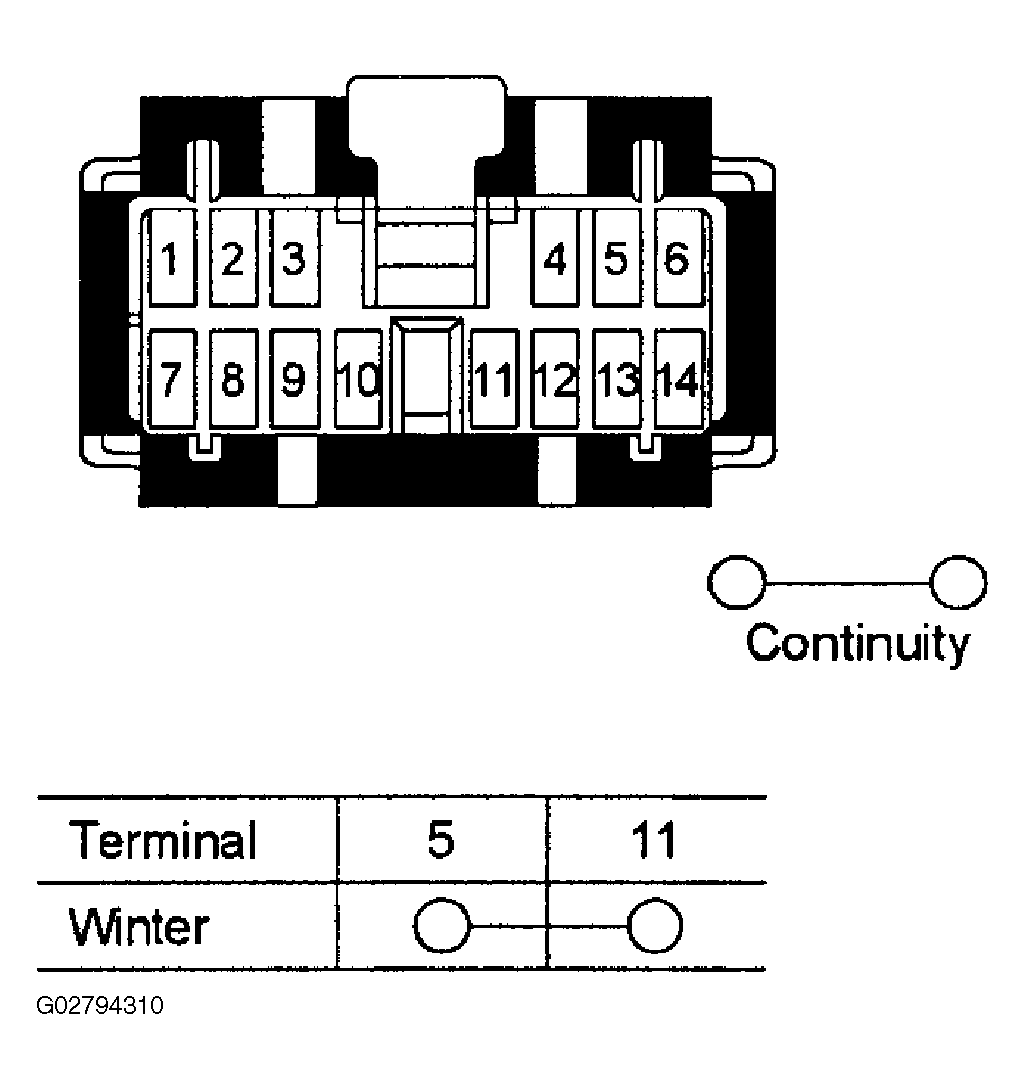

Fig 1: Inspecting Pattern Select Switch Continuity Between Each Terminals
G02794310Courtesy of ISUZU MOTOR CO.
