Select Cable: Removal

  1. Pull the hand parking brake.
  2. Set selector lever in "R" position.
  3. Remove knee pads, cluster upper cover, center cluster assembly, rear console, front console, selector lever knob and cover assembly.
  4. Disconnect inner cable by pushing projection on pin.

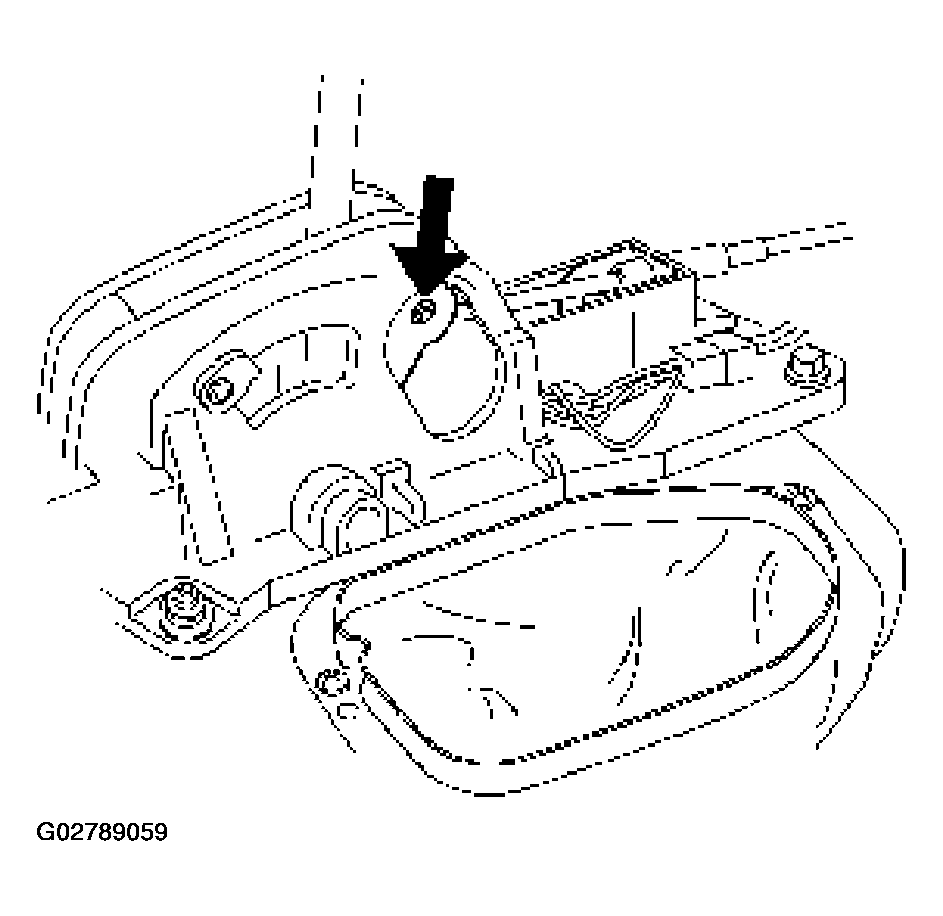

    Fig 1: Disconnecting Inner Cable By Pushing Projection On Pin
    G02789059Courtesy of ISUZU MOTOR CO.
  5. Press down claws and disconnect cable assembly.

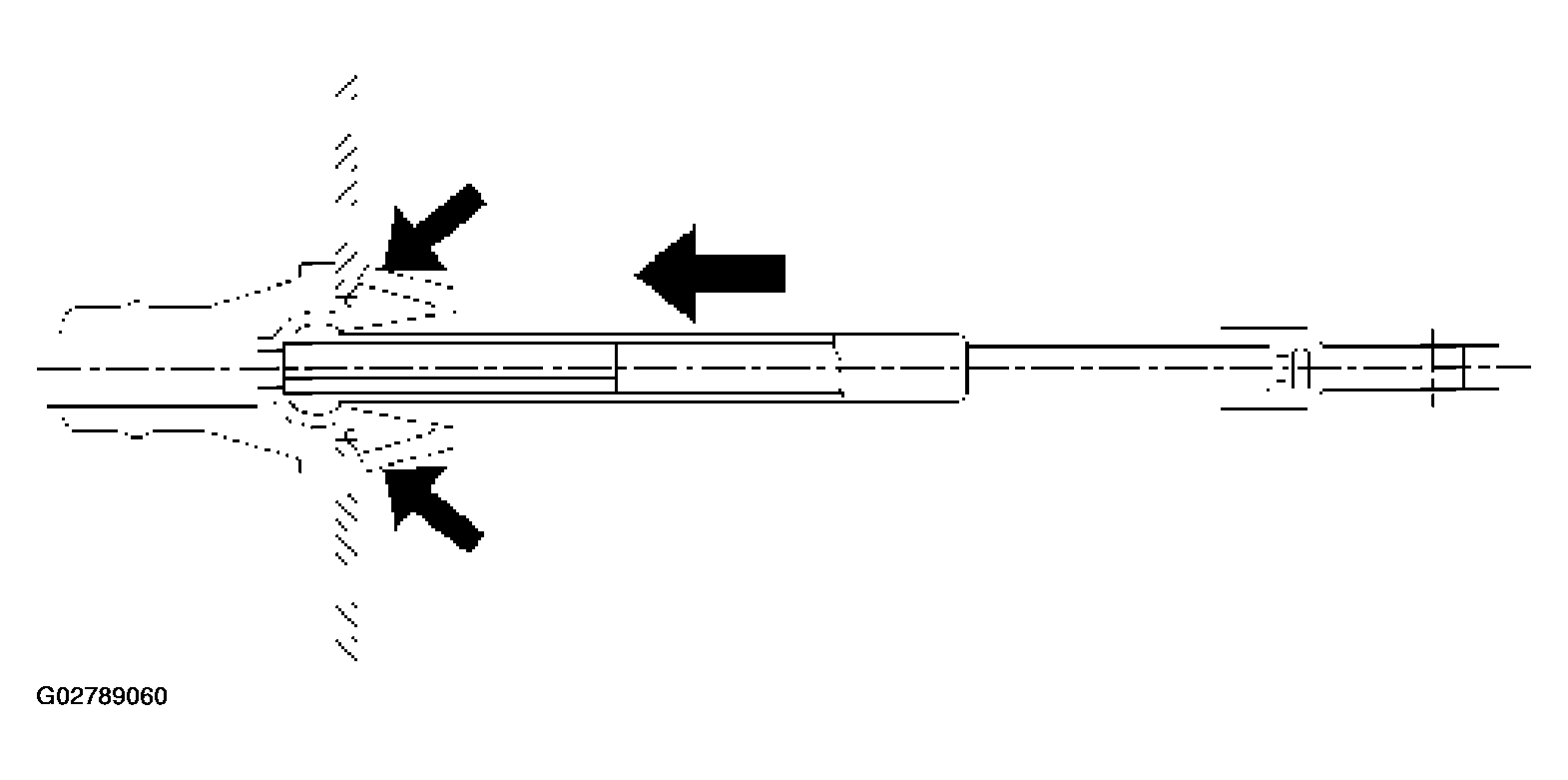

    Fig 2: Pressing Down Claws & Disconnecting Cable Assembly
    G02789060Courtesy of ISUZU MOTOR CO.
  6. Remove nuts that fasten grommet in select cable assembly.
  7. Disconnect inner cable.

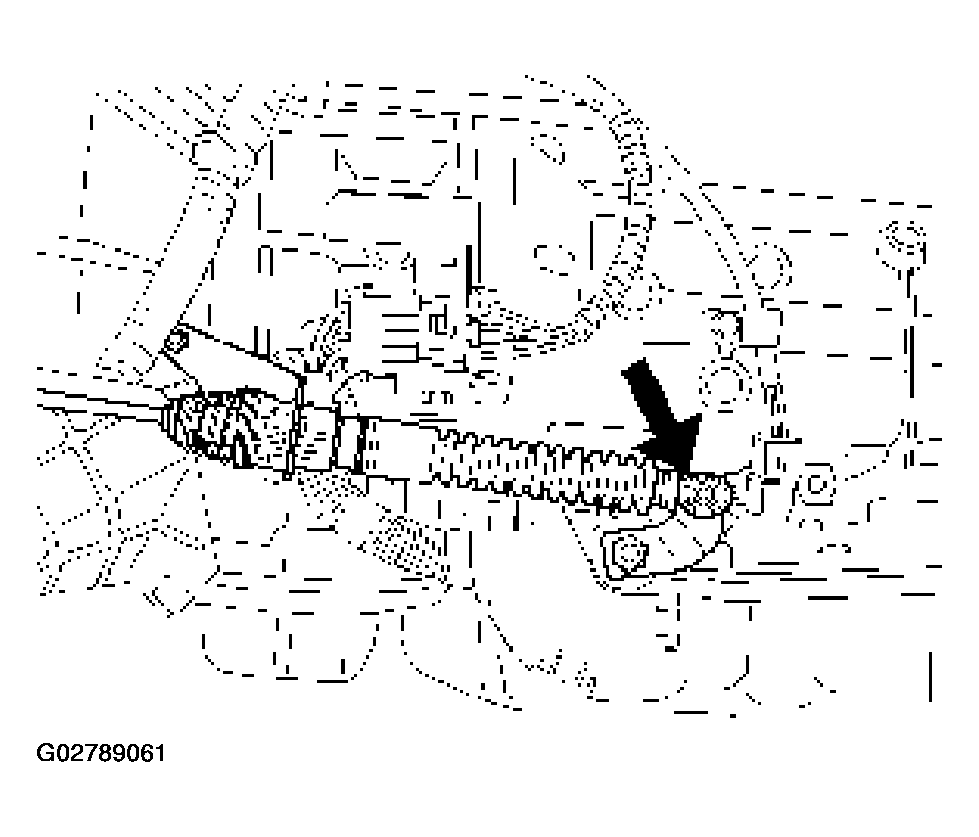

    Fig 3: Disconnecting Inner Cable
    G02789061Courtesy of ISUZU MOTOR CO.
  8. Slide sleeve and disconnect cable assembly.

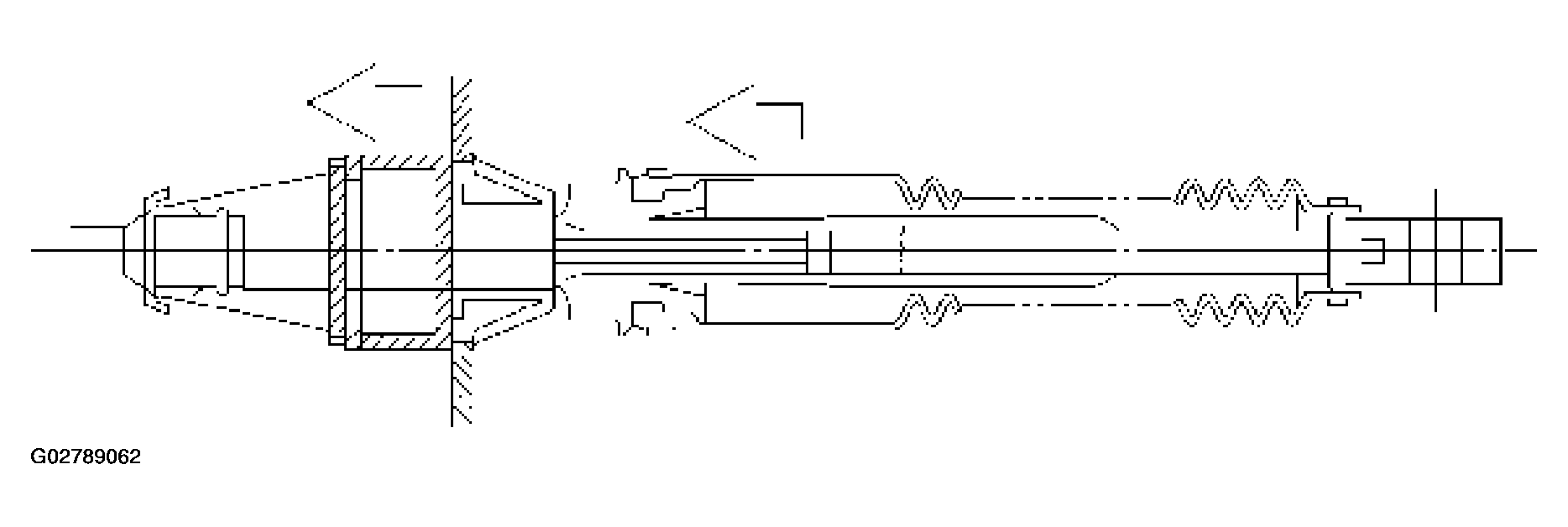

    Fig 4: Sliding Sleeve & Disconnecting Cable Assembly
    G02789062Courtesy of ISUZU MOTOR CO.
  9. Pull lock.

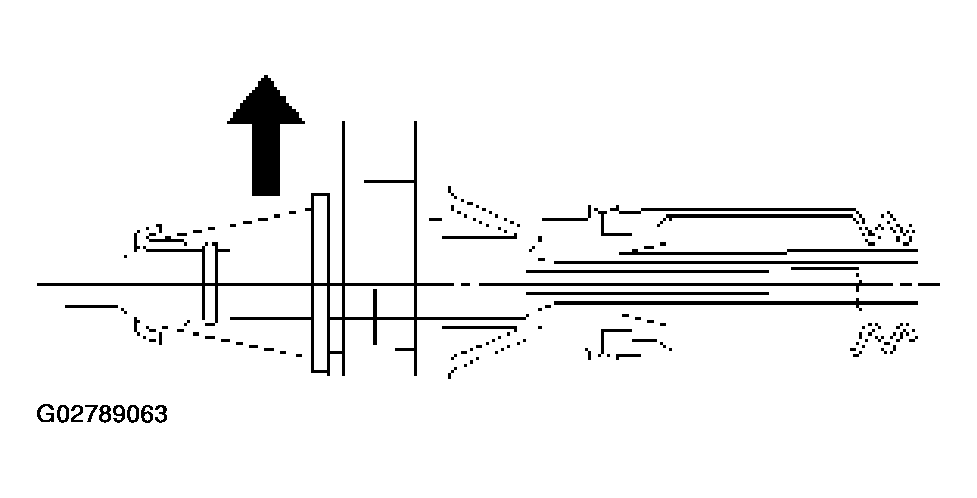

    Fig 5: Pulling Lock
    G02789063Courtesy of ISUZU MOTOR CO.
  10. Draw select cable assembly into the interior side.
