Shift Lock Cable: Removal

Set ignition key in "LOCK" position and selector lever in "P" position.
Remove rear console assembly, front console, selector lever knob and cover.
- Refer to SELECTOR LEVER .
Disconnect inner cable from selector lever assembly then push claw and disconnect cable assembly.

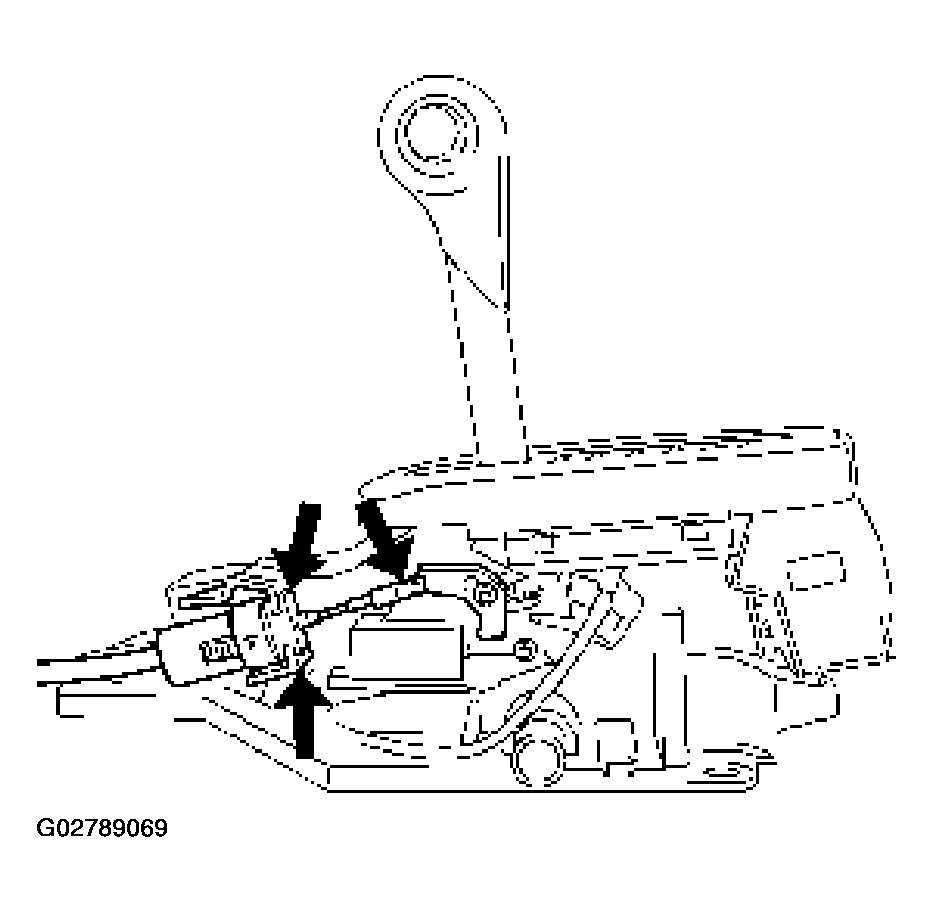

Fig 1: Disconnecting Inner Cable From Selector Lever Assembly
Courtesy of ISUZU MOTOR CO.

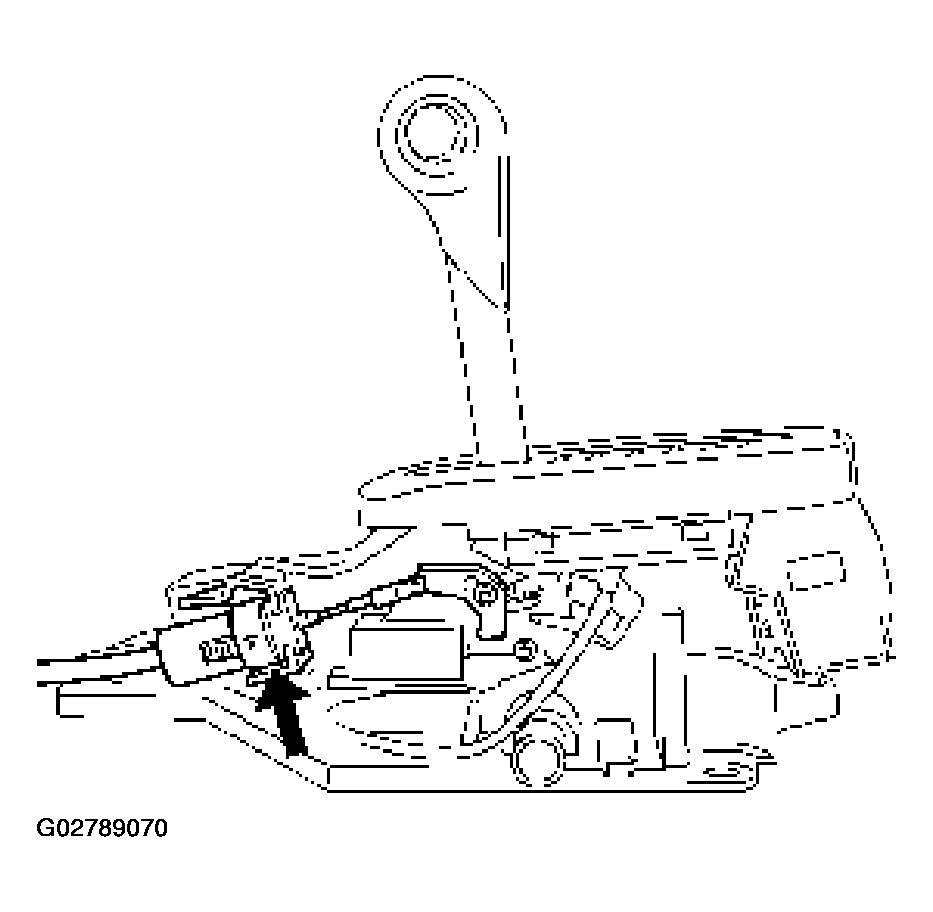

Fig 2: Disconnecting Cable Assembly
Courtesy of ISUZU MOTOR CO.
Remove instrument panel lower cover and steering column cover.
Remove spring pin and disconnect inner cable.
- Disconnect outer cable from bracket.

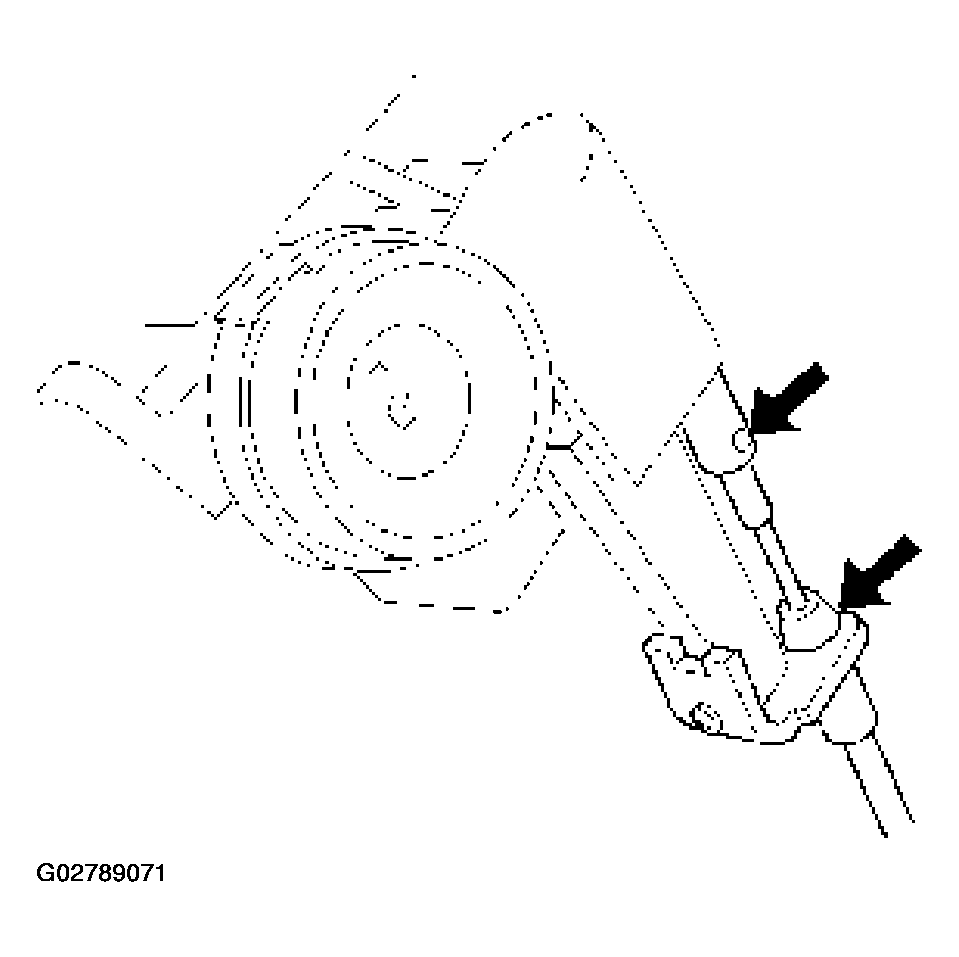

Fig 3: Removing Spring Pin & Disconnect Inner Cable

Courtesy of ISUZU MOTOR CO.
