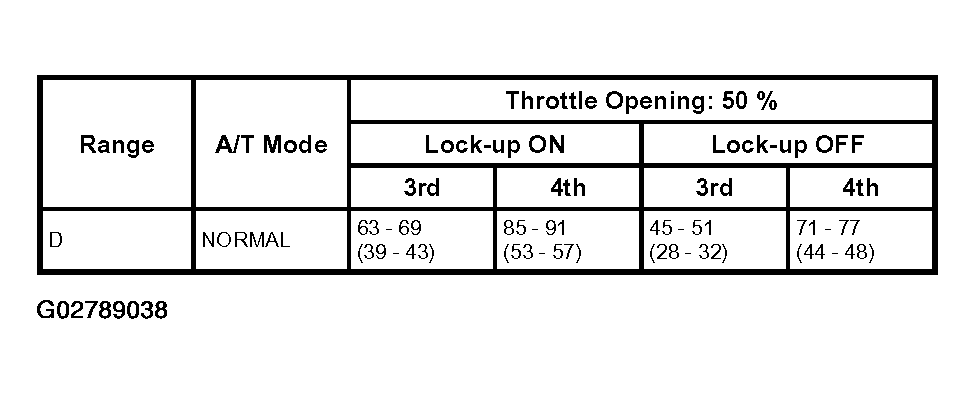

Lock-Up Point Chart

(H2, H4)

(REAR AXLE RATIO: 4.300)

(RADIUS OF TIRE: 0.361m)

Fig 1: Identifying KM/H (MPH) Chart

Courtesy of ISUZU MOTOR CO.

Lock-up points in 2nd are following figures regardless of throttle opening, whether NORMAL model.

Lock-up ON: 55 - 61 km/h (34 - 38 mph)

Lock-up OFF: 50-56 km/h (31 - 35 mph)
