"NORMAL" mode

Fig 1: Identifying Up Shift KM/H (MPH) Chart
G02789036Courtesy of ISUZU MOTOR CO.

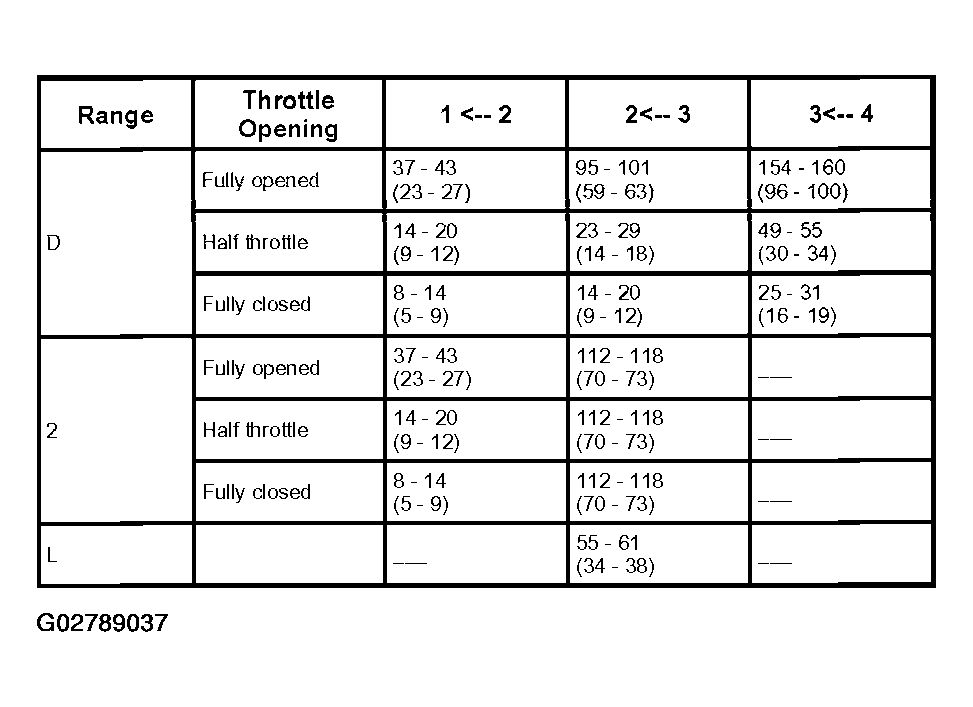

Fig 2: Identifying Down Shift KM/H (MPH) Chart
G02789037Courtesy of ISUZU MOTOR CO.
