Inspection and Repair

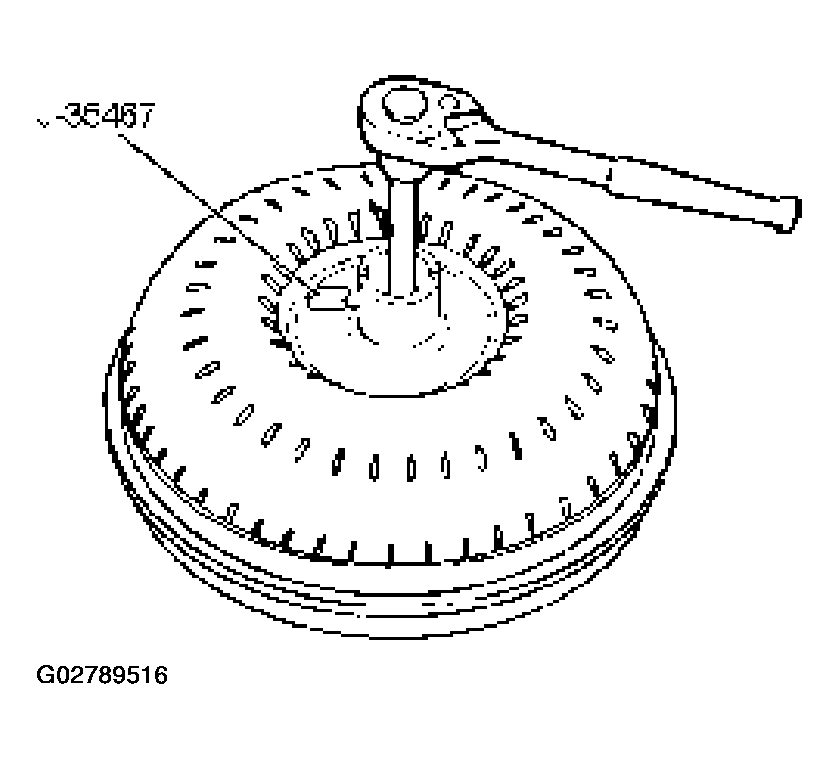

Insert special tool in end of torque converter.
Insert a turning tool into the inner race of the one-way clutch.
One-way clutch testing tool: J-35467
Insert the stopper so that it fits in the notch of the converter hub and outer race of the one-way clutch.
- One-way clutch test.
The clutch should lock when turned counterclockwise, and rotate freely and smoothly clockwise. Less than 2.5 N°Cm (22 lb in) of torque should be required to rotate the clutch clockwise. If necessary, clean the converter and retest the clutch. Replace the converter if the clutch still fails the test.
