Transmission Case: Reassembly

Coat a new oil seal lip with multi purpose grease.
Using special tool, drive in the oil seal.

Oil seal installer: J-37232-2

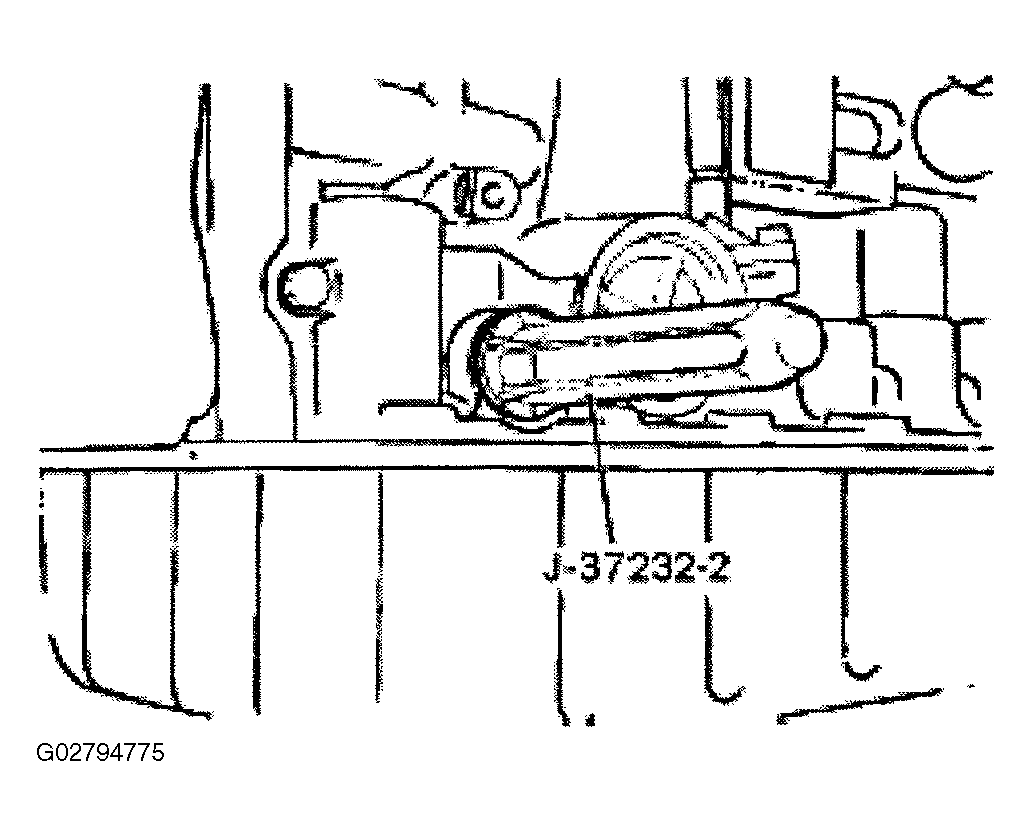

Fig 1: Drive In Oil Seal With Special Tool
Courtesy of ISUZU MOTOR CO.
Assemble a new spacer to the manual valve lever.
Install the manual valve lever shaft to the transmission case through the manual valve lever by the threads.

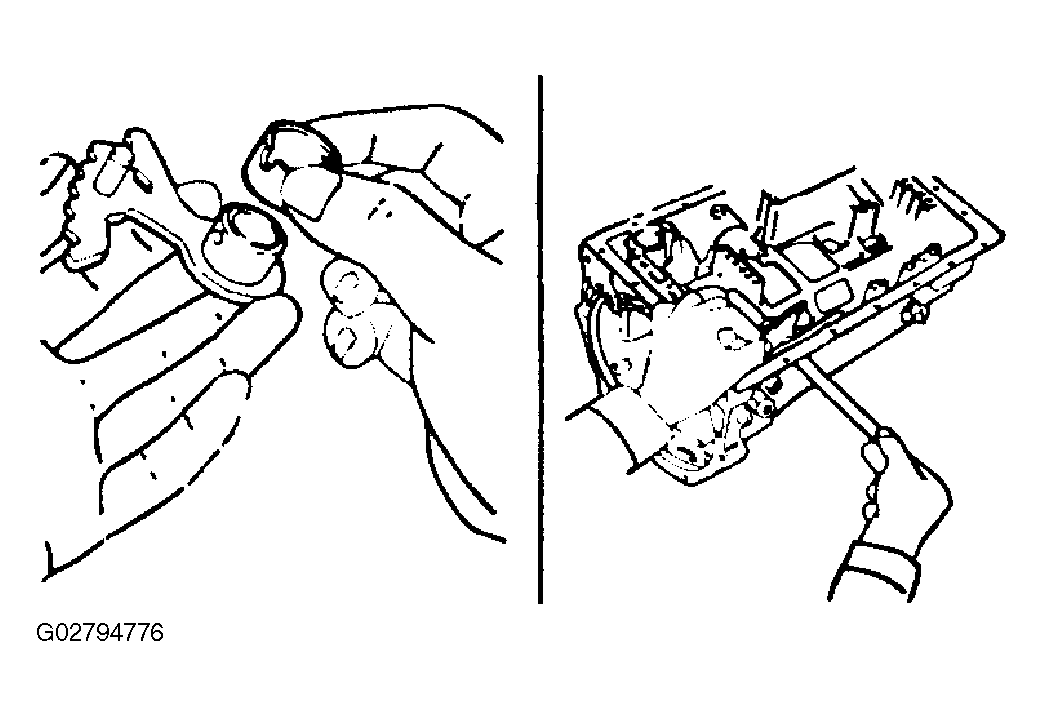

Fig 2: Installing Manual Valve Lever Shaft To Transmission Case
Courtesy of ISUZU MOTOR CO.
Drive in the pin with the slot at a right angle to the shaft.

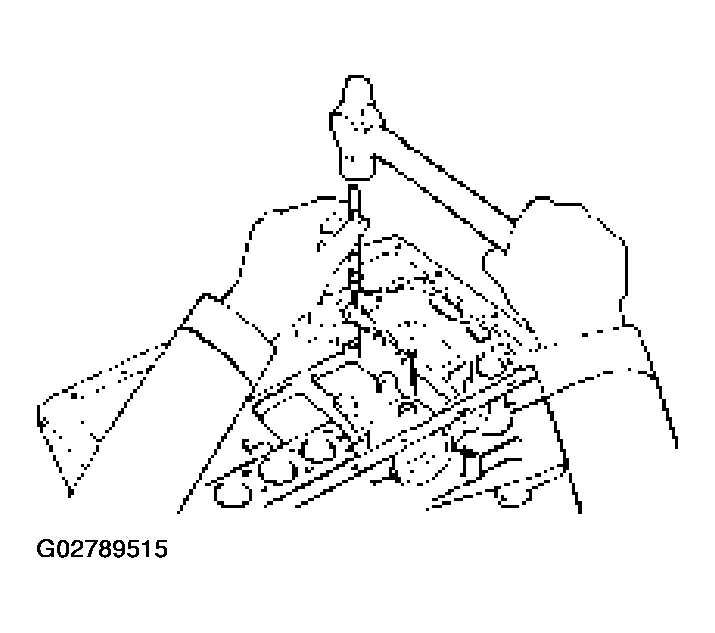

Fig 3: Driving In Pin
Courtesy of ISUZU MOTOR CO.

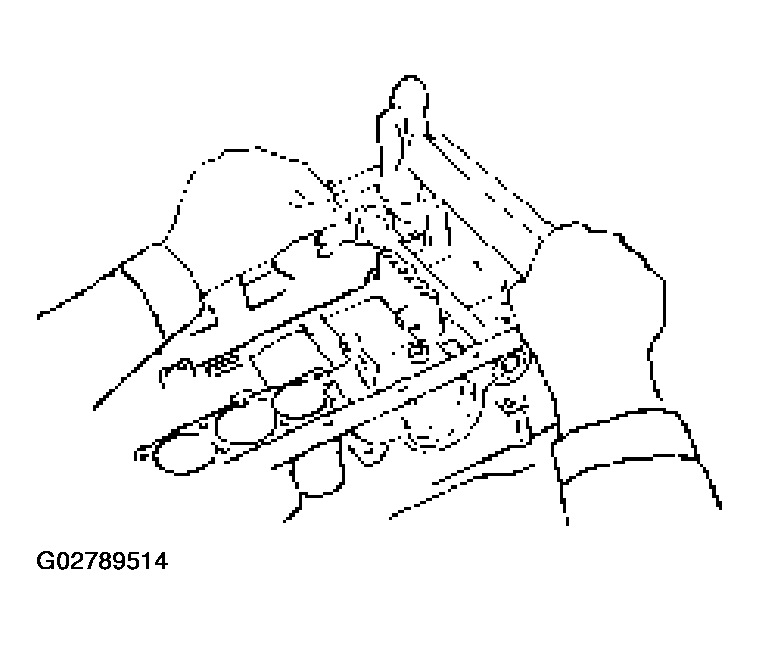

Match the spacer hole to the lever staking hollow and stake the spacer to the lever.
Make sure the manual valve lever shaft turns smoothly.

Fig 4: Matching Spacer Hole To Lever Staking Hollow
Courtesy of ISUZU MOTOR CO.
