Transmission Valve Body Assembly: Reassembly

Position a new No.1 gasket (1) on upper valve body.
Align the No.1 gasket at each bolt hole.
Position valve body plate (2) on No.1 gasket (1).
Align the plate at each bolt hole.
Position a new No.2 gasket (3) on valve body plate (2).
Align the No.2 gasket at each bolt hole.

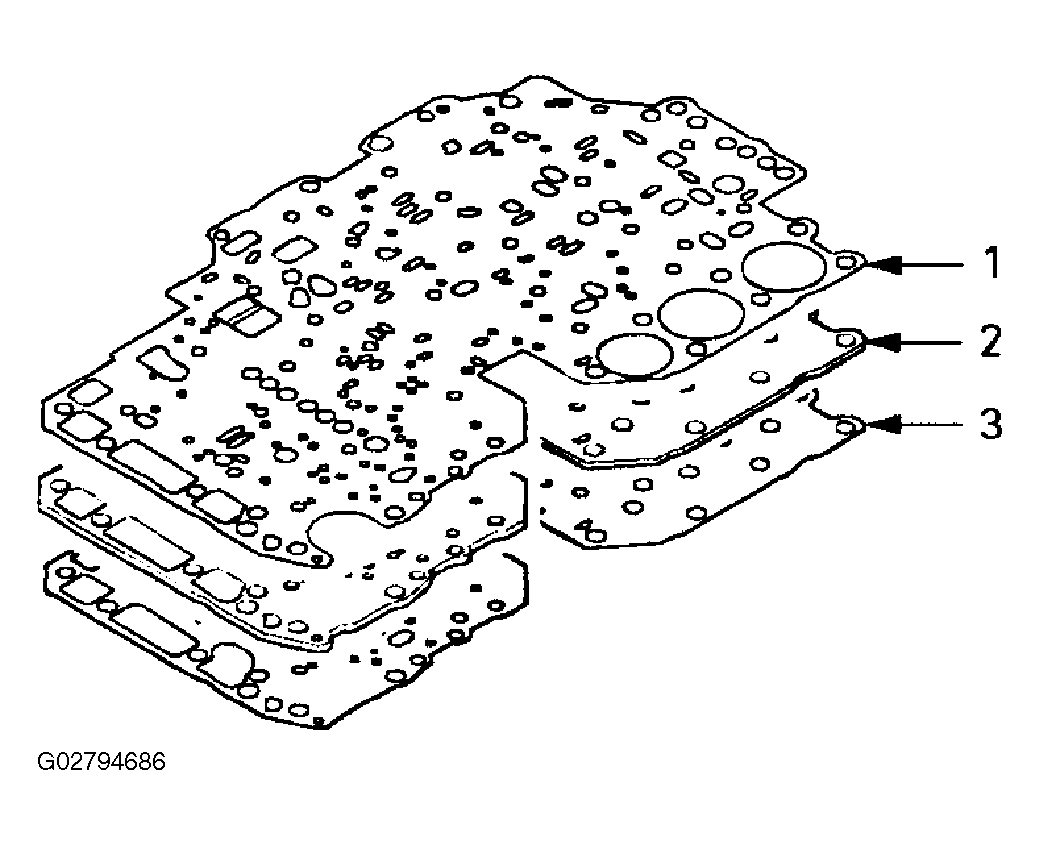

Fig 1: Positioning Valve Body Plate On No. 1 Gasket
Courtesy of ISUZU MOTOR CO.
Place upper valve body with plate and gaskets on top of lower valve body.
Align each bolt hole and gasket in the valve body.

Fig 2: Aligning Each Bolt Hole & Gasket In Valve Body
Courtesy of ISUZU MOTOR CO.
Install the pressure control solenoid and clamp.

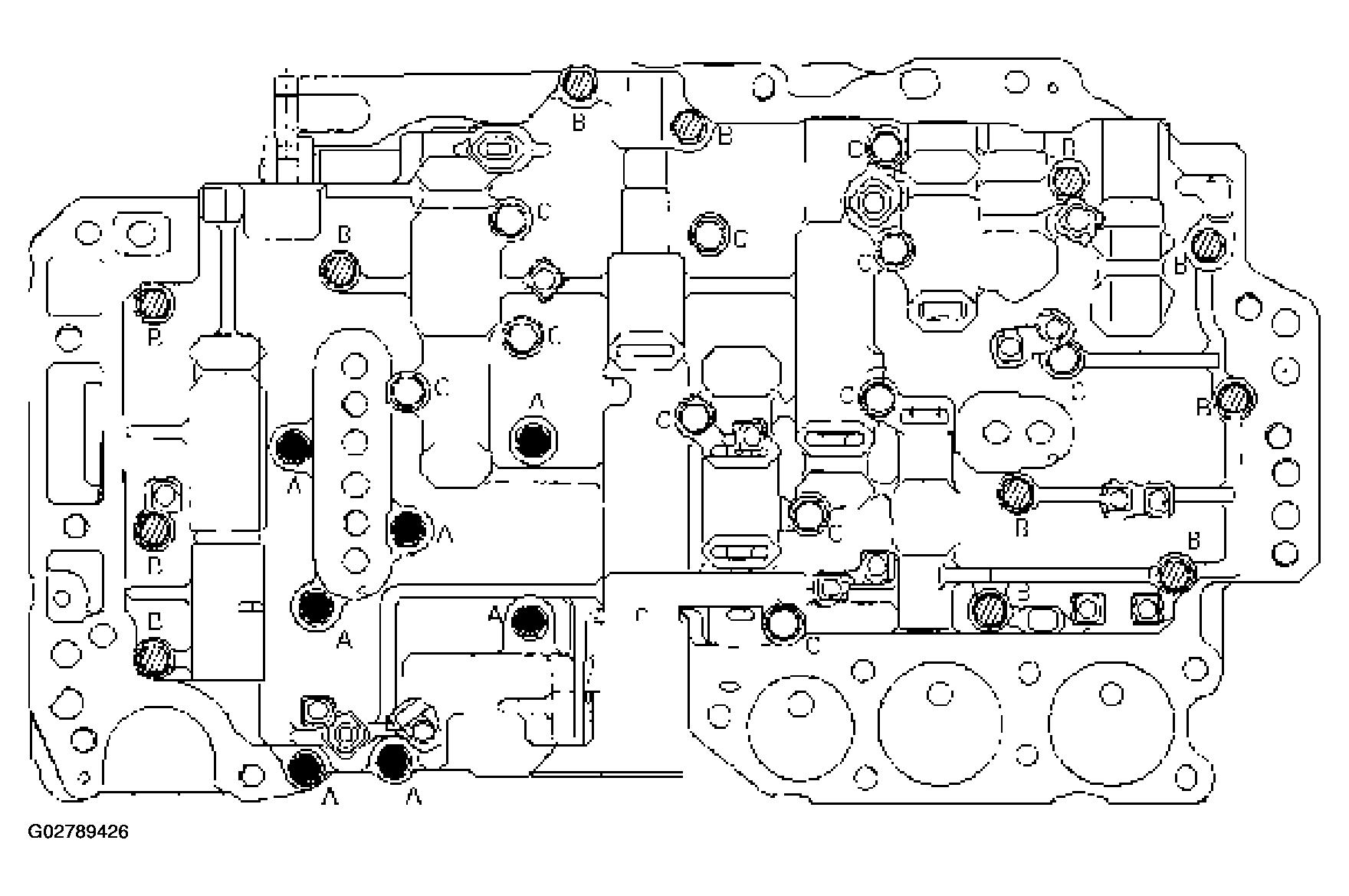

Install thirty bolts to upper valve body. Each bolt is indicated in Fig 3 .

LENGTH SPECIFICATION

Torque: 6.4 N.m (57 lb in)

Fig 3: Installing Bolts To Upper Valve Body

Courtesy of ISUZU MOTOR CO.

Install manual shift valve.
Install detent spring.
Torque: 10 N.m (87 lb in)

Fig 4: Installing Detent Spring
Courtesy of ISUZU MOTOR CO.
