Valve Body Assembly and Pressure Control Solenoid: Notes

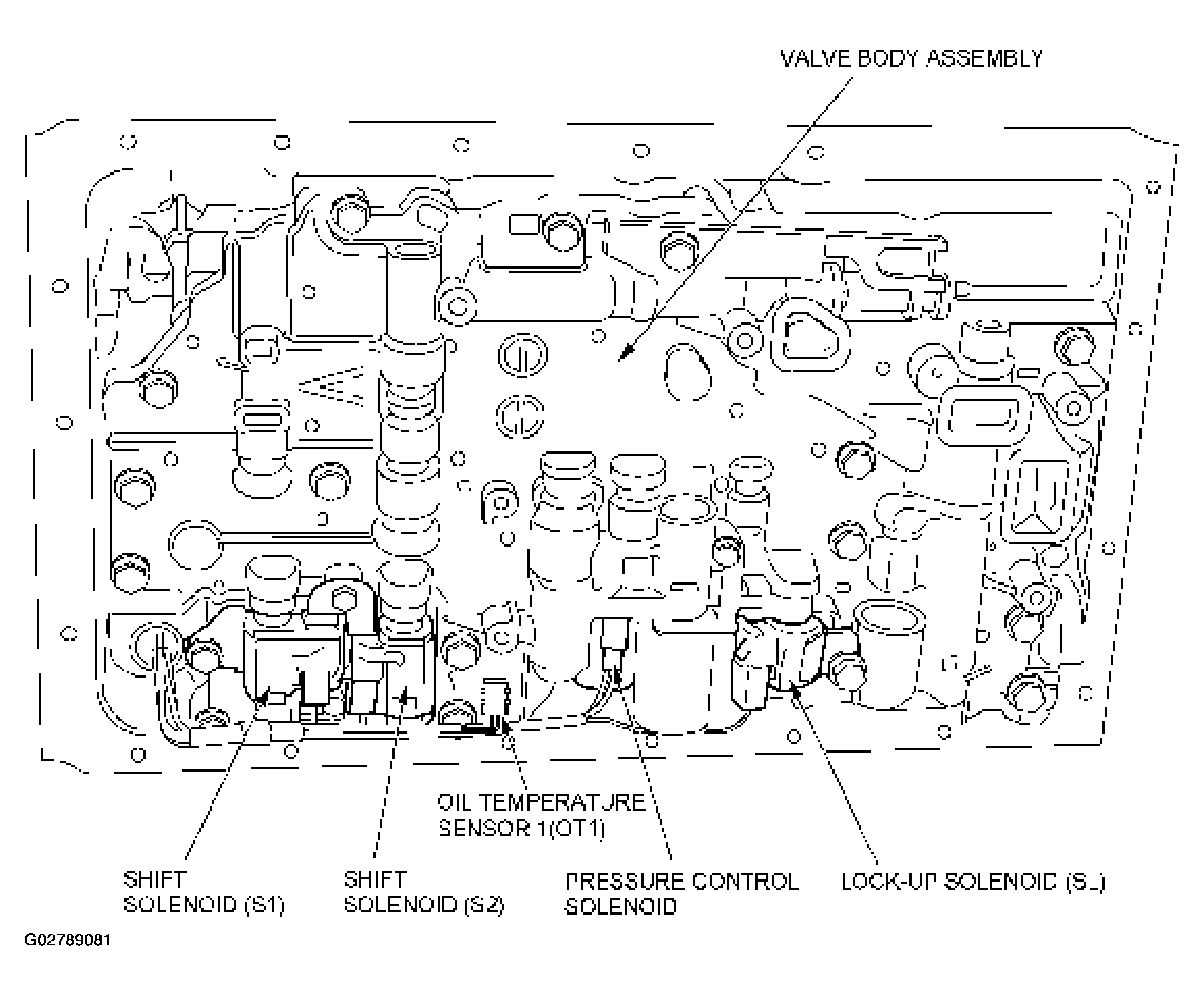

Fig 1: Identifying Valve Body Assembly & Pressure Control Solenoid
G02789081Courtesy of ISUZU MOTOR CO.
