DTC P0712: (FLASHING CODE 15) Transmission Fluid Temperature Sensor Circuit Low: Notes

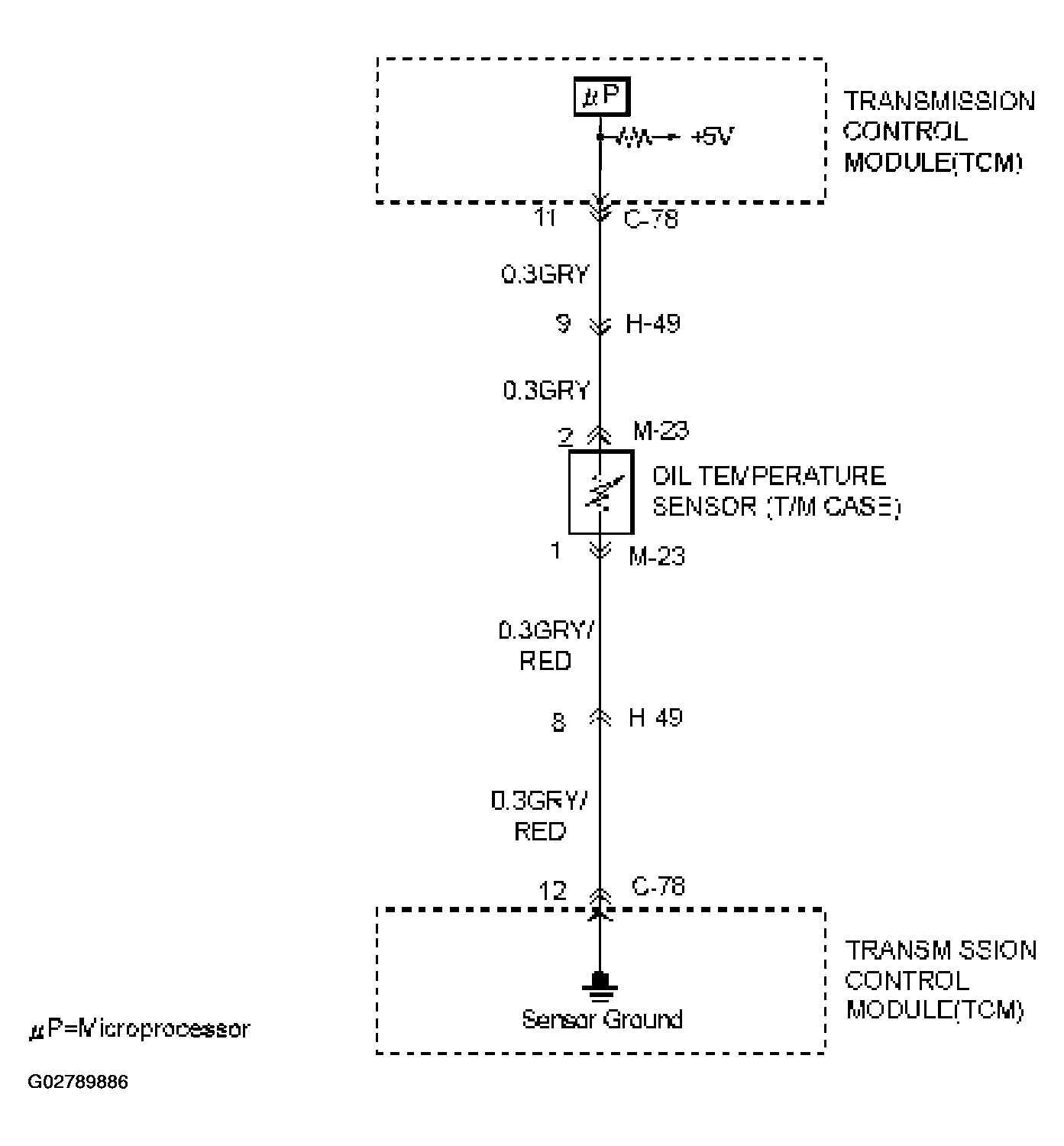

Fig 1: DTC P0712: (Flashing Code 15) Transmission Fluid Temperature Sensor Circuit Low Wiring Diagram
G02789886Courtesy of ISUZU MOTOR CO.
