DTC P0722: (FLASHING CODE 11) AT Output Speed Sensor (Automatic Transmission): Notes

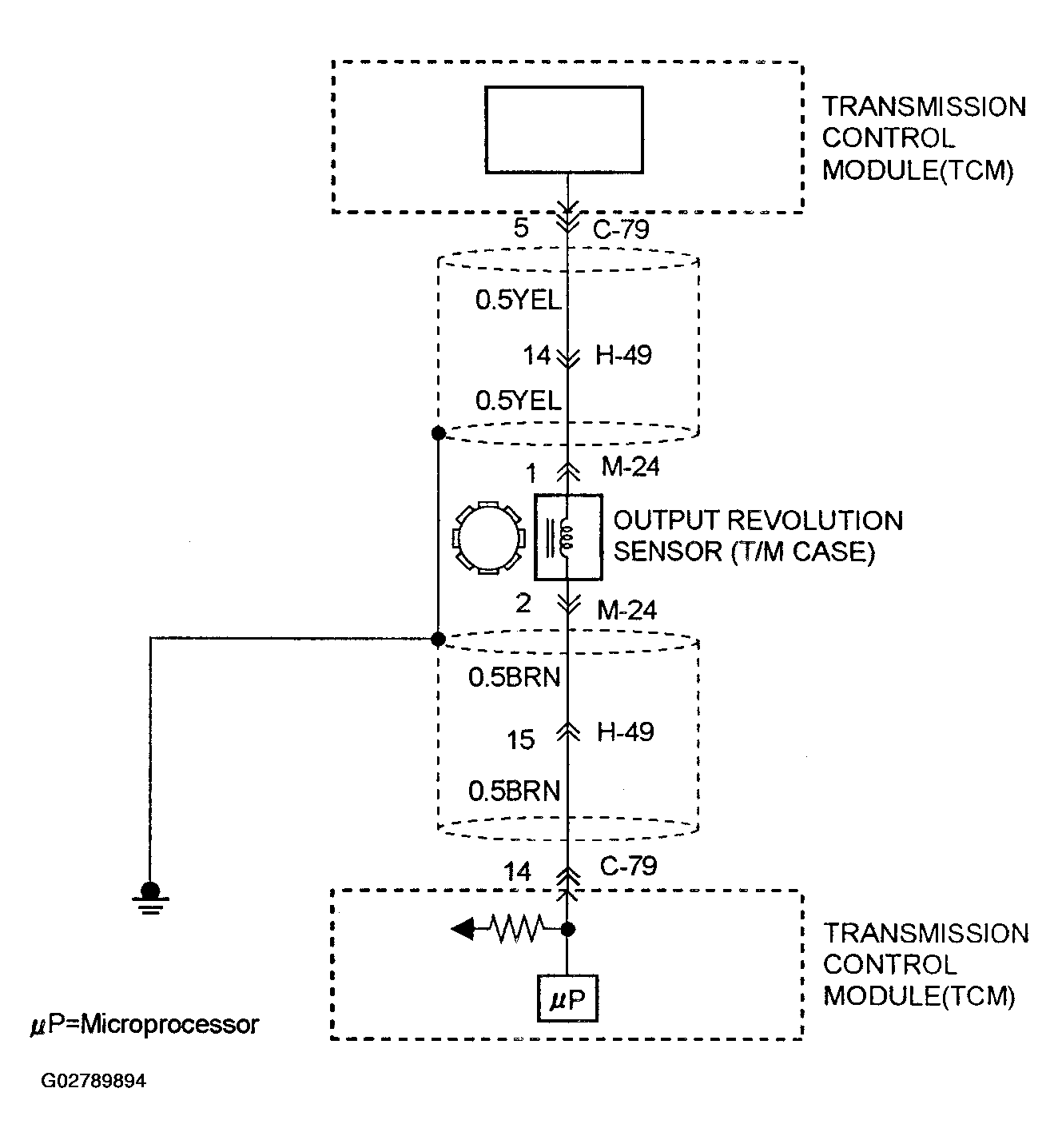

Fig 1: DTC P0722: (Flashing Code 11) AT Output Speed Sensor (Automatic Transmission) Wiring Diagram
G02789894Courtesy of ISUZU MOTOR CO.
