DTC P0748: (FLASHING CODE 35) Pressure Control Solenoid Electrical: Notes

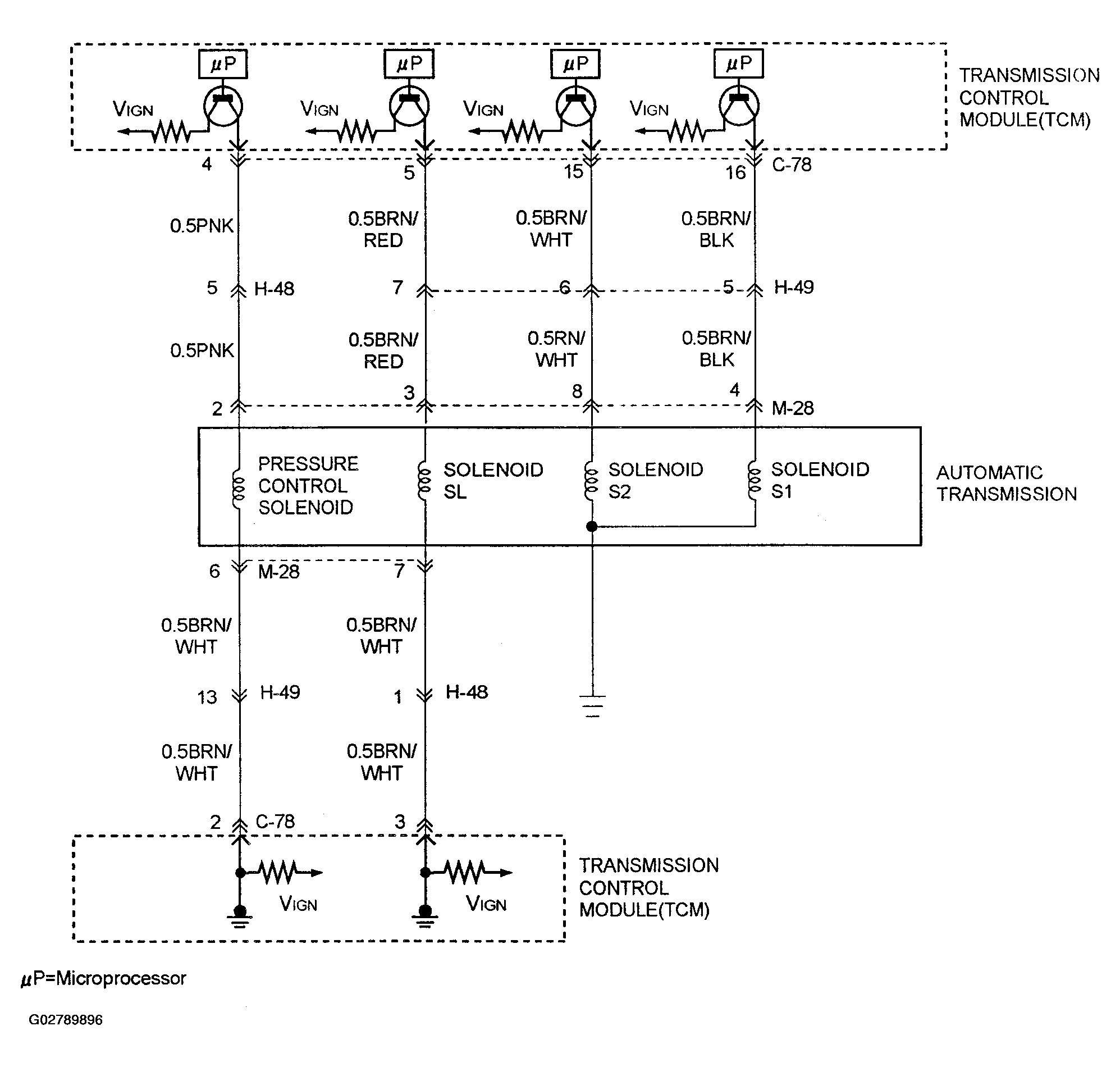

Fig 1: DTC P0748: (Flashing Code 35) Pressure Control Solenoid Electrical Wiring Diagram
G02789896Courtesy of ISUZU MOTOR CO.
