Functions of Input / Output Components

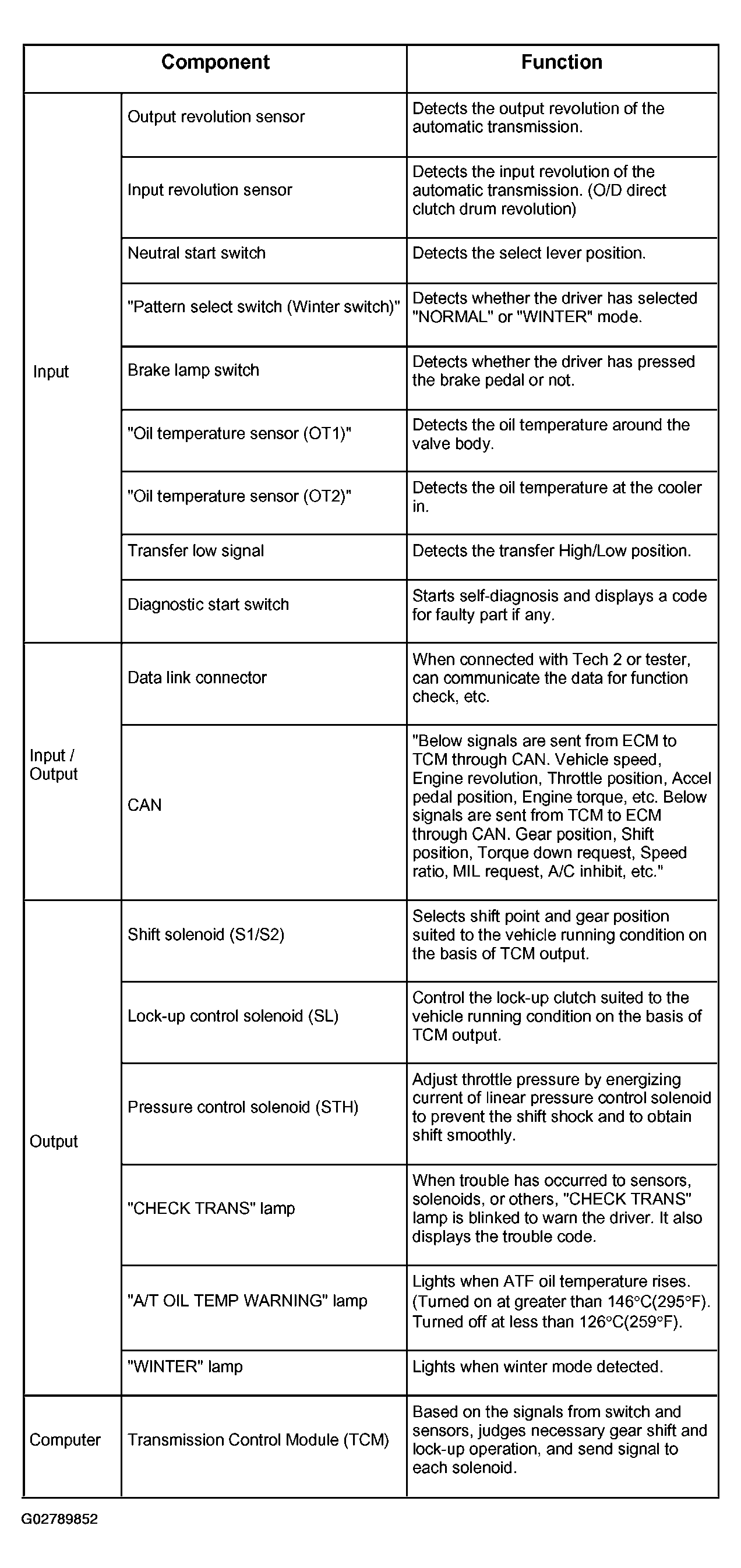

Fig 1: Identifying Functions of Input / Output Components
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
