Map Light

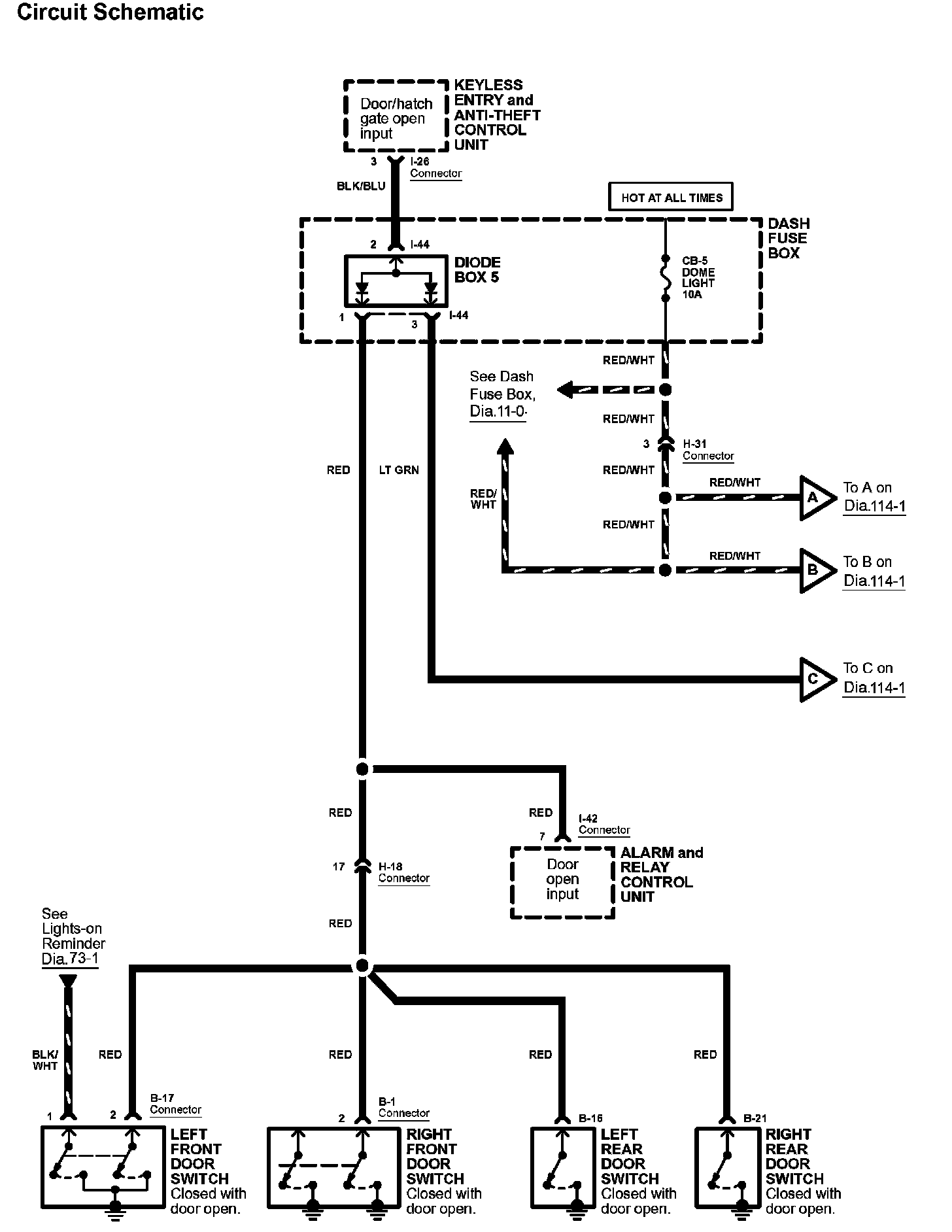

Diagram 114-0 (Dome, Luggage Room And Map Lights):

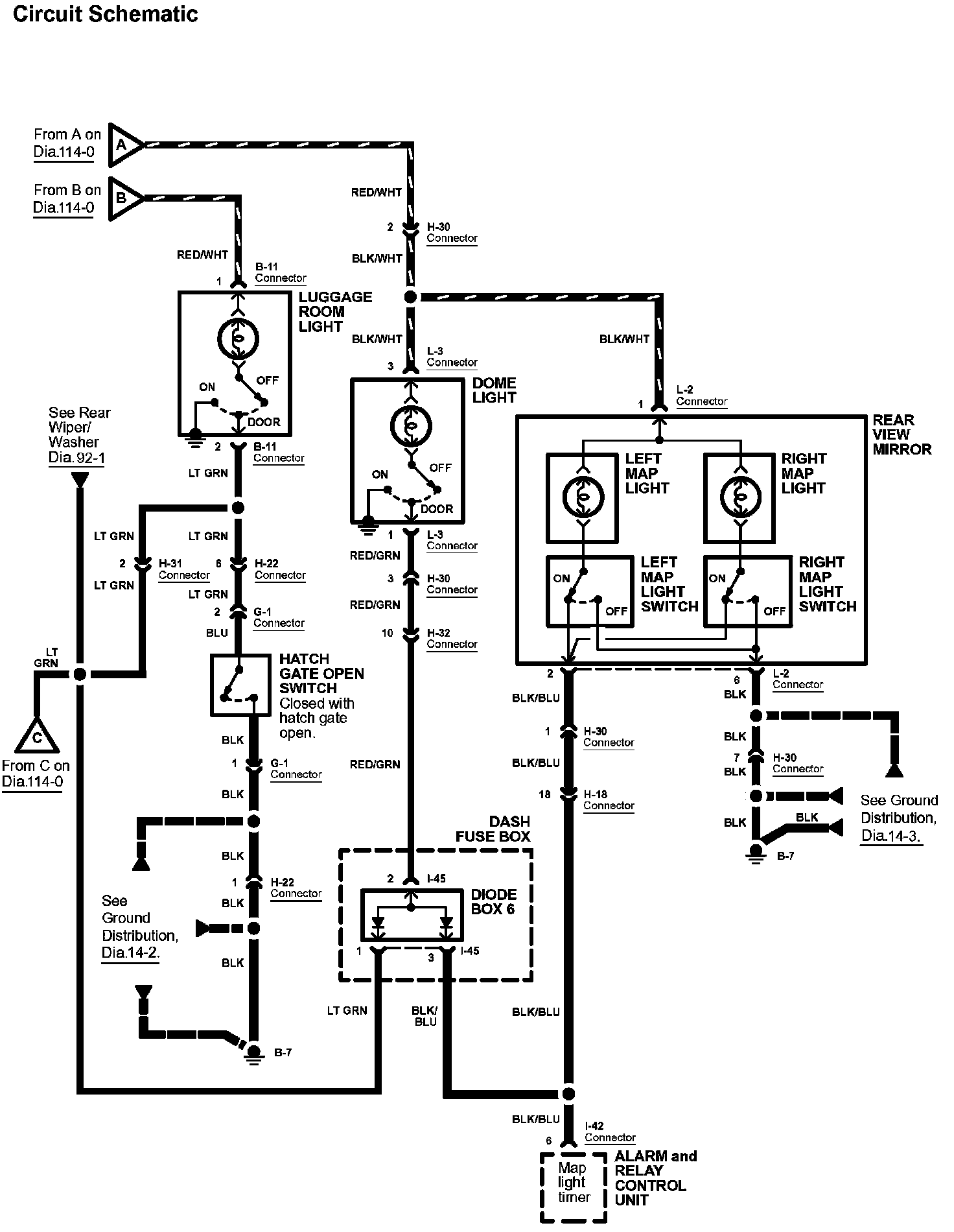

Diagram 114-1 (Dome, Luggage Room And Map Lights):

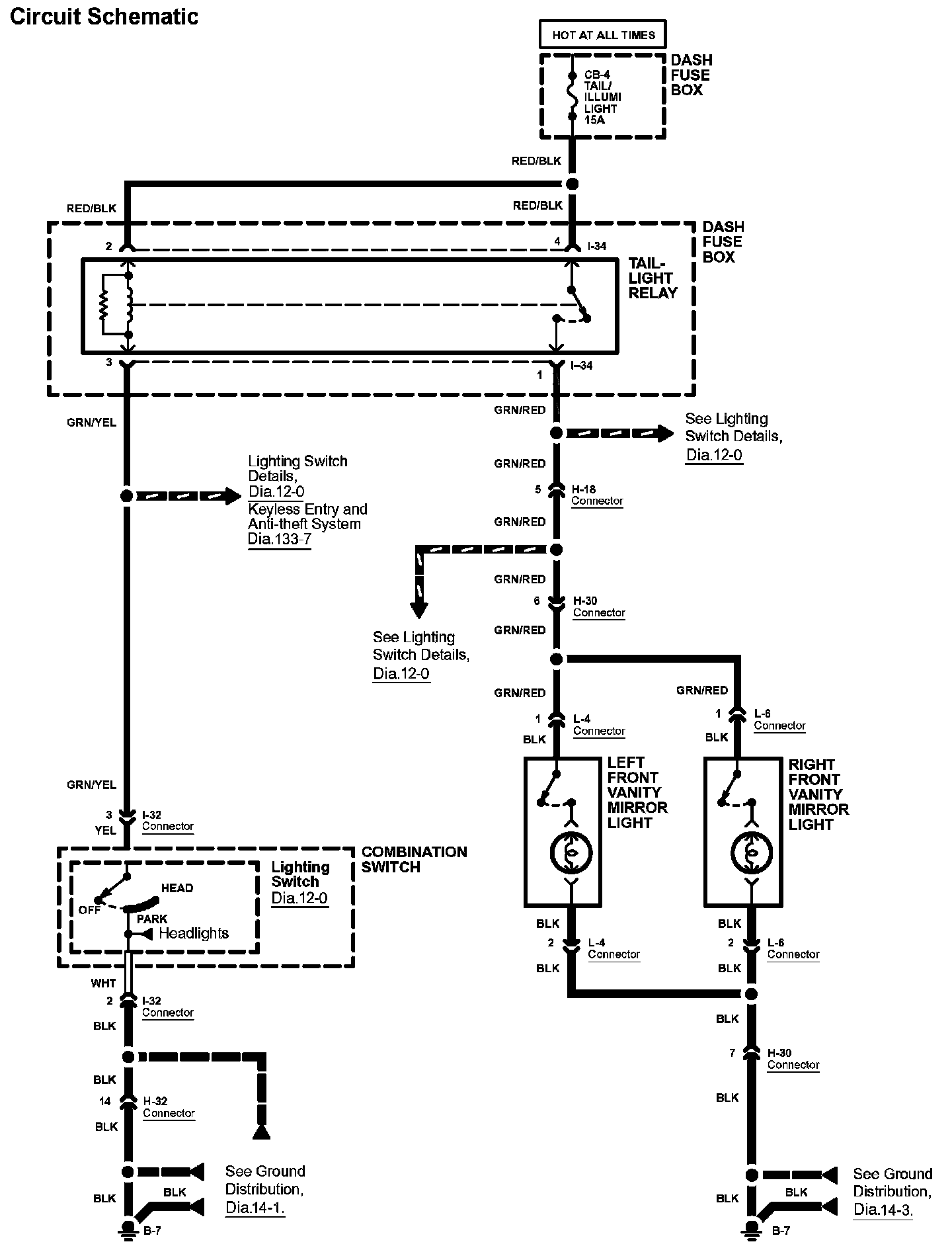

Diagram 114-2 (Vanity Lights):

Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
