Oxygen Sensor: Locations

98. Left Front Exhaust Downpipe:

99. Rear of Left Catalytic Converter:

101. Rear of Right Catalytic Converter:

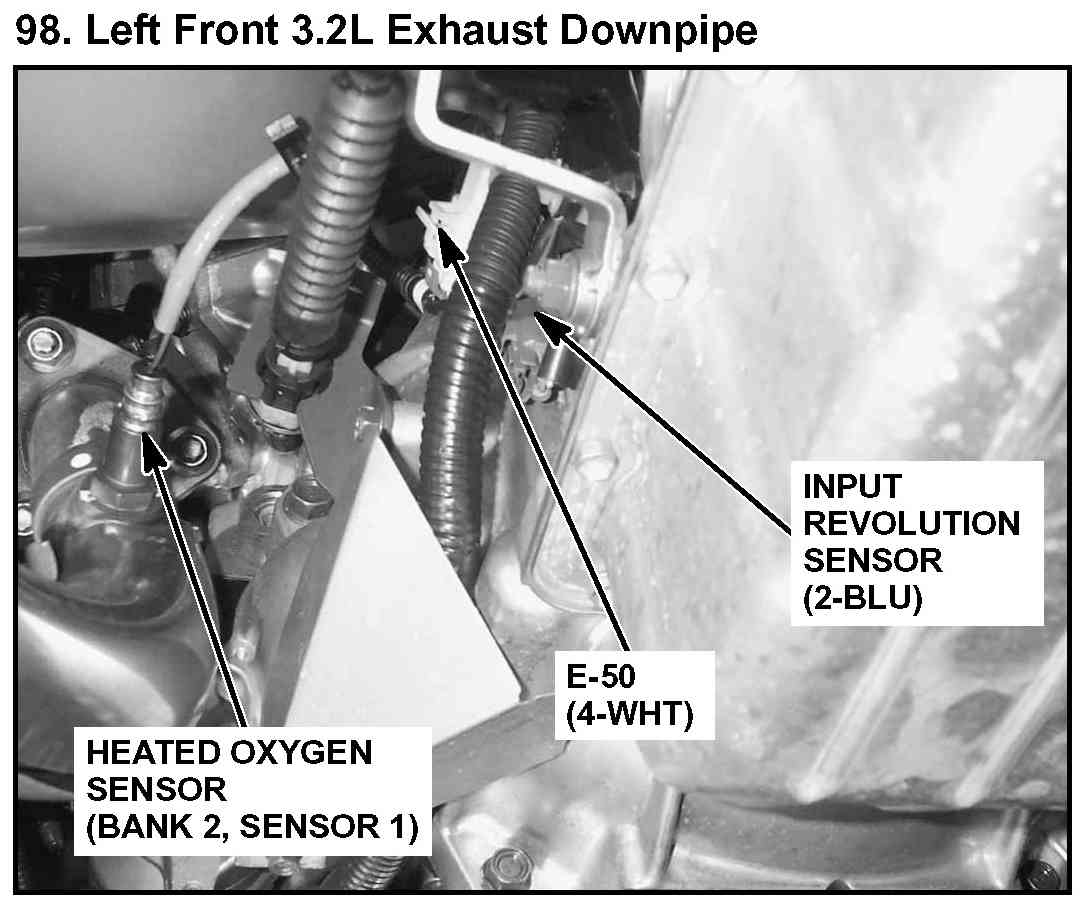

98.Left Front 3.2L Exhaust Downpipe:

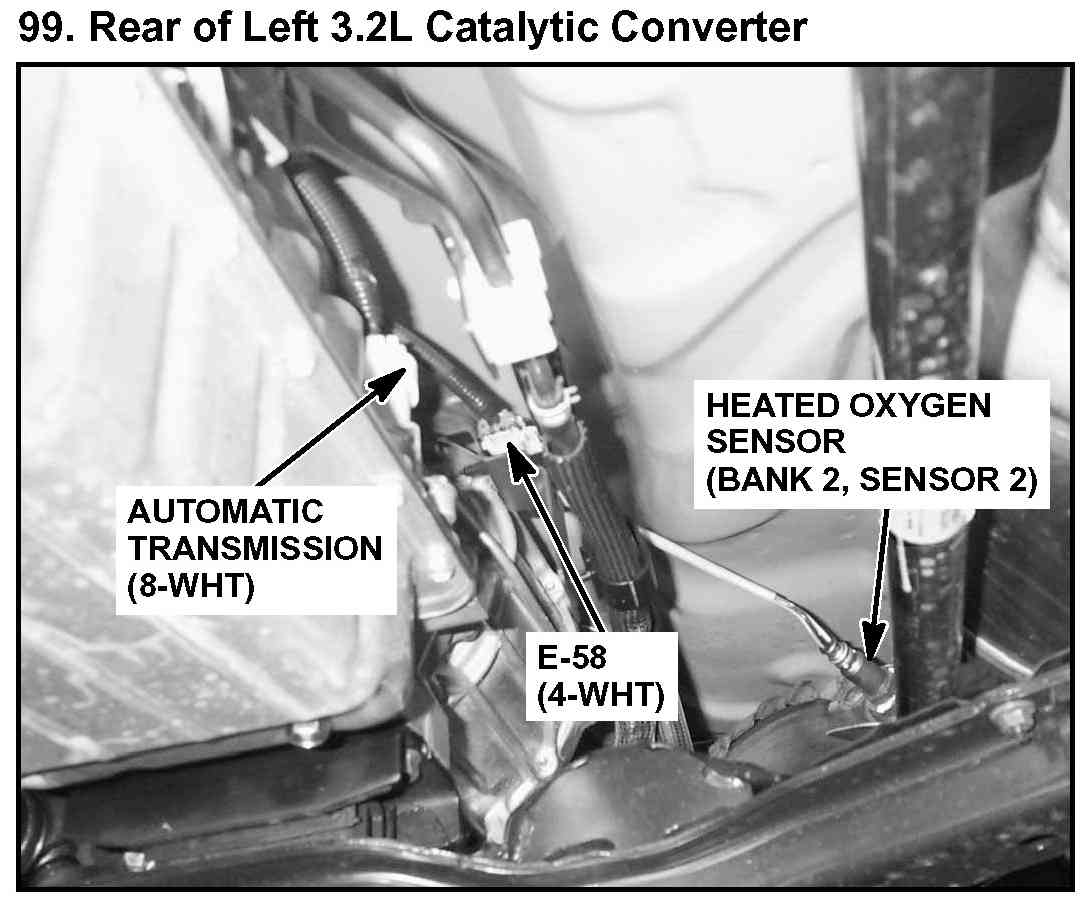

99.Rear Of Left 3.2L Catalytic Converter:

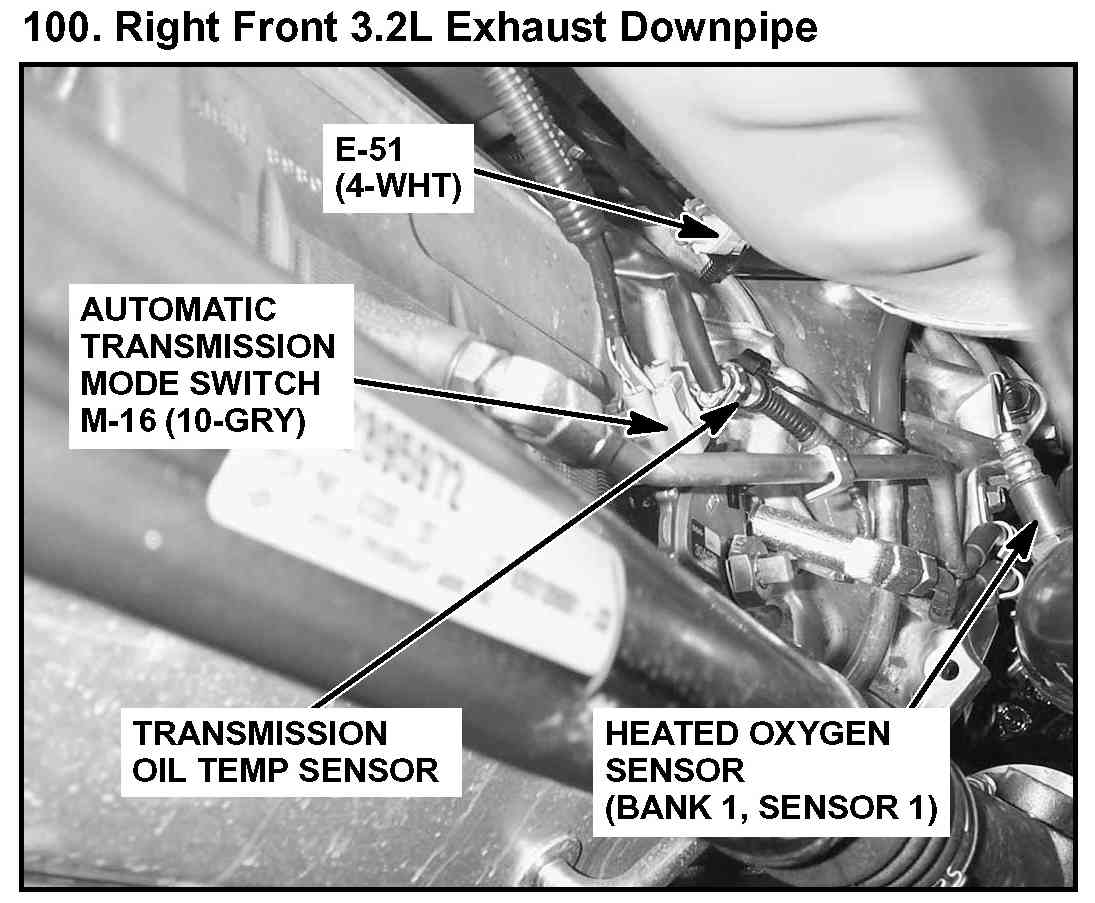

100.Right Front 3.2L Exhaust Downpipe:

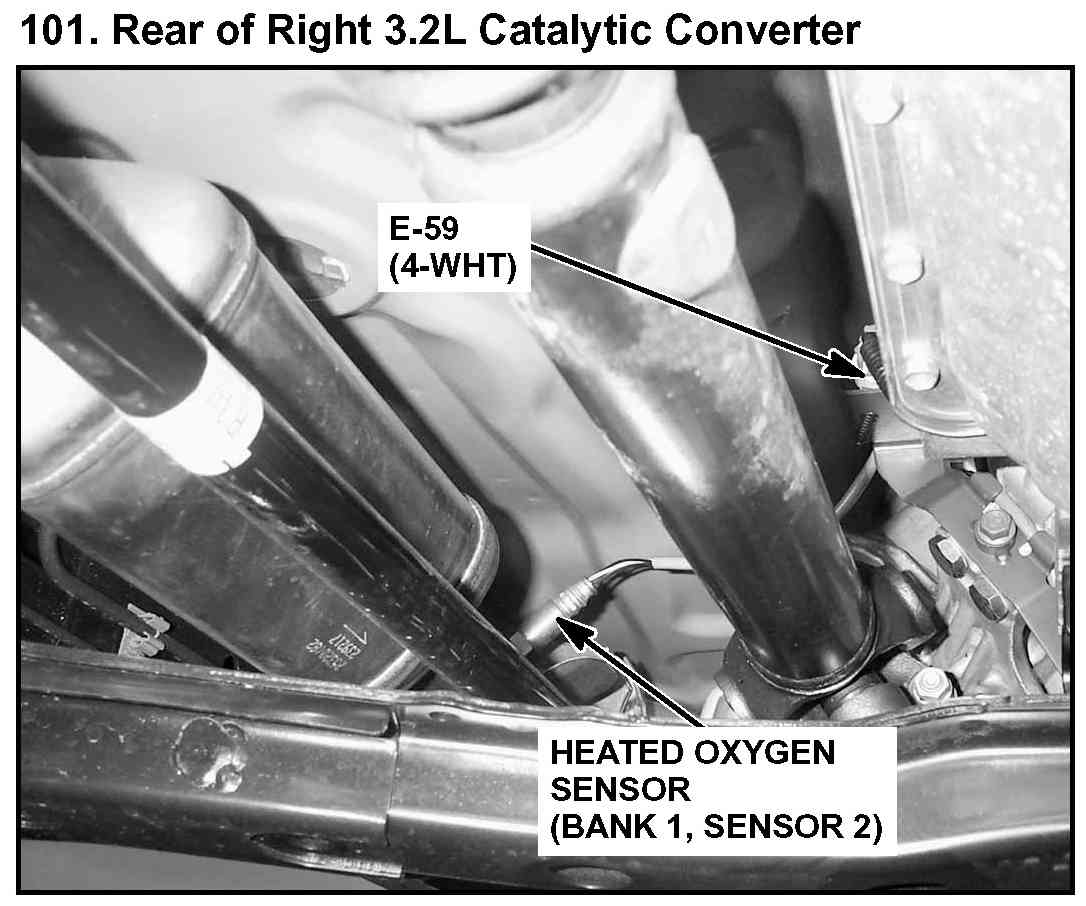

101.Rear Of Right 3.2L Catalytic Converter:
