Cruise Control: Diagrams

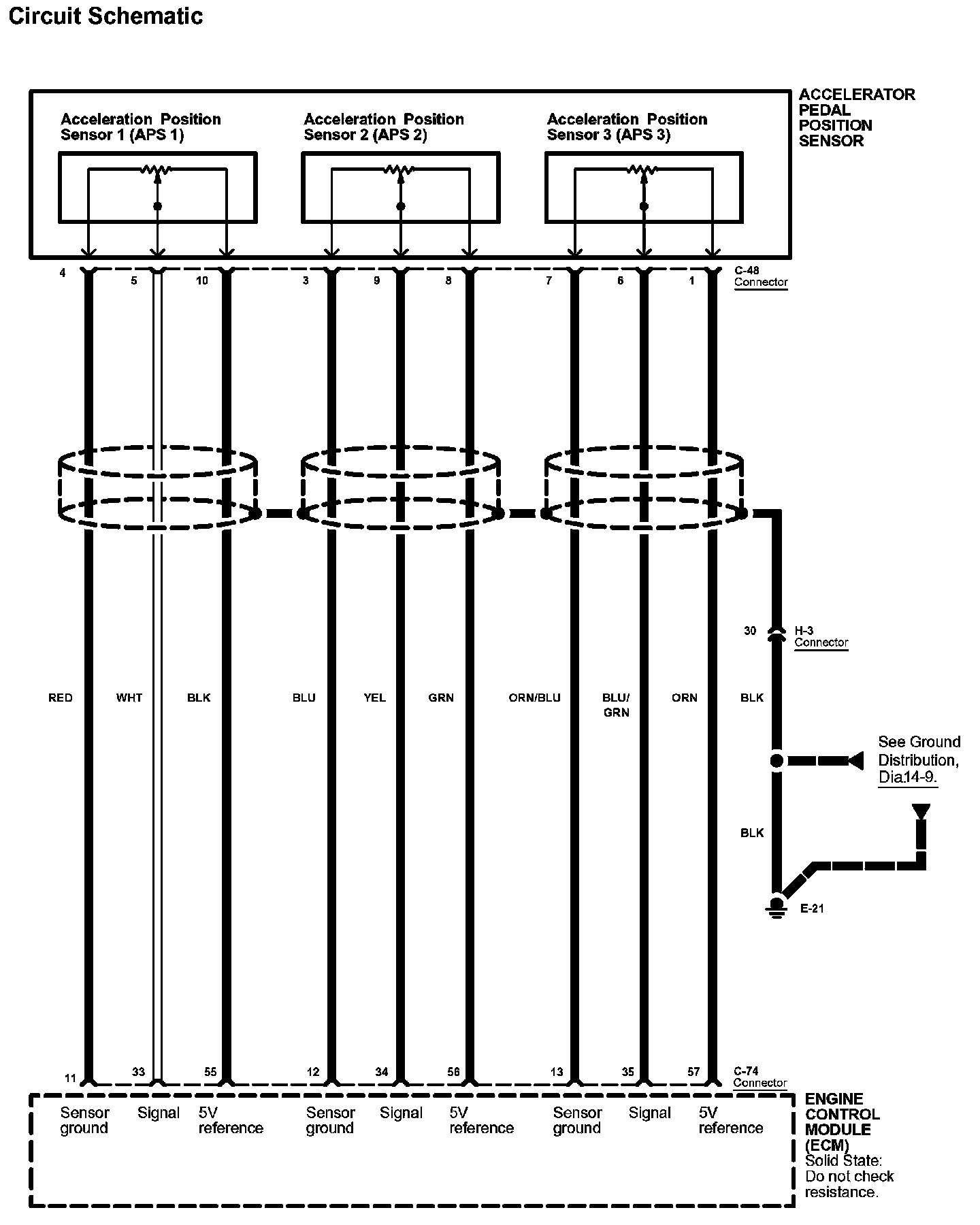

Diagram 34-4:

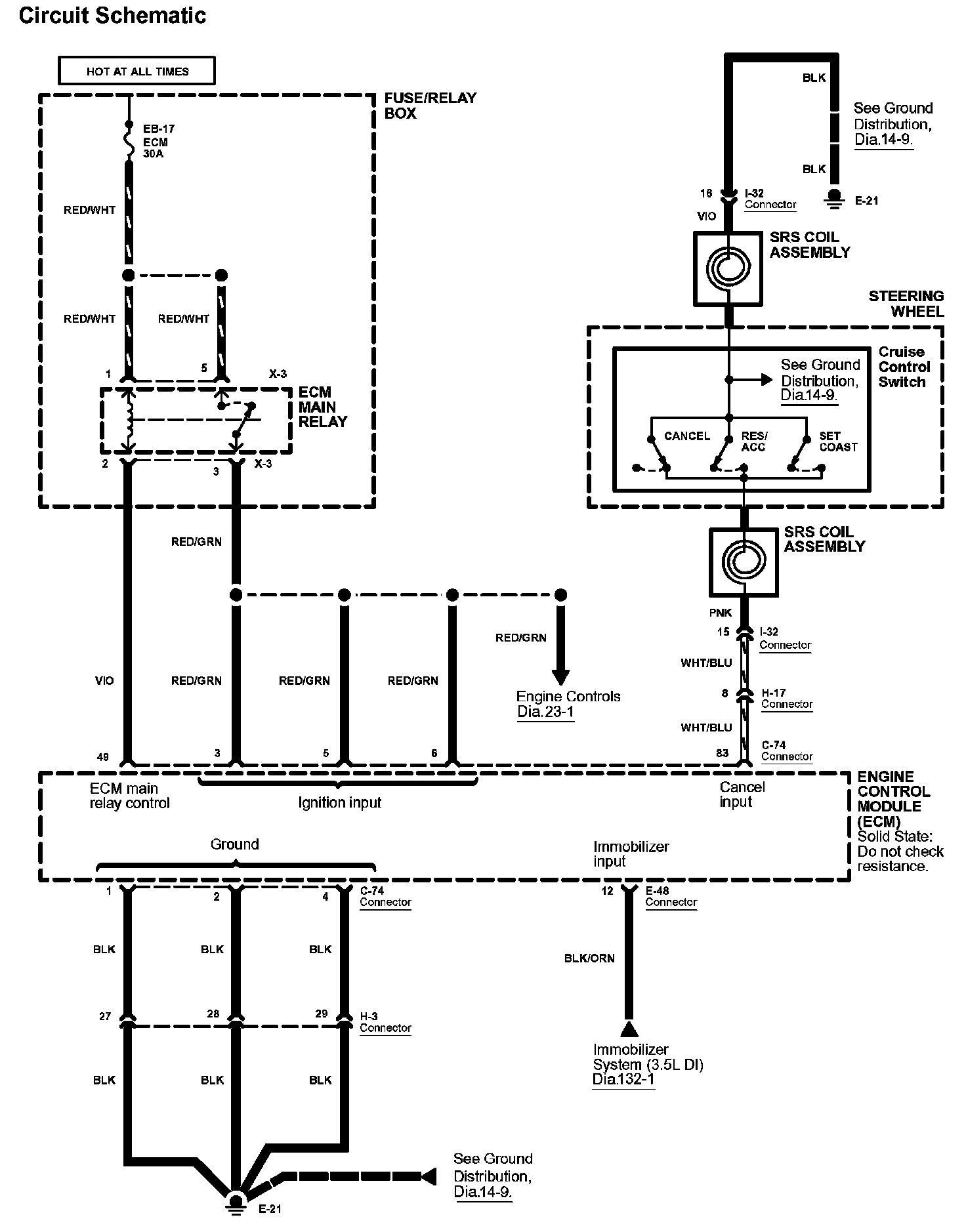

Diagram 34-5:

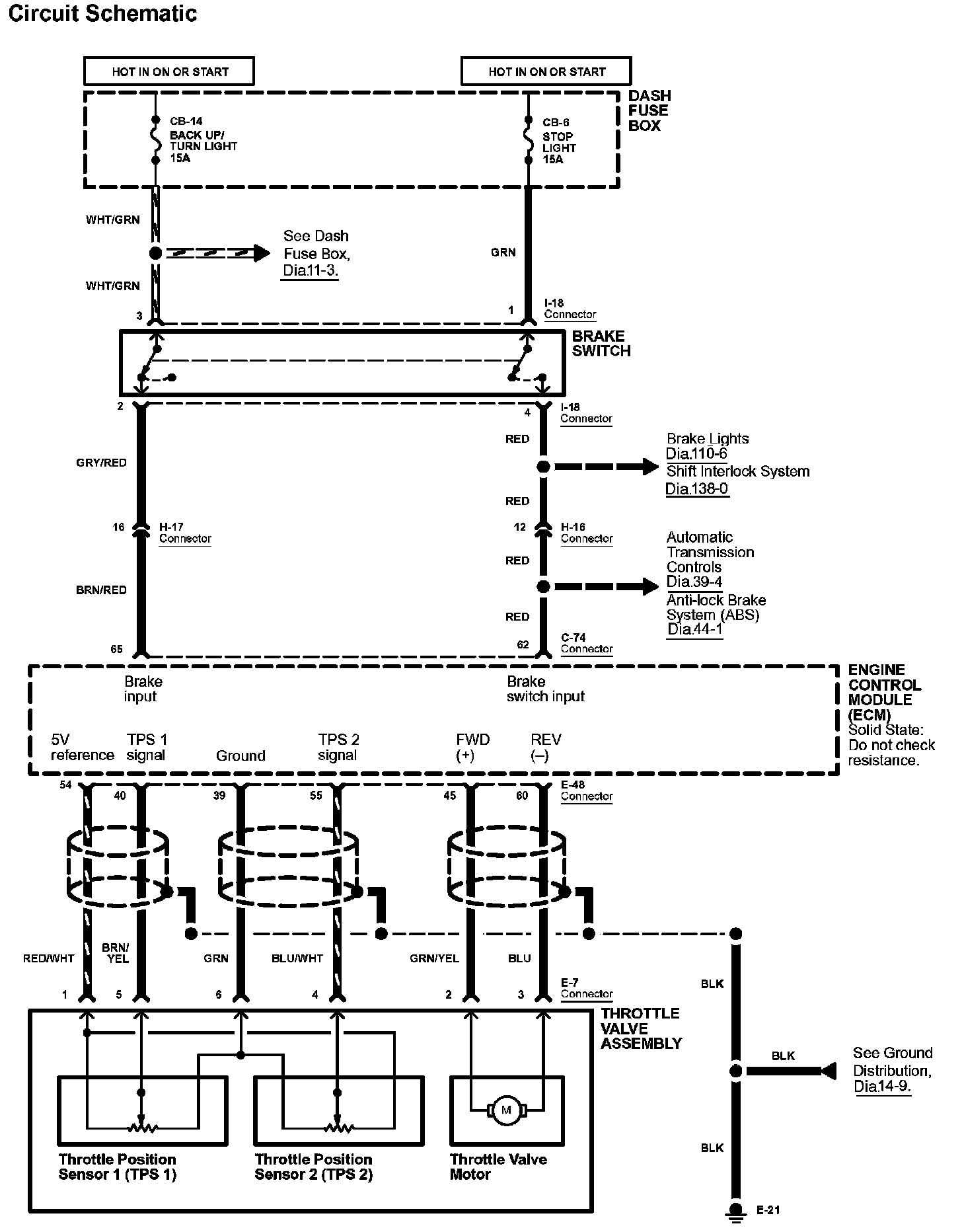

Diagram 34-6:

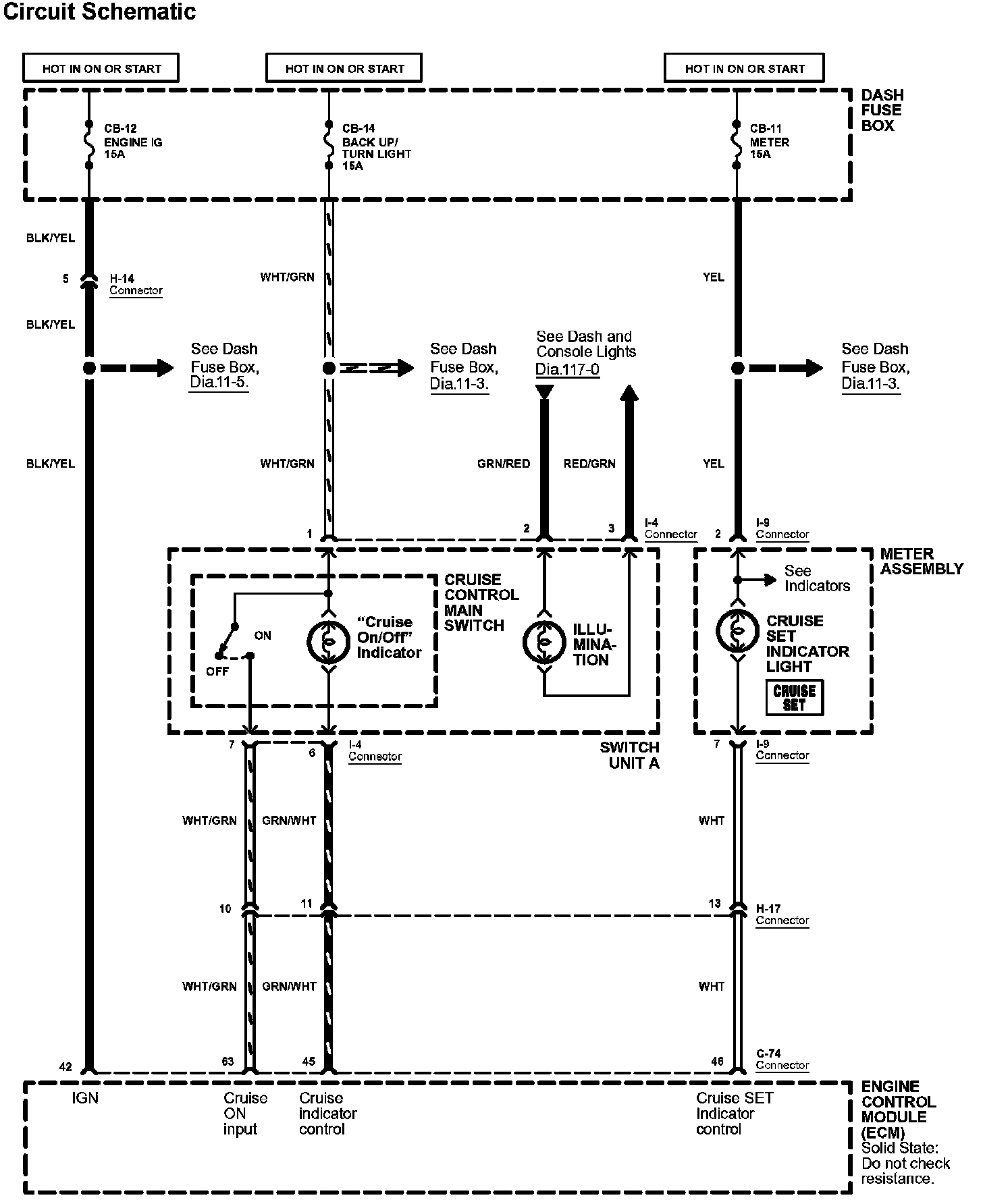

Diagram 34-7:

Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
