Electrical Diagrams

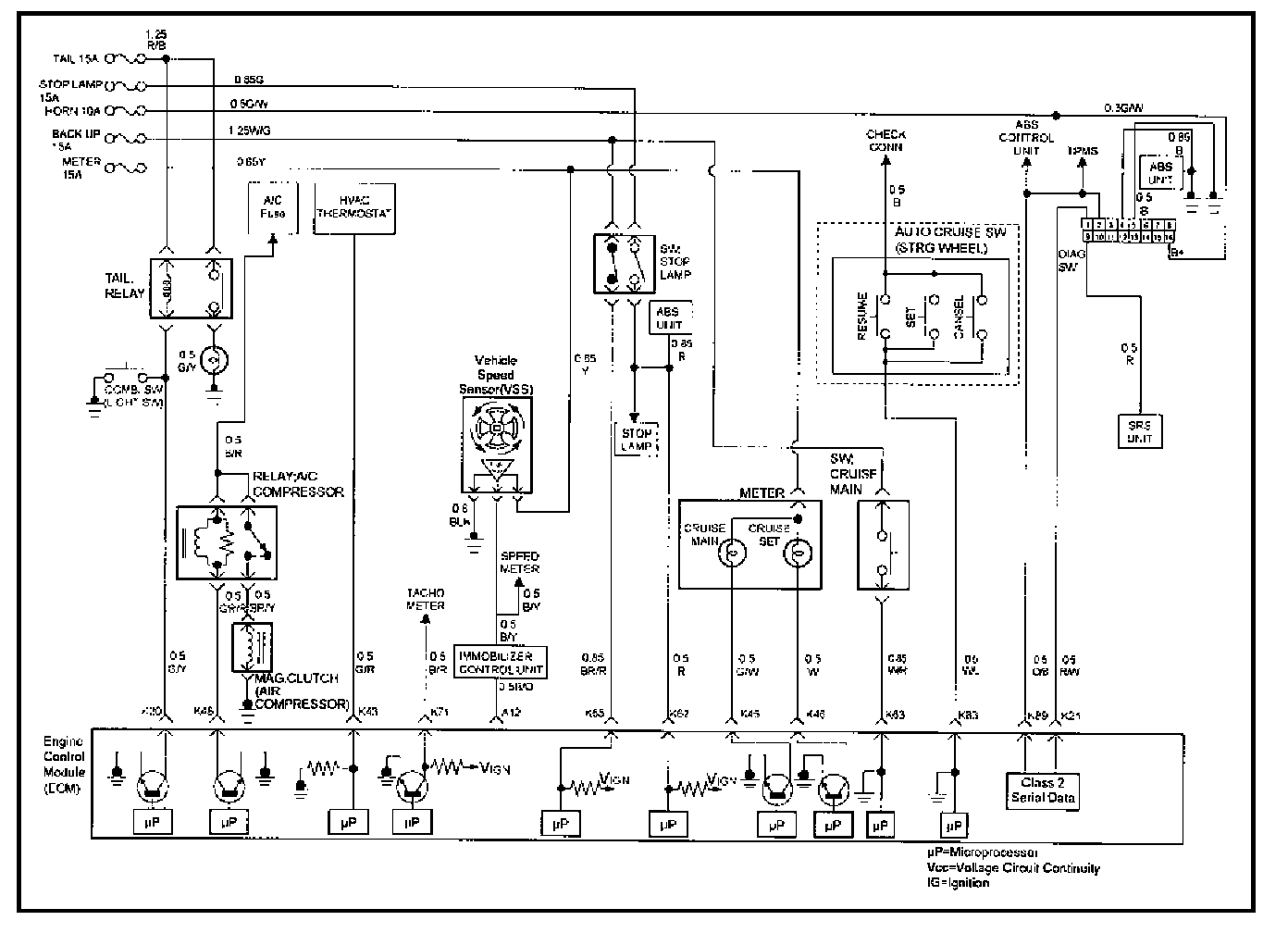

ECM Wiring Diagram Part 1:

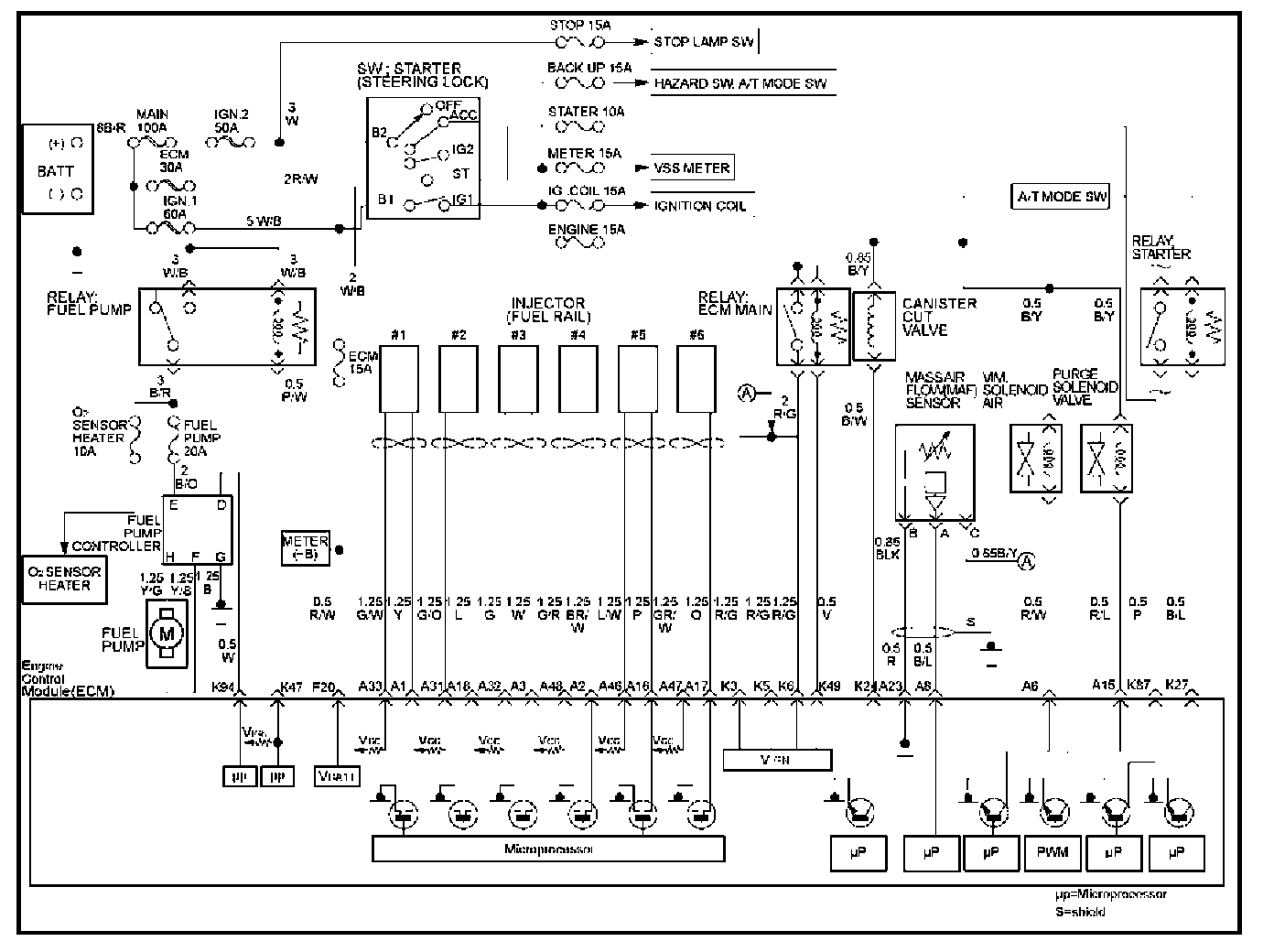

ECM Wiring Diagram Part 2:

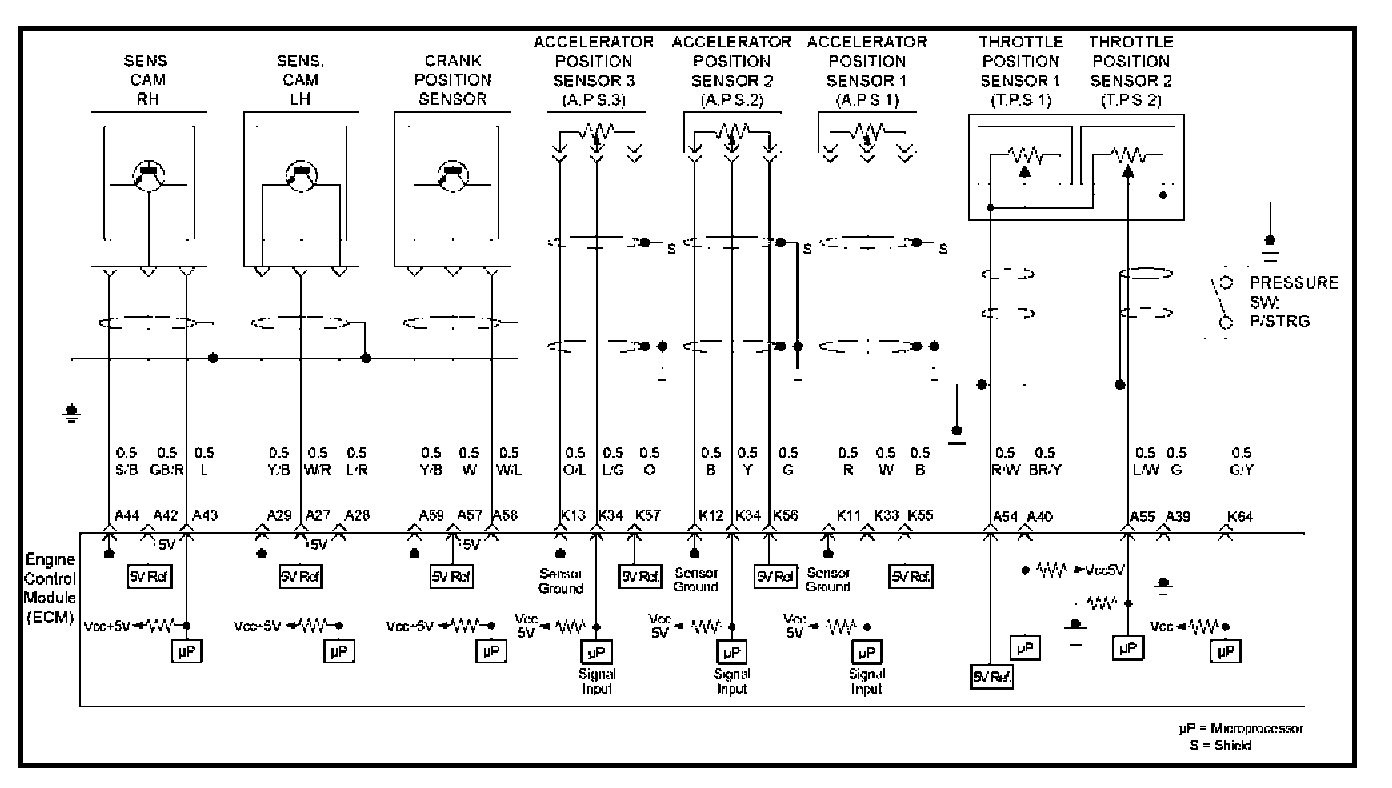

ECM Wiring Diagram Part 3:



ECM Wiring Diagram Part 4:



ECM Wiring Diagram Part 5:



ECM Wiring Diagram Part 6:



ECM Wiring Diagram Part 7:
