Fuel Pressure Sensor: Locations

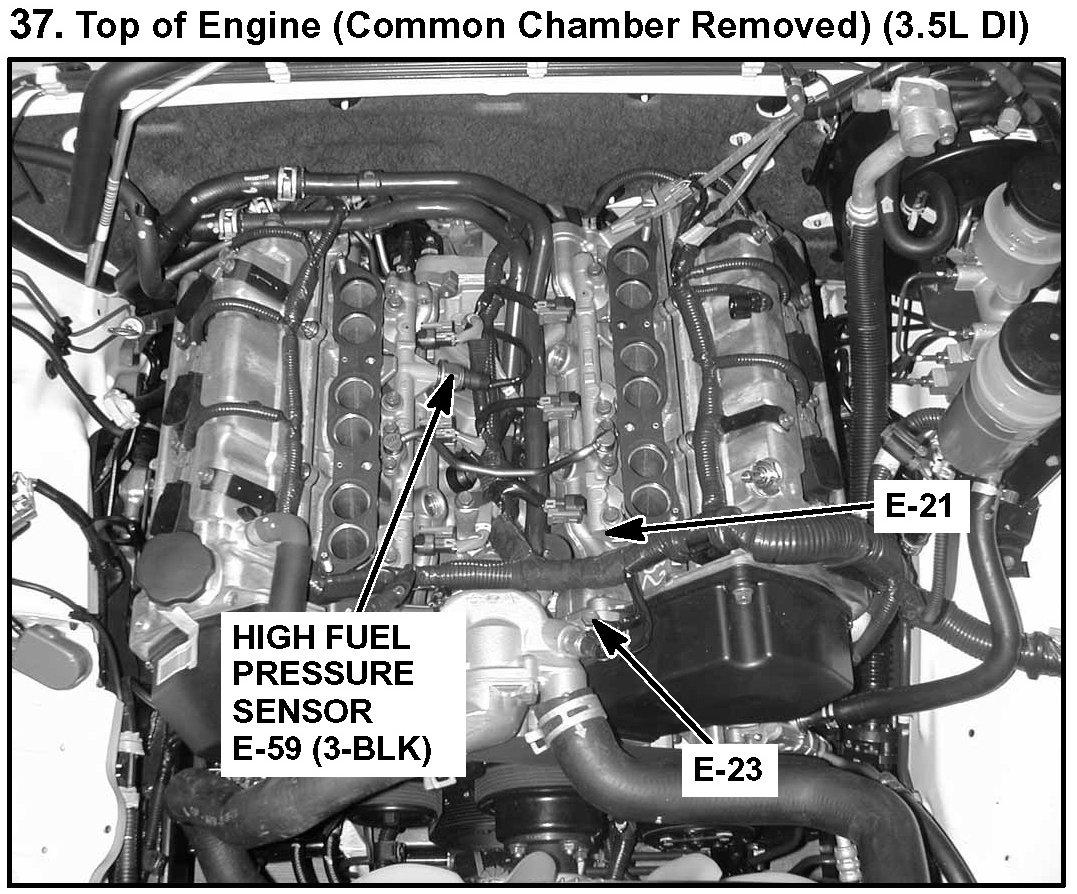

37.Top Of Engine (common Chamber Removed):

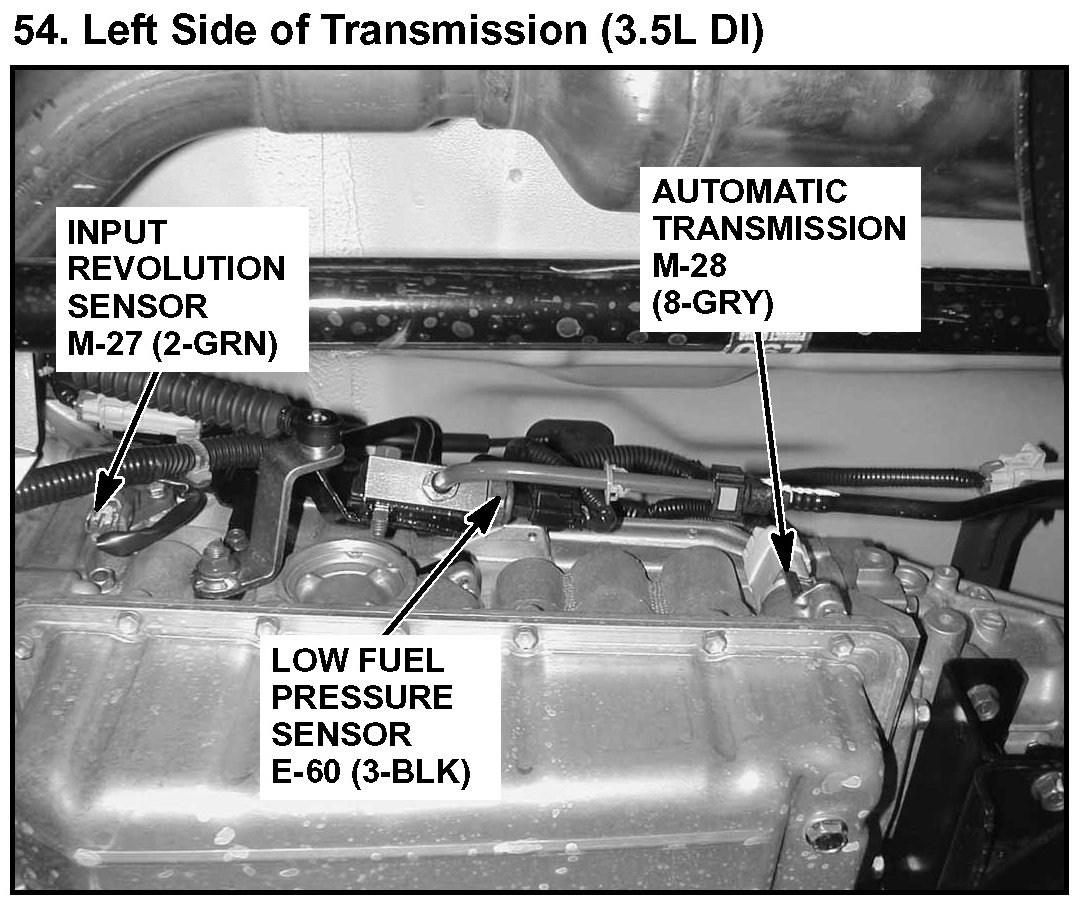

54.Left Side Of Transmission (3.5L DI):
