Flow Chart For Snapshot Replay

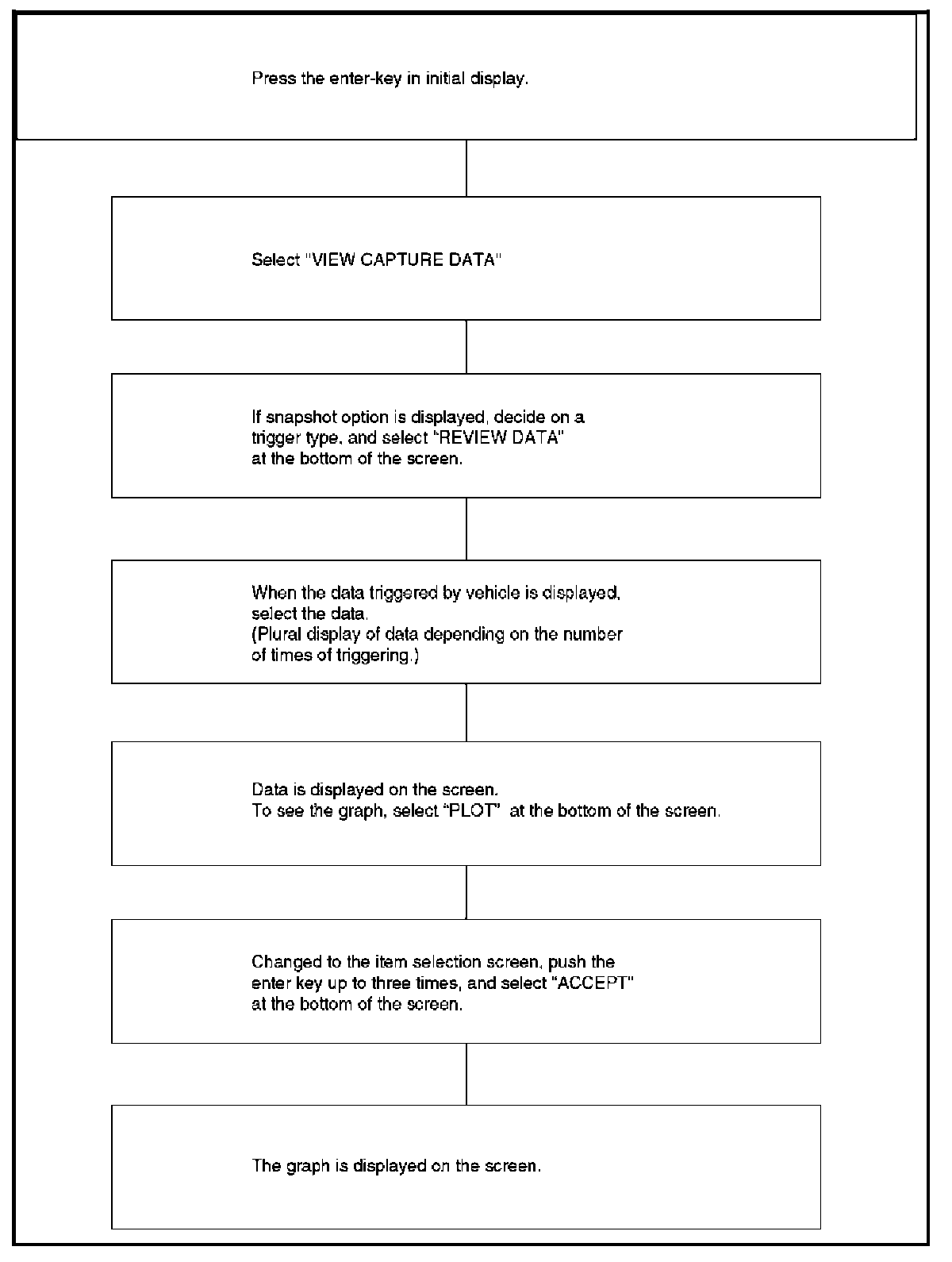

Flow Chart For Snapshot Relay (Plotting Graph):
Flow Chart for Snapshot Replay (Plotting Graph)
