Instrument Test

Instrument Test
This test is conducted check Instrument for proper operation.
Tech 2 must be used for this test.

Test Procedure:
1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is "On".

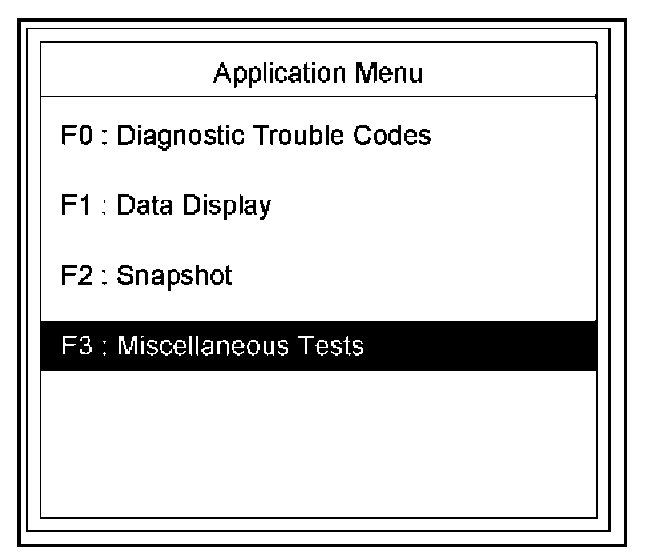

3. Select F3: Miscellaneous Test in the Application Menu.

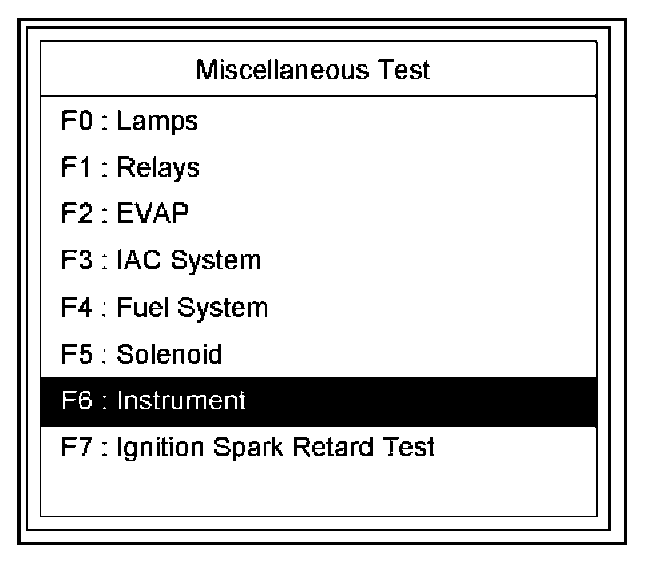

4. Select F6: Instrument Test in the Miscellaneous Test.
5. Push "On" or "Off" soft key.
6. Control Instrument and check data list.
7. If data list changes, the VIM Solenoid is normal.
