Operating Procedure (Example)

Operating Procedure (Example)

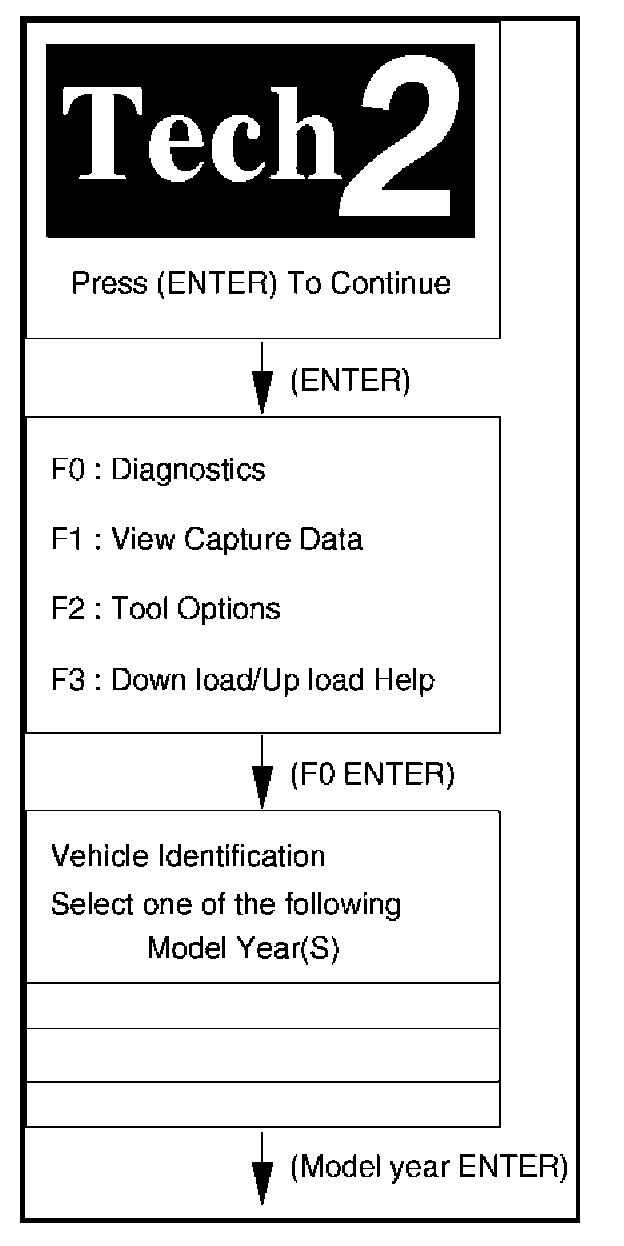

The power up screen is displayed when you power up the Tech 2 with the Isuzu system PCMCIA card.

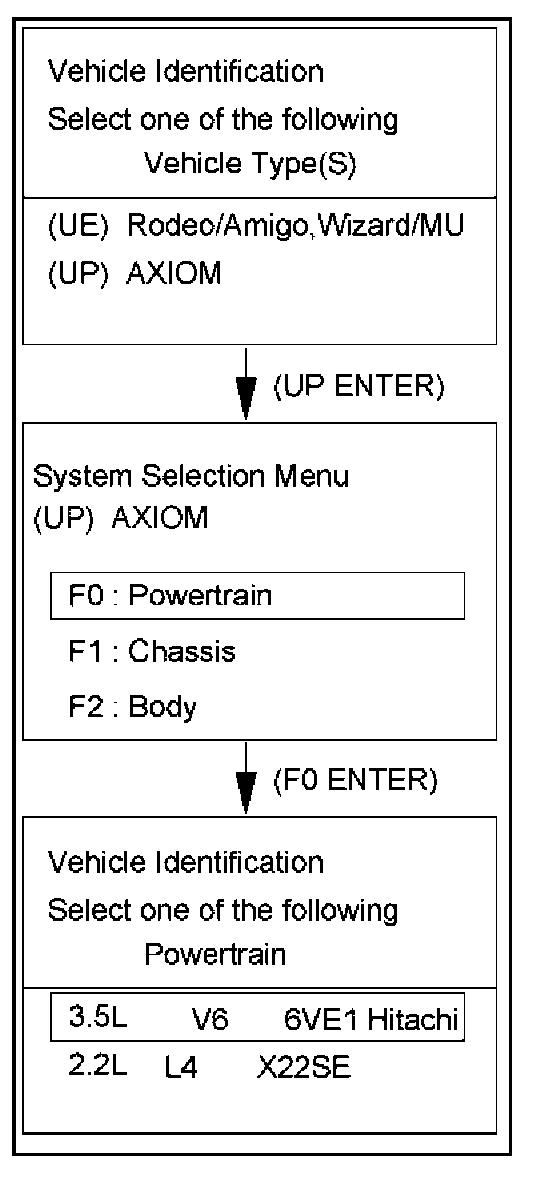

Follow the operating procedure.

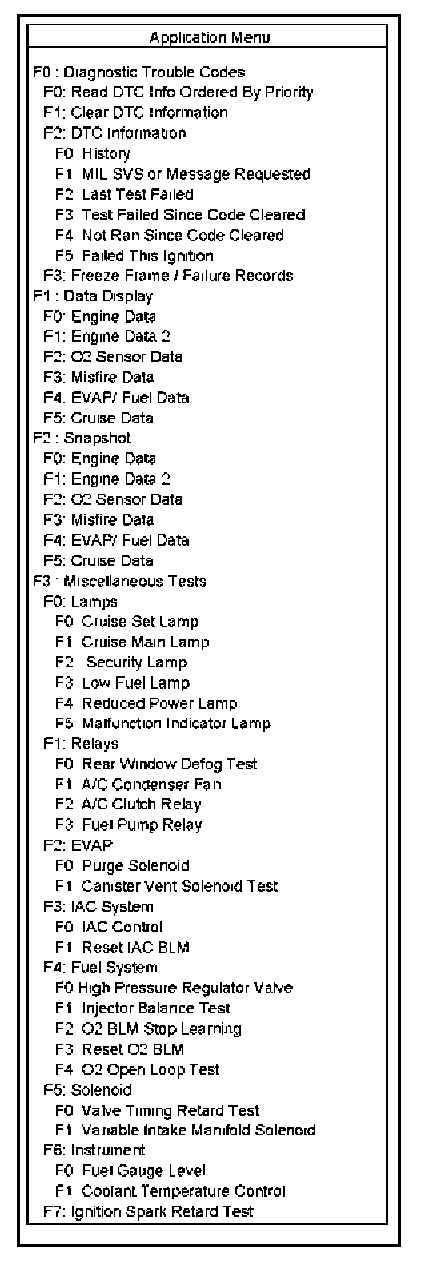

Menu




- The table shows which functions are used for the available equipment versions.
