Lamps Test

Lamps Test
This test is conducted check MIL and Low Fuel Lamp for its working.

Tech 2 must be used for this test.

Test Procedure:
1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.

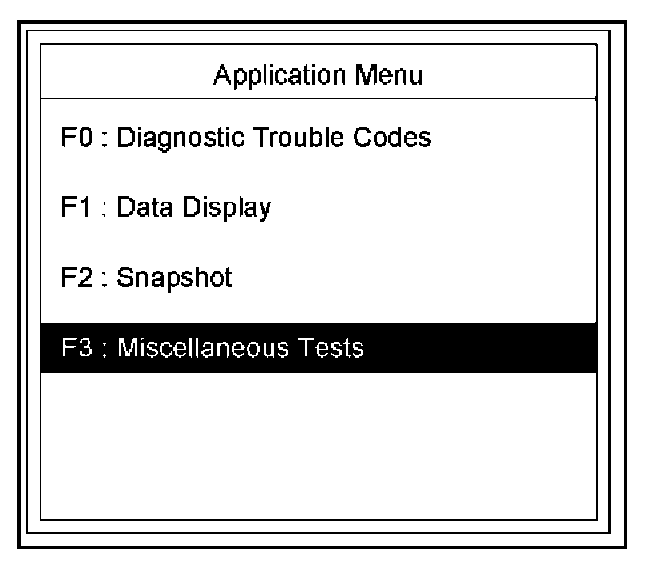

3. Select F3: Miscellaneous Test in the Application Menu.

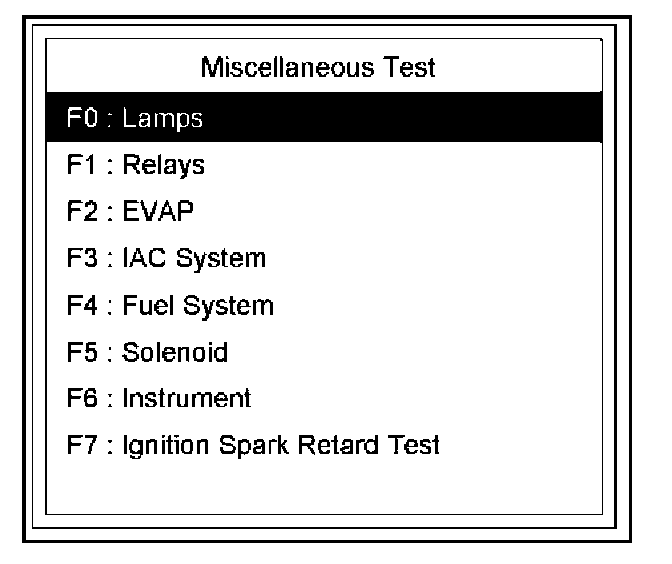

4. Select F0: Lamps Test in the Miscellaneous Test.
5. Select F0: Malfunction Indicator Lamp.
6. Push "On" soft key.
7. Make sure Lamp illuminates.
8. If Lamp illuminates, the Lamp is operating correctly.
9. Select F1: Cruise Set Lamp.
10. Push "On" soft key.
11. Make sure Lamp illuminates.
12. If Lamp illuminates, the Lamp is operating correctly.
