Engine Control Module

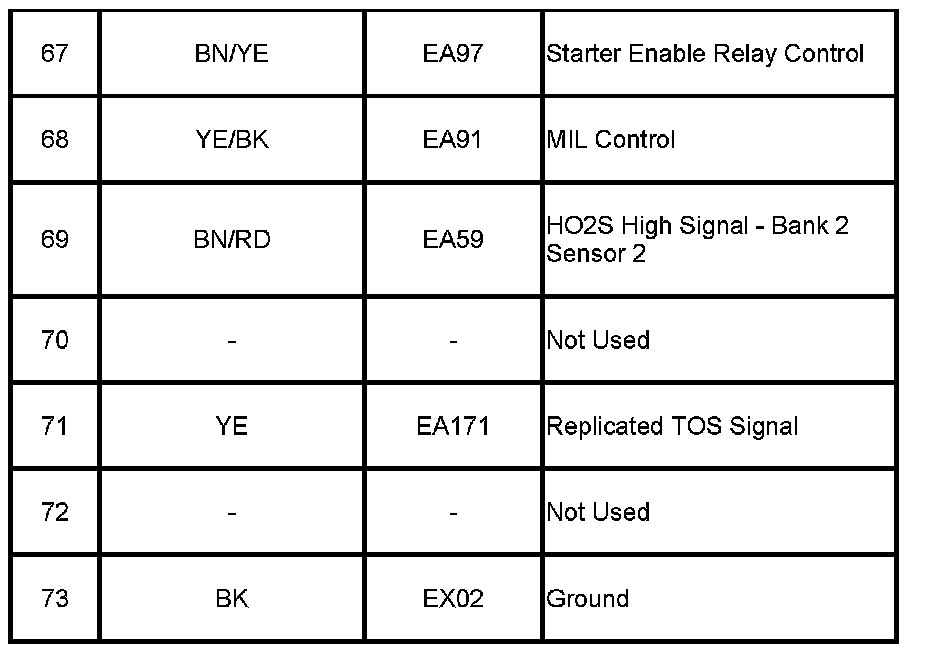

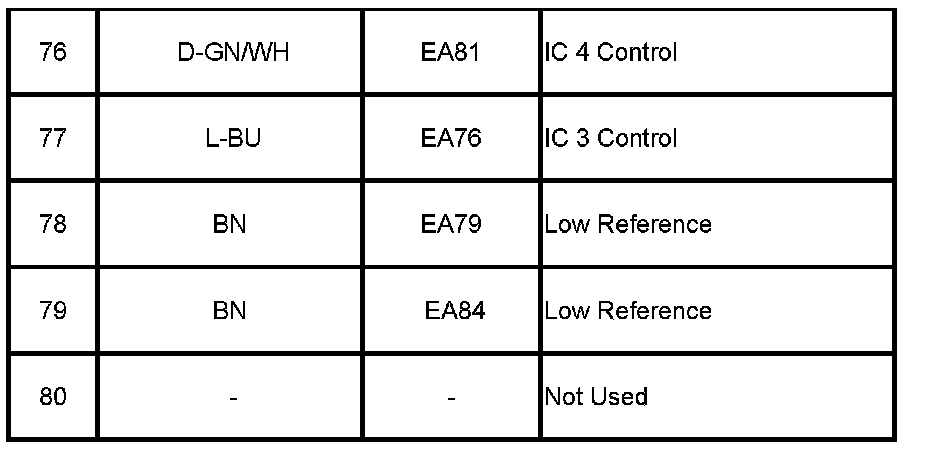

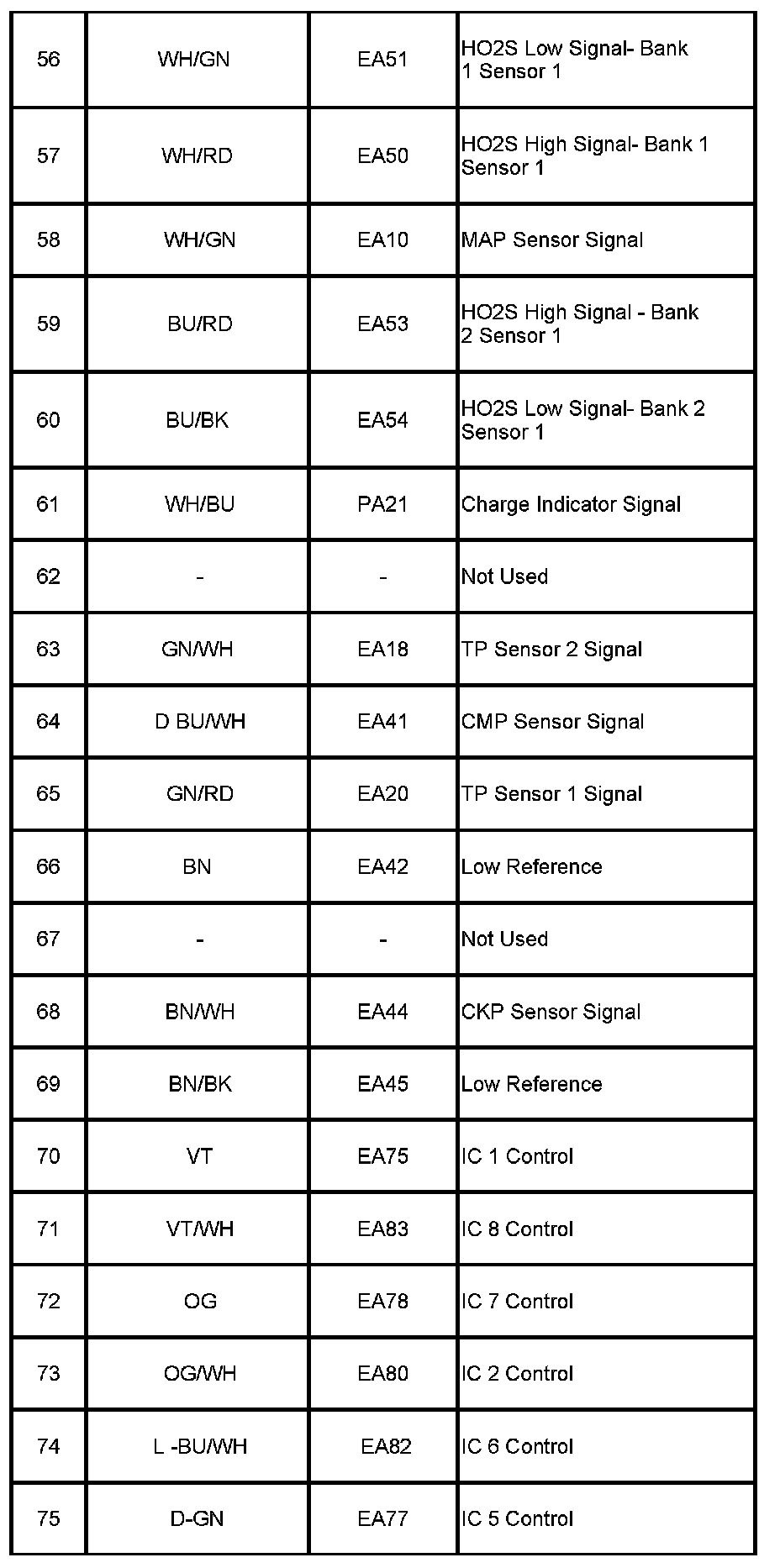

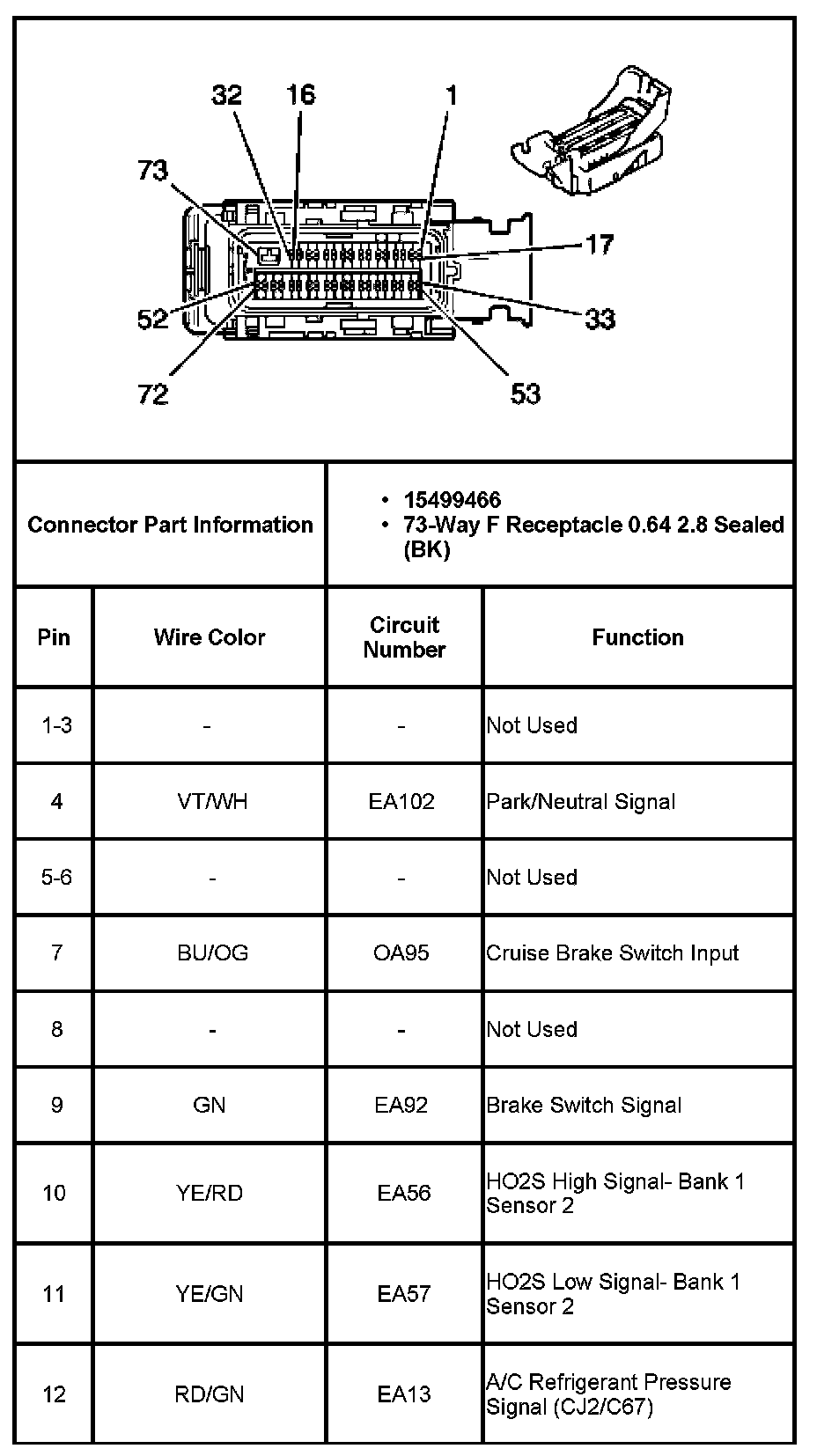

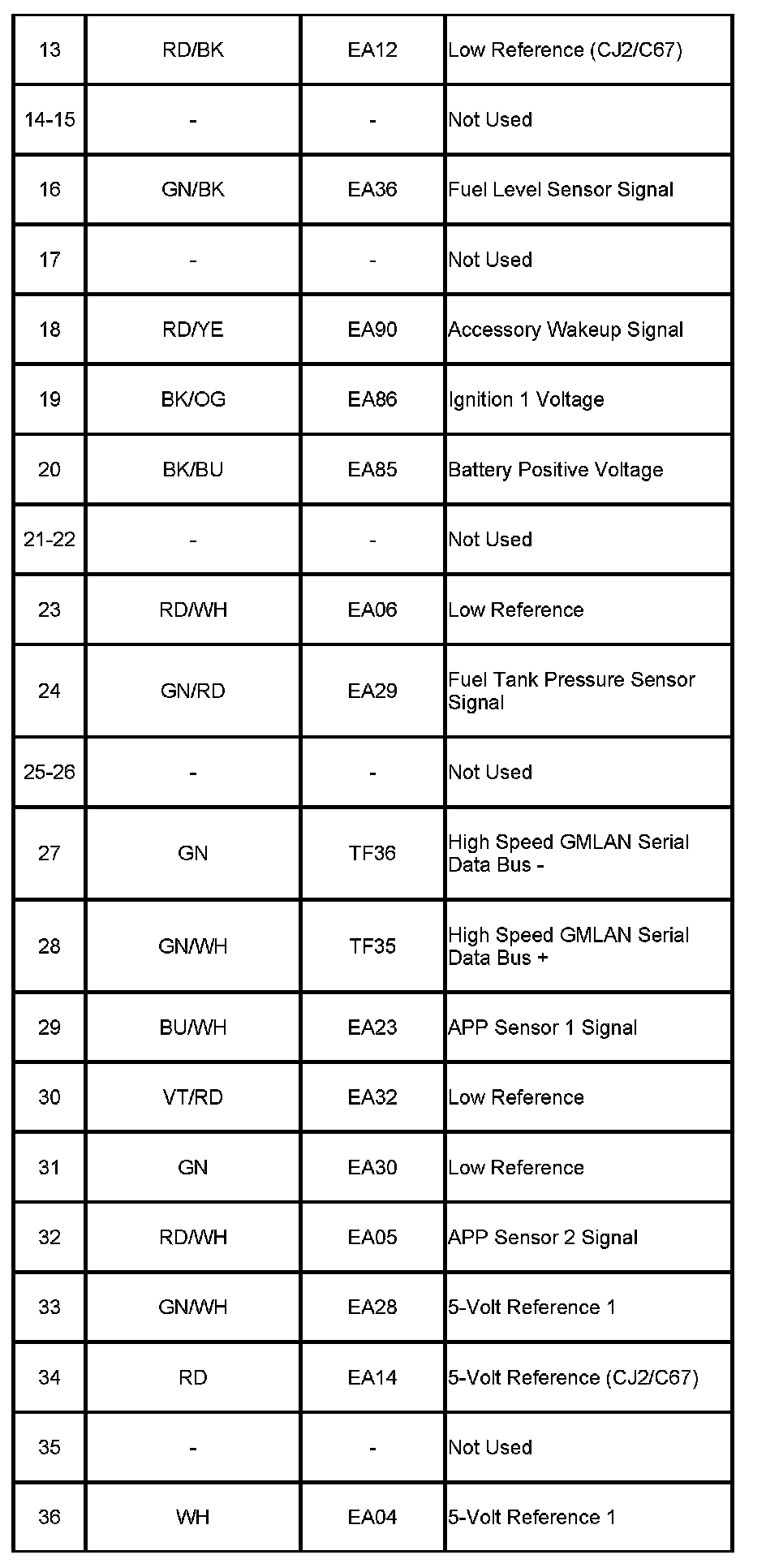

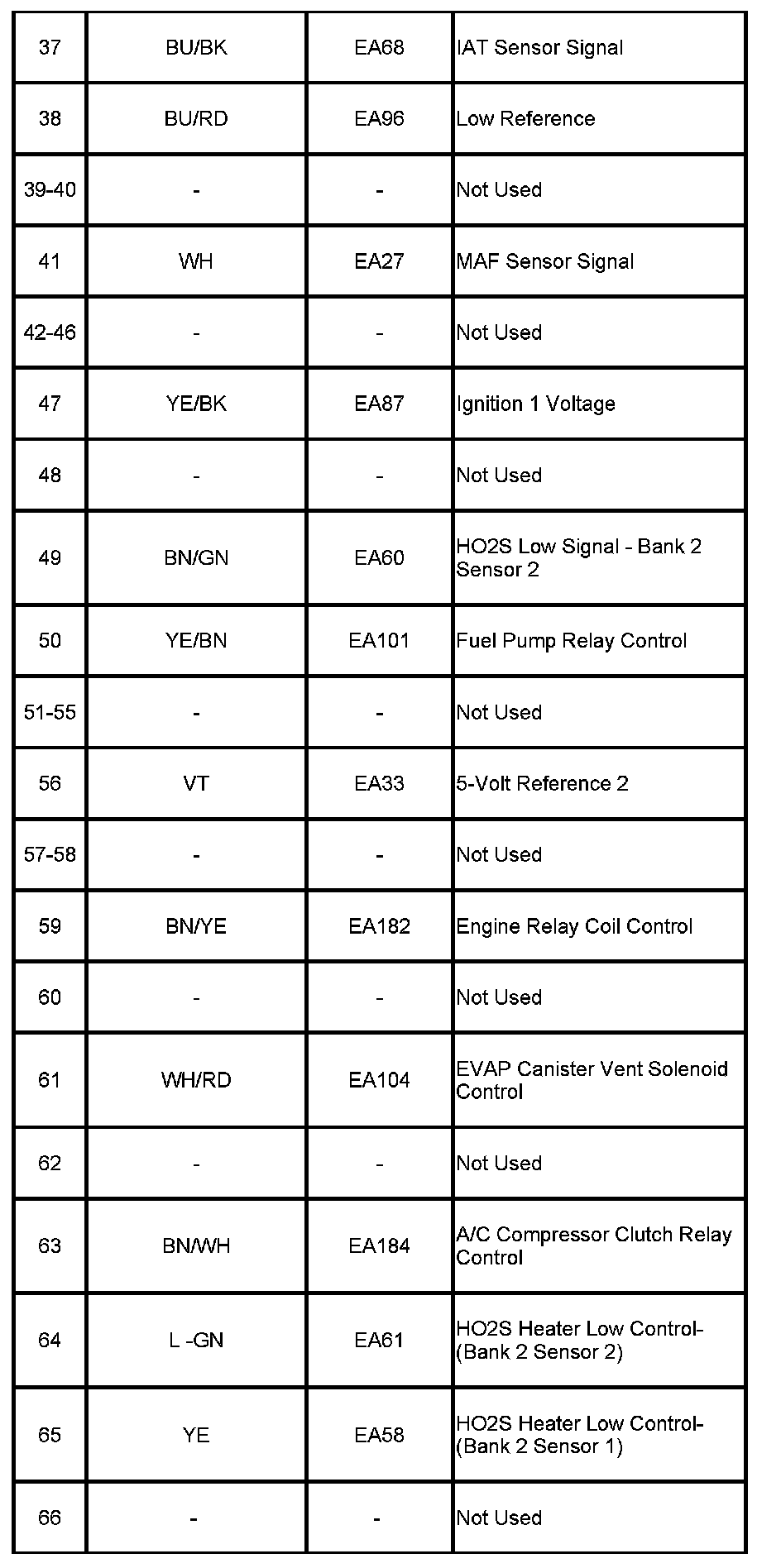

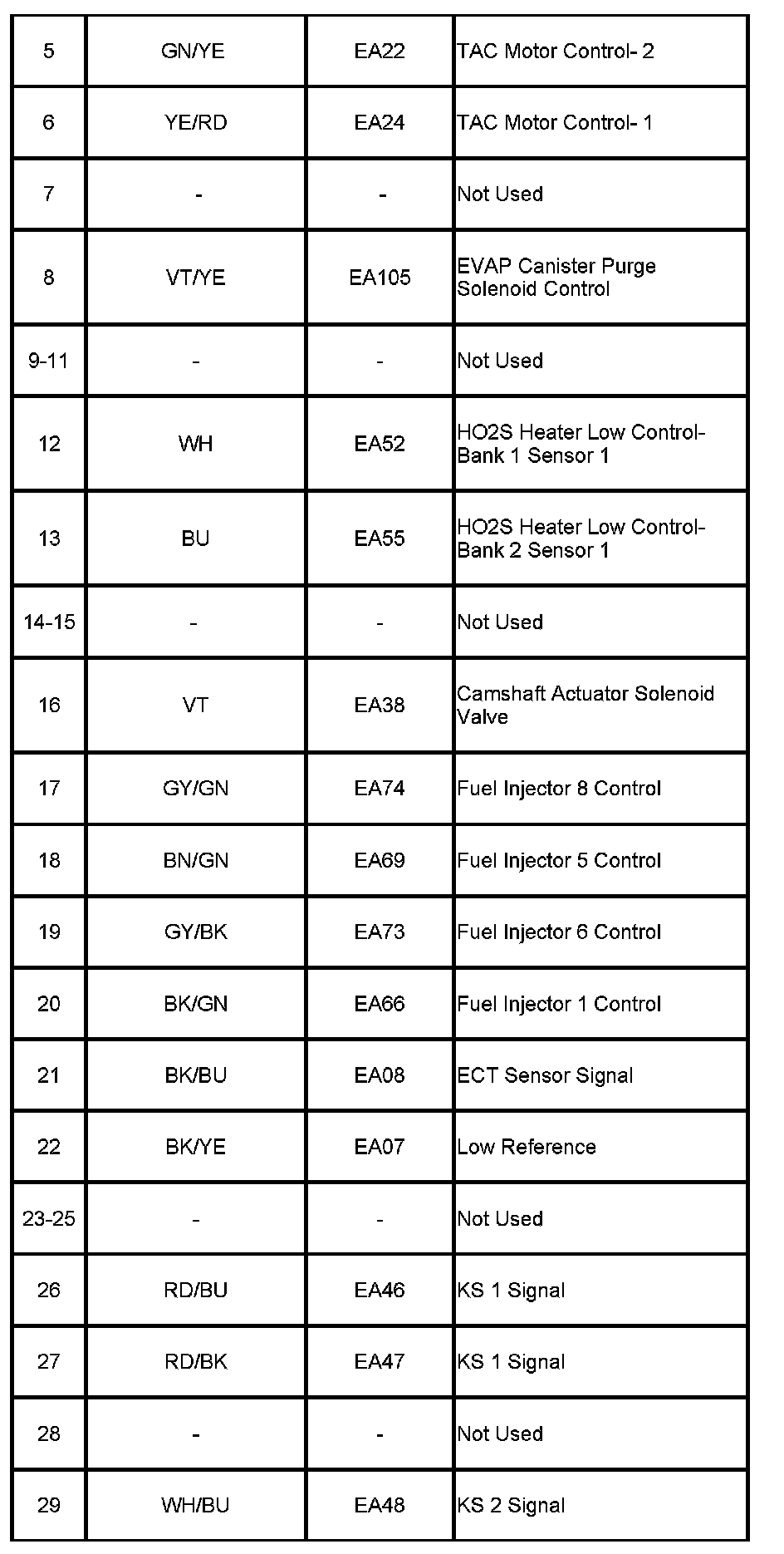

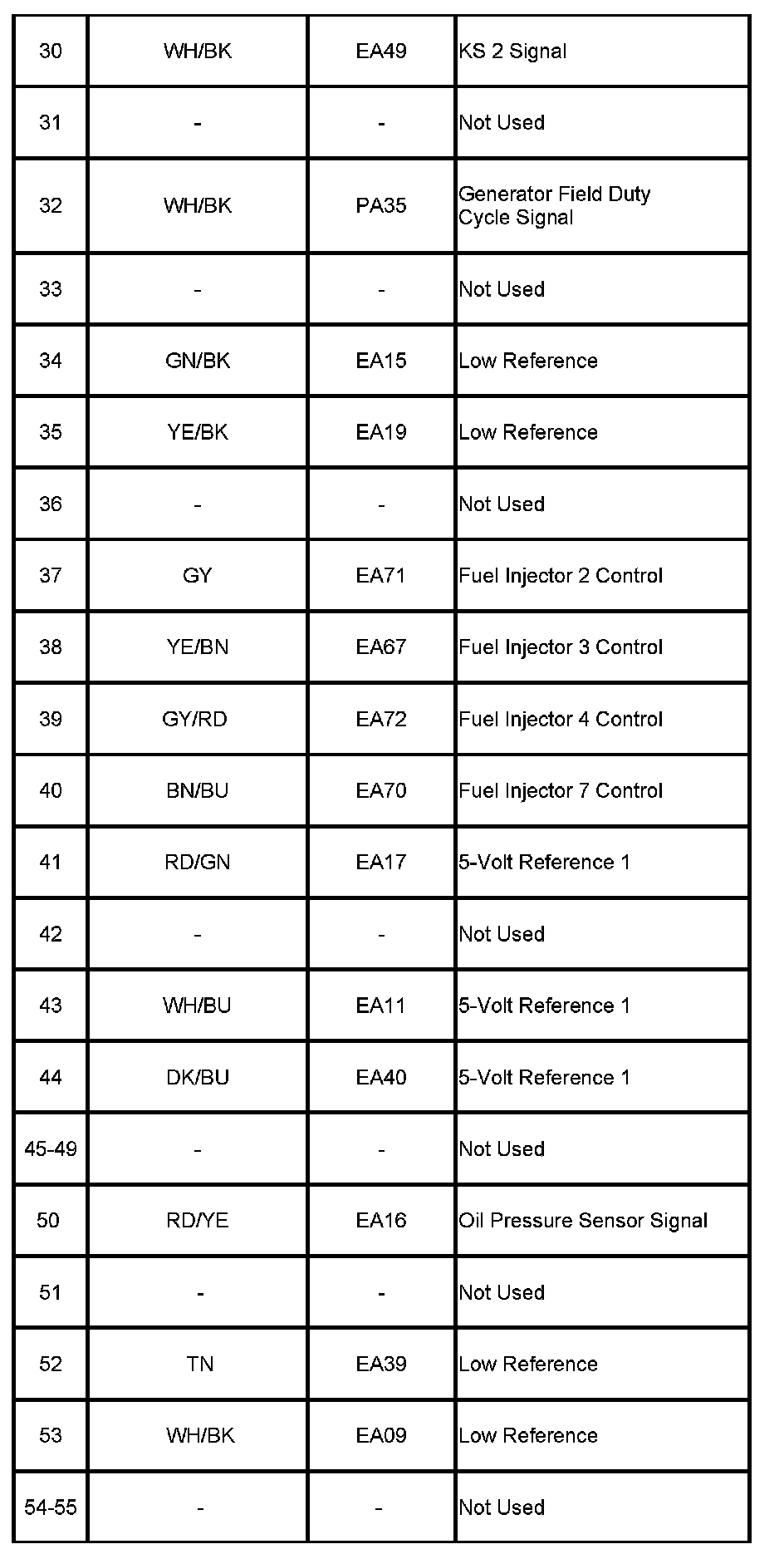

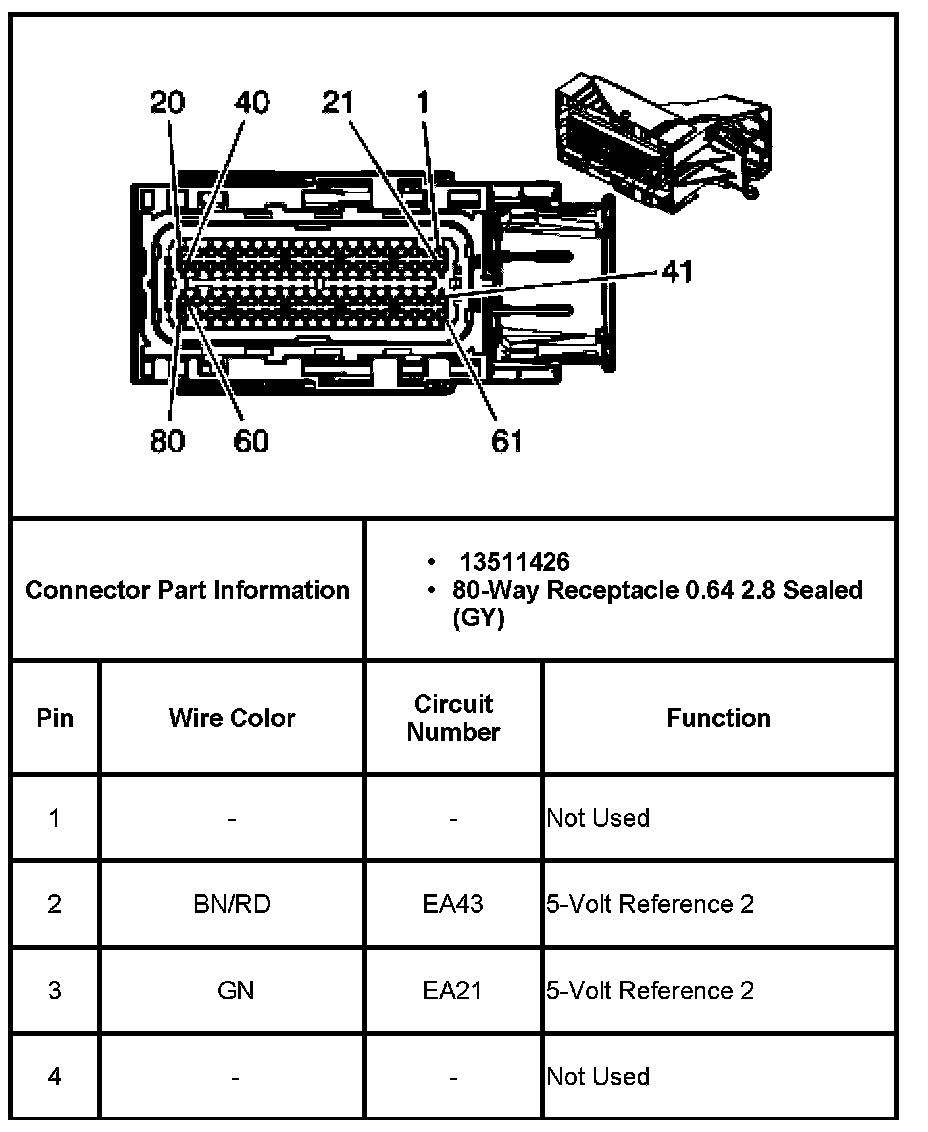

Engine Control Module (ECM) Connector End Views

Engine Control Module J-131


















Engine Control Module E-95
