Insulation Test

Using a 110-volt A.C. supply and a 15-watt test lamp, check for insulation between one of the slip rings and rotor frame. See Fig 1. If lamp lights, rotor is shorted.

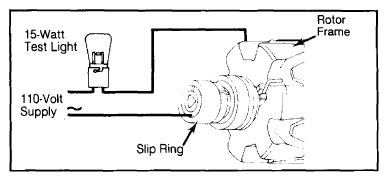

Fig 1: Checking Insulation with a 110-Volt Test Lamp

Courtesy of NOT AVAILABLE

15-Watt lamp should not light  .
