Stator Tests

1. Connect 12-volt battery and 36-watt test lamp to 2 of the stator connections. Repeat test using any other combination of 2 of the 3 connections. If lamp fails to light in either test, stator has an open coil.
2. Using 110-volt, 15-watt test lamp, check for insulation between any one of the 3 stator connections and stator laminations. See Fig 1. If lamp lights, stator should be replaced.

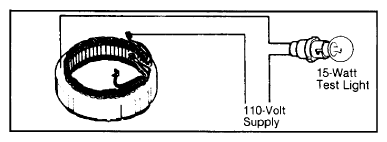

   Fig 1: Testing Stator Assembly Insulation

   Courtesy of NOT AVAILABLE

Wires at each connection should be soldered  .
