Air Injection System: Description

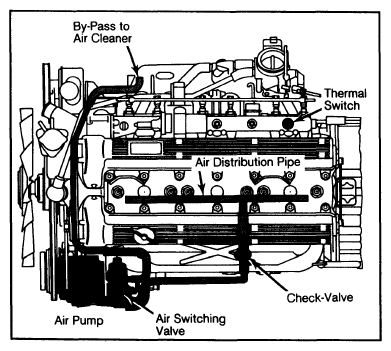

Air injection is used during warm-up to improve performance and reduce emissions. The engine is equipped with fuel injection with feedback system (oxygen sensor), so air injection cannot be used while oxygen sensor is operating. System includes a thermal switch, check valve, air injection switching module, air switching valve, check valve, diverter valve, air rails and air pump.
