Throttle Switch

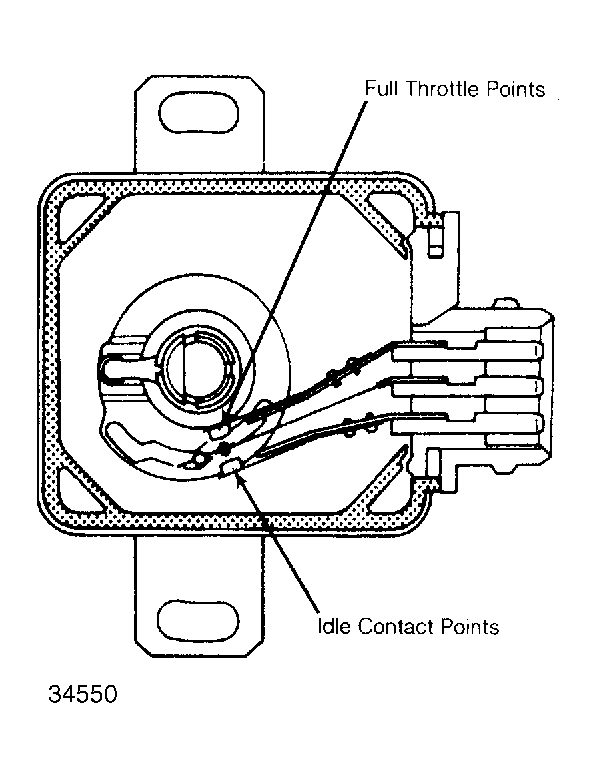

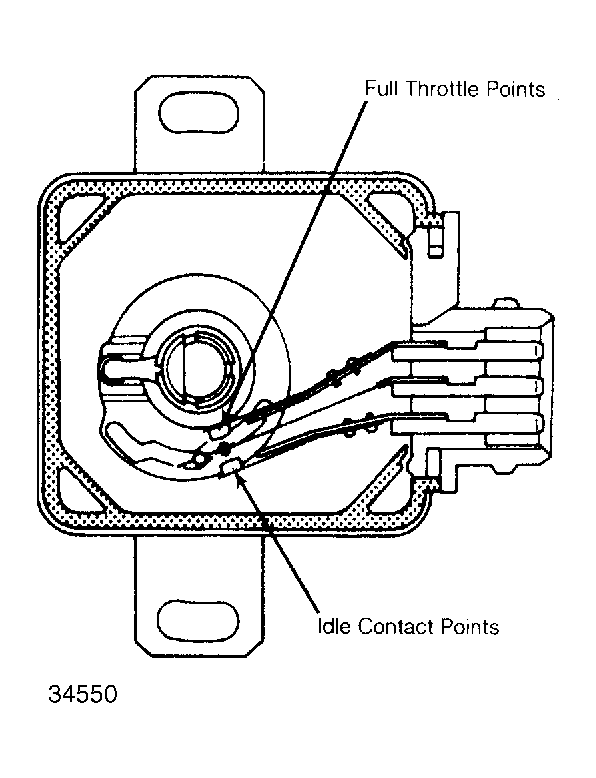

A contact type throttle switch is installed on throttle chamber. The throttle switch sends information on throttle position to ECU. On the contact switch, signals are sent when throttle is at idle or full throttle positions. See Figure .
