Fuel Injection System - LUCAS/BOSCH AFC: Wiring Diagram

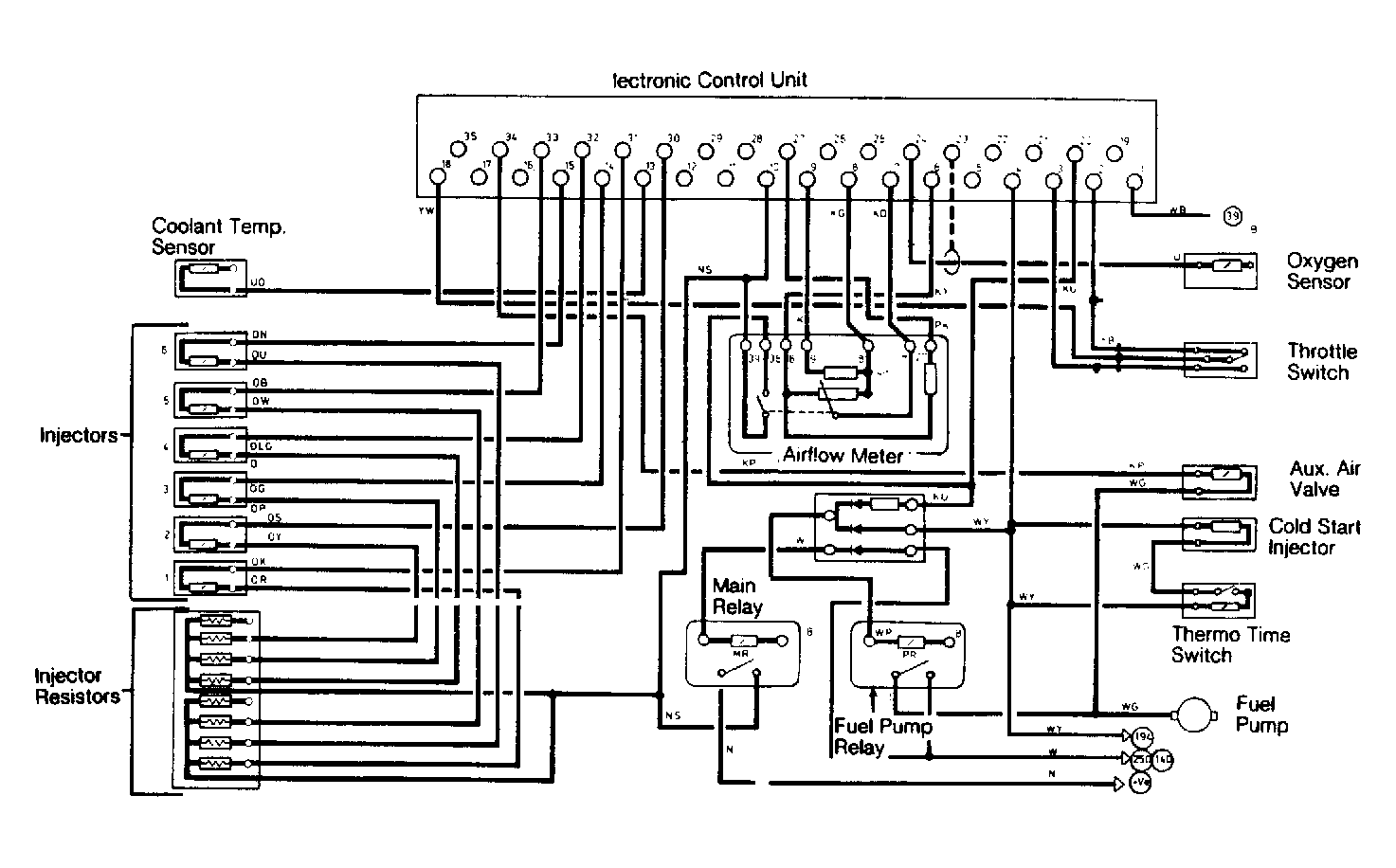

Fig 1: Fuel Injection Wiring Diagram (XJ6)
G62370Courtesy of JAGUAR CARS, INC.
