Distributor (XJS): Installation

Ensure distributor rotor-to-housing marks are aligned. See Fig 1 . Install distributor. To complete installation, reverse removal procedure.

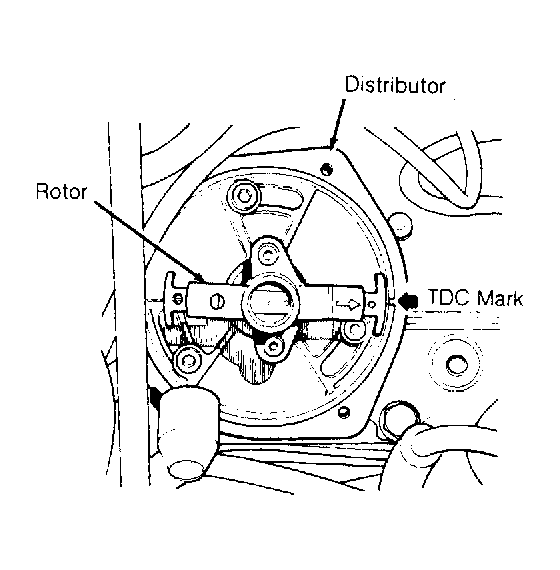

Fig 1: Identifying Distributor Alignment Marks (XJS)
G91F17140Courtesy of JAGUAR CARS LTD.
