Firing Order & Distributor Rotation

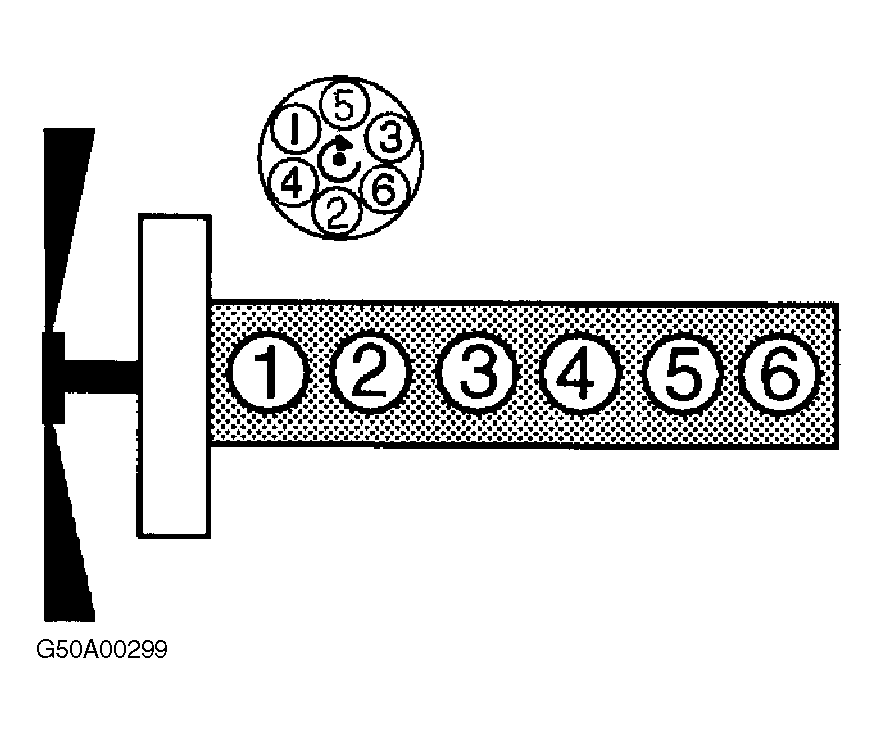

Fig 1: Firing Order & Distributor Rotation (4.0L 6-Cylinder)

G50A00299
