Fuel Pressure Release

  1. Disconnect fuel pump relay in right front corner of trunk. Relay is front-most relay (Silver relay with Yellow Connector).
  2. Start engine and let idle until engine stalls. Turn ignition off. Install fuel pump relay.

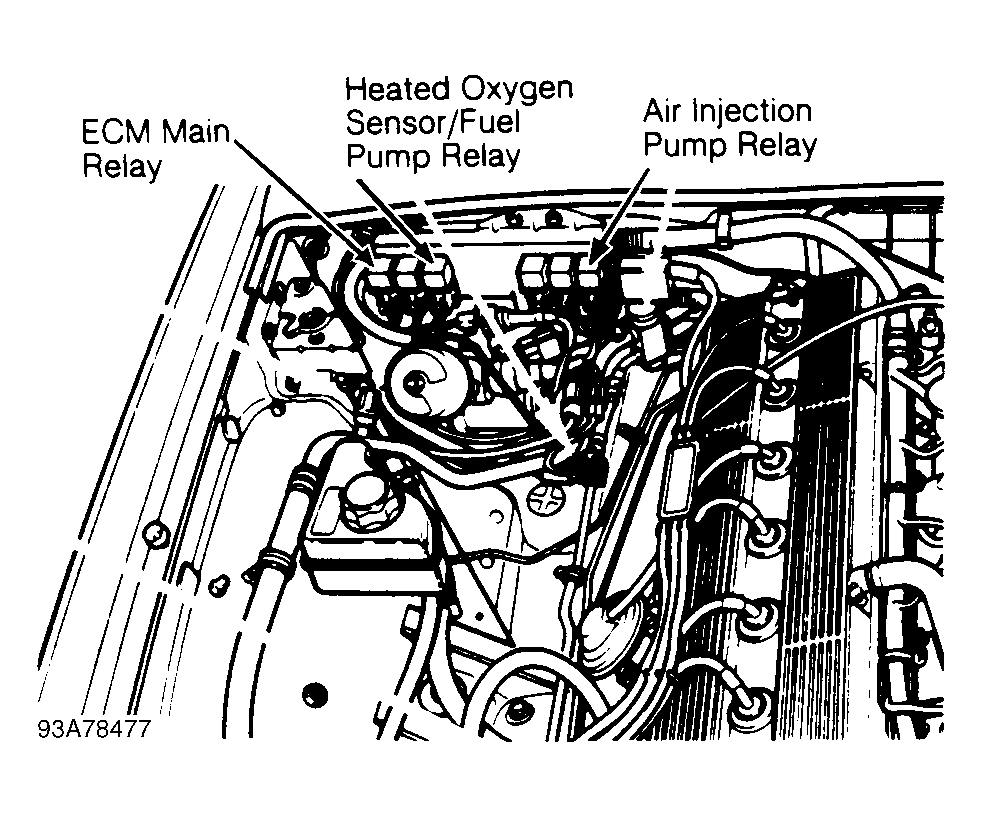

Fig 1: Locating Heated Oxygen Sensor/Fuel Pump Relay (XJ6)
G93A78477Courtesy of JAGUAR CARS, INC.
