Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

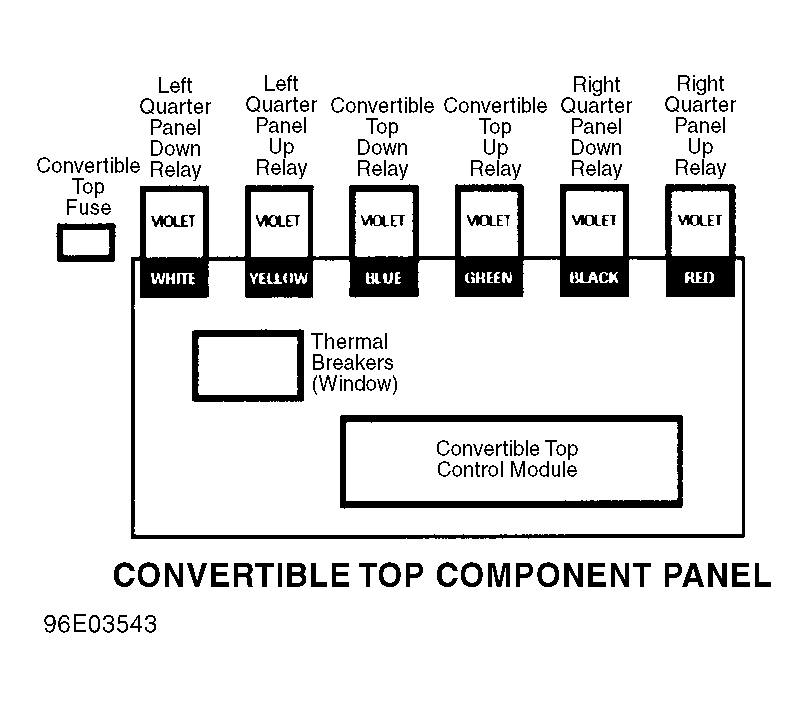

Convertible Top Fuse On component panel (convertible top). See Figure .

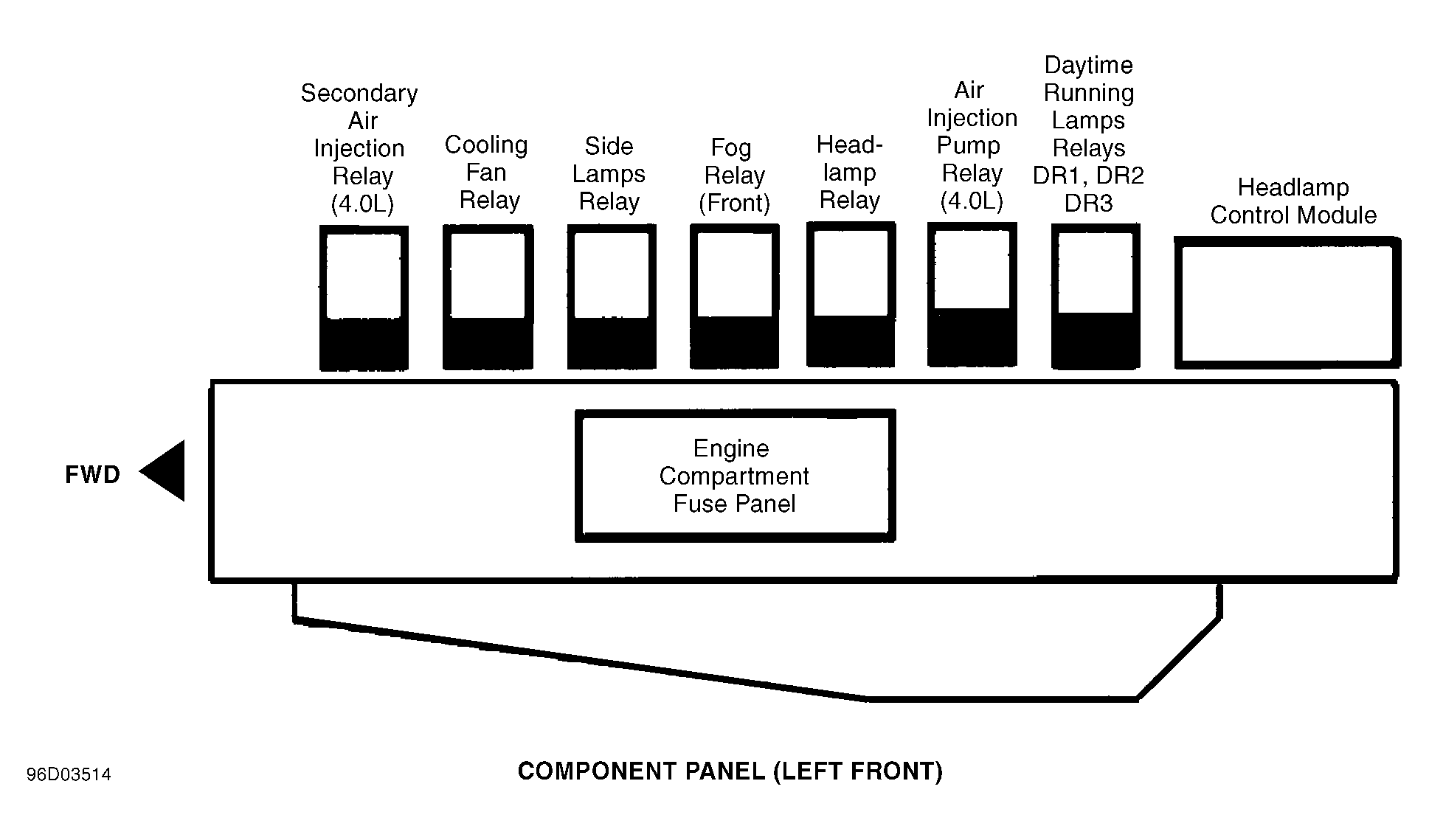

Engine Compartment Fuse Panel On component panel (left front). See Figure .

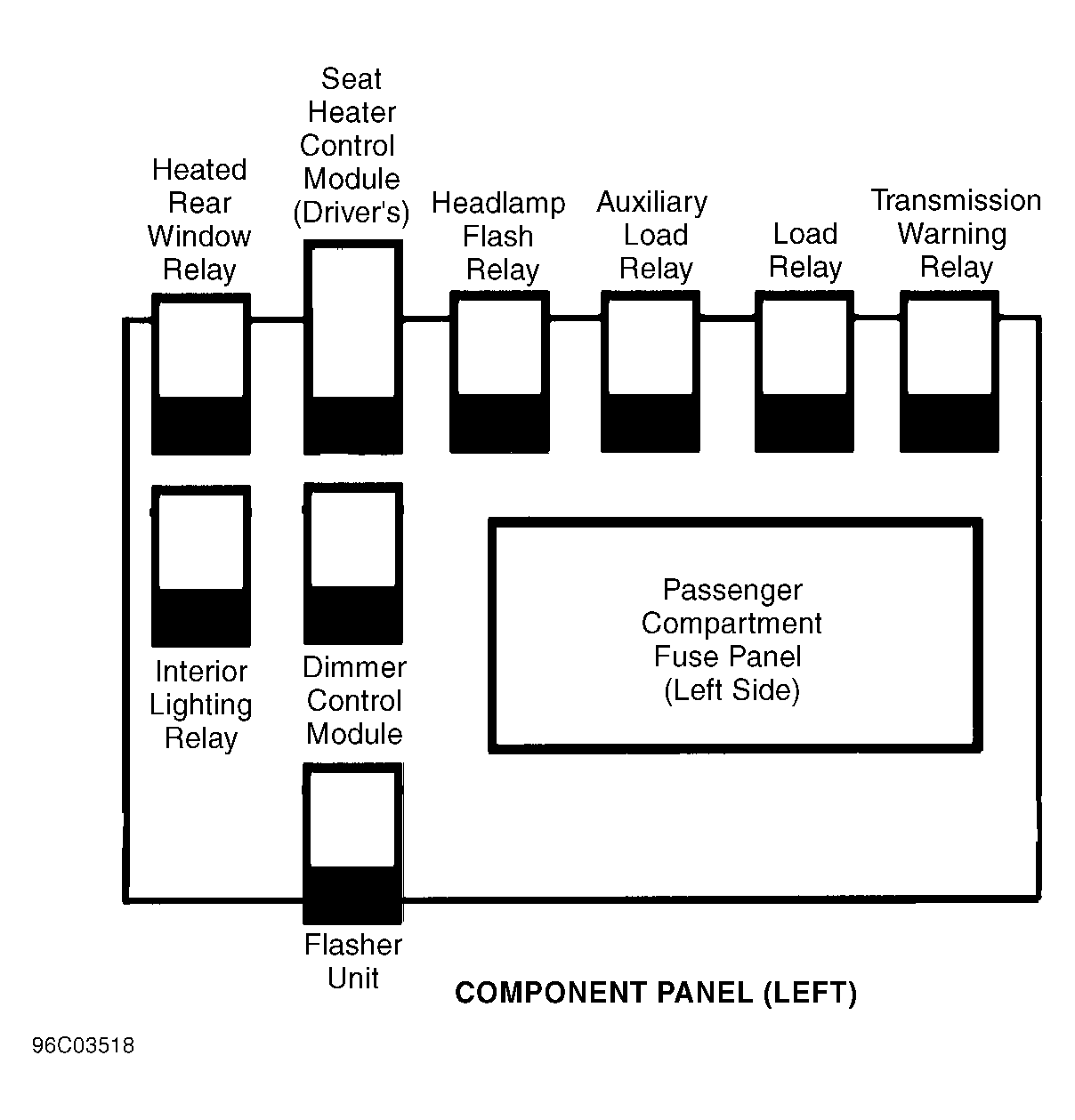

Passenger Compartment Fuse Panel (Left Side) On component panel (left). See Figure .

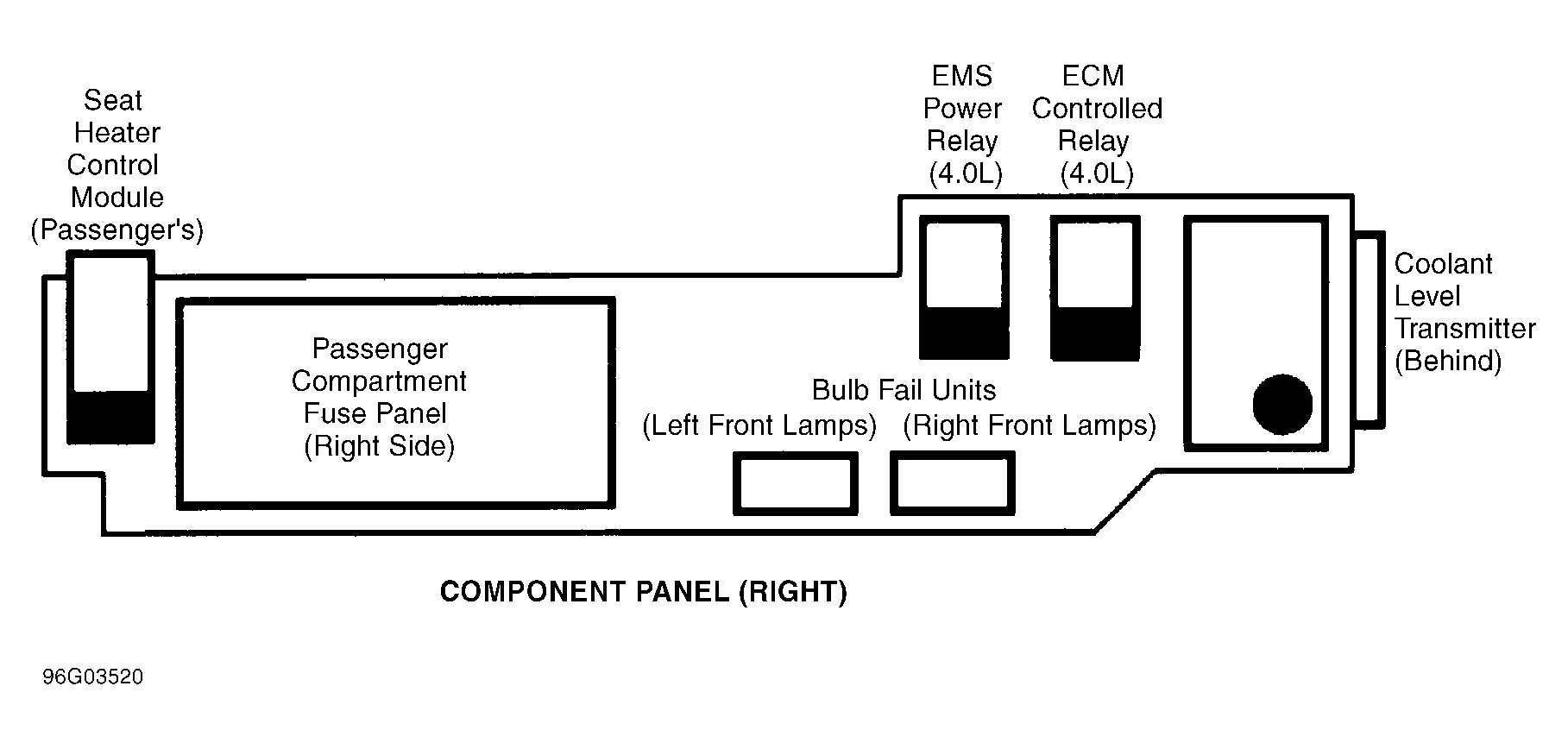

Passenger Compartment Fuse Panel (Right Side) On component panel (right). See Figure .

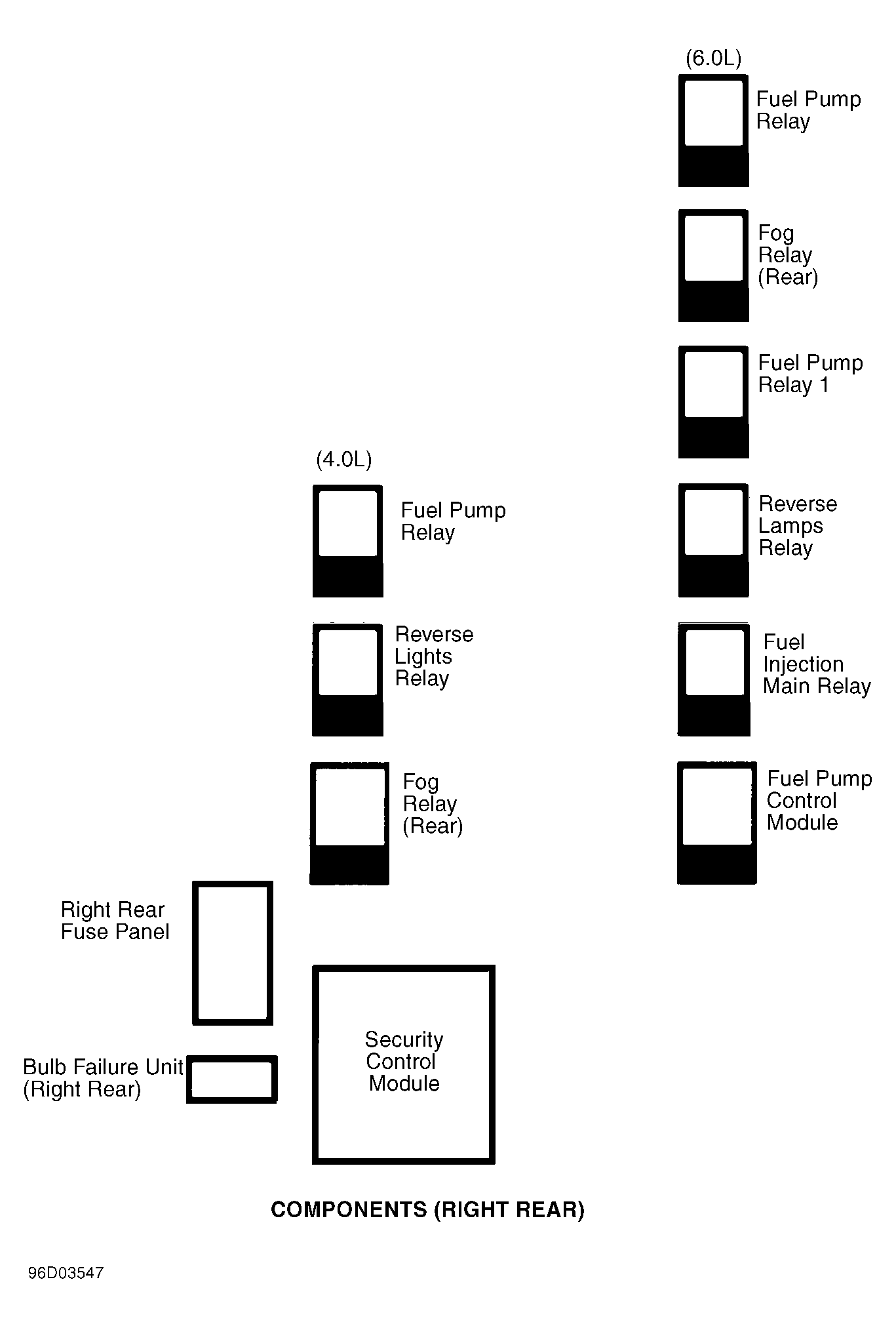

Right Rear Fuse Panel On right side of luggage compartment. See Figure .
Thermal Breakers (Window) On component panel (convertible top). See Figure .
