Steering Column: Overhaul

NOTE: For exploded view of XJS steering column, see Fig 1 .

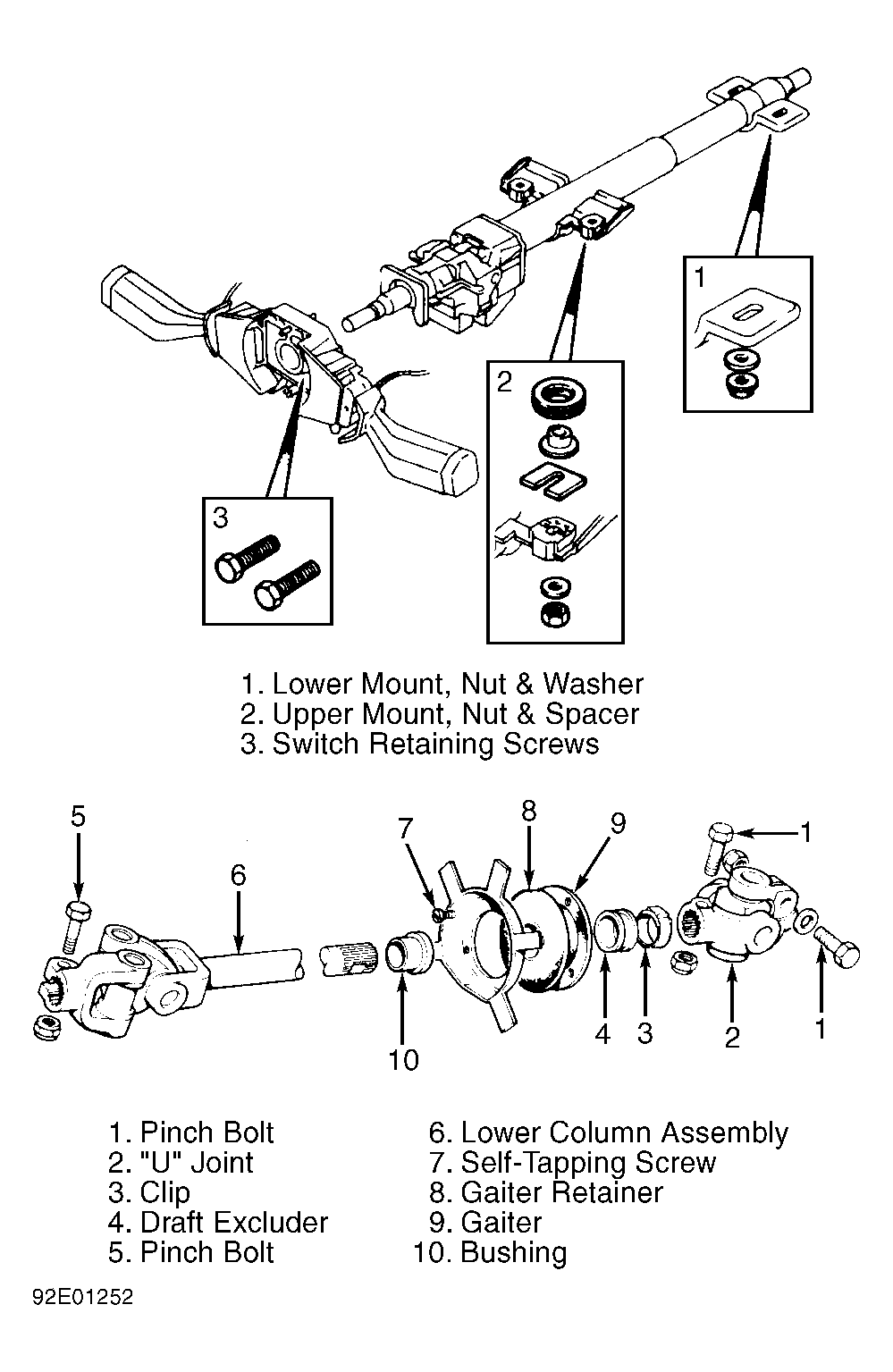

Fig 1: Exploded View Of Steering Column
G92E01252Courtesy of JAGUAR CARS, INC.
