Front Caster Adjustment

Ensure tire pressure is correct. Check caster using equipment manufacturer's instructions. If caster setting is not within specification, adjust caster. See WHEEL ALIGNMENT SPECIFICATIONS  . To increase or decrease caster angle, add or remove shims. See Fig 1 .

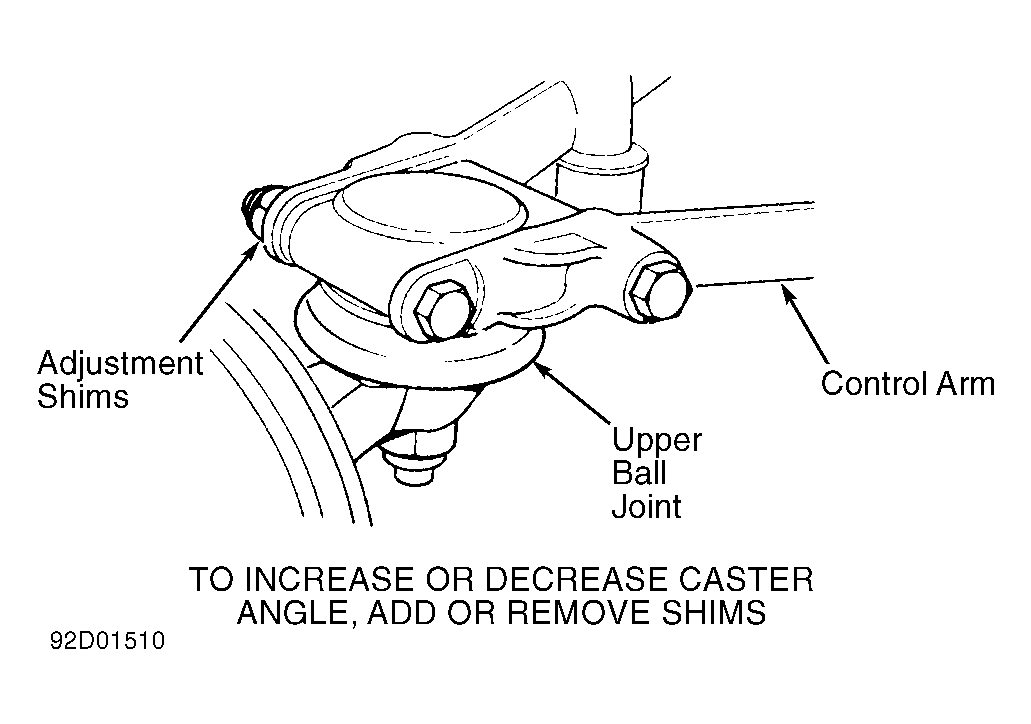

Fig 1: Adjusting Front Wheel Caster

Courtesy of JAGUAR CARS, INC.
