Catalyst Monitor Sensor LH: Removal

WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .
Release the catalyst monitor sensor electrical connector from the mounting bracket and disconnect.

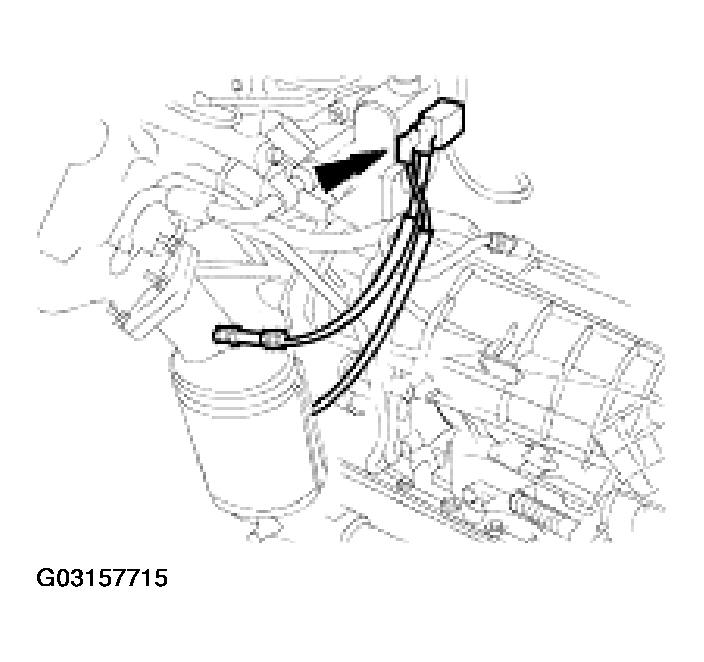

Fig 1: Releasing Catalyst Monitor Sensor Electrical Connector
Courtesy of JAGUAR CARS, INC.
Raise and support on stands. Refer to LIFTING & JACKING .

WARNING: MAKE SURE THE COMPONENTS ARE COOL BEFORE REMOVING THE CATALYST MONITOR SENSOR. FAILURE TO FOLLOW THIS INSTRUCTION MAY RESULT IN PERSONAL INJURY.

CAUTION: Make sure the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.

Using the Snap-on tool S6176, remove the catalyst monitor sensor.

Fig 2: Removing Catalyst Monitor Sensor LH

Courtesy of JAGUAR CARS, INC.
