Driver Seat Module (DSM): Removal

WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .
Detach the driver seat module (DSM) and mounting bracket.

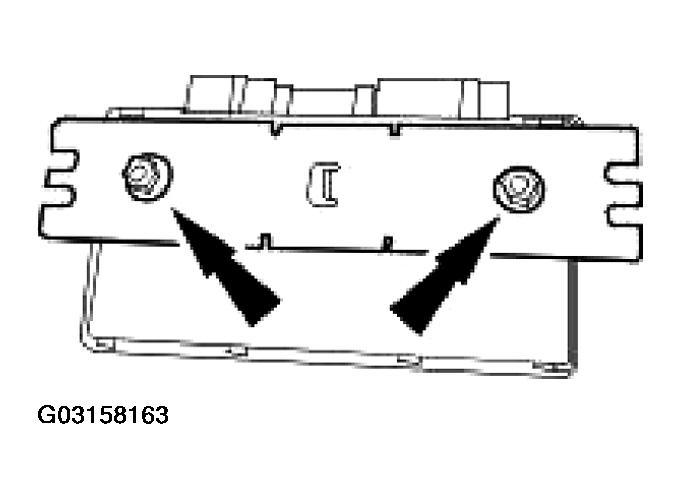

Fig 1: Detaching Driver Seat Module (DSM) And Mounting Bracket
Courtesy of JAGUAR CARS, INC.
Remove the DSM and mounting bracket.
- Disconnect the electrical connectors.

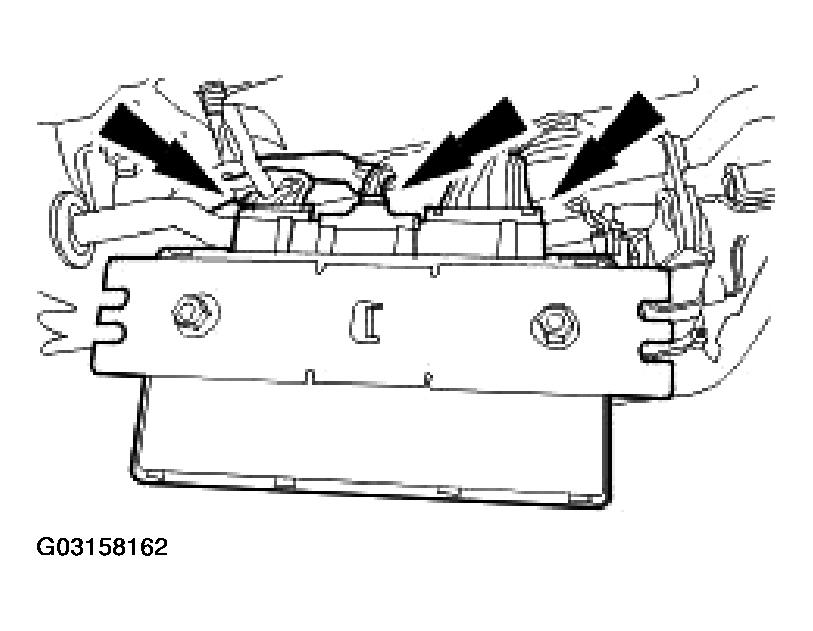

Fig 2: Disconnecting DSM Electrical Connectors
Courtesy of JAGUAR CARS, INC.
Remove the DSM

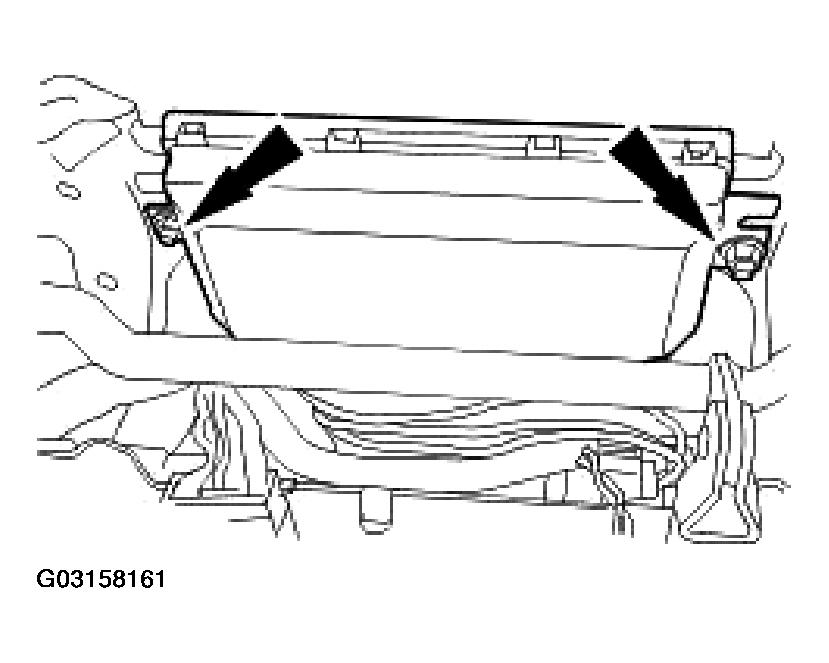

Fig 3: Removing DSM Mounting Bracket
Courtesy of JAGUAR CARS, INC.
