WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.
To install, reverse the removal procedure.
Tighten to 7 Nm.

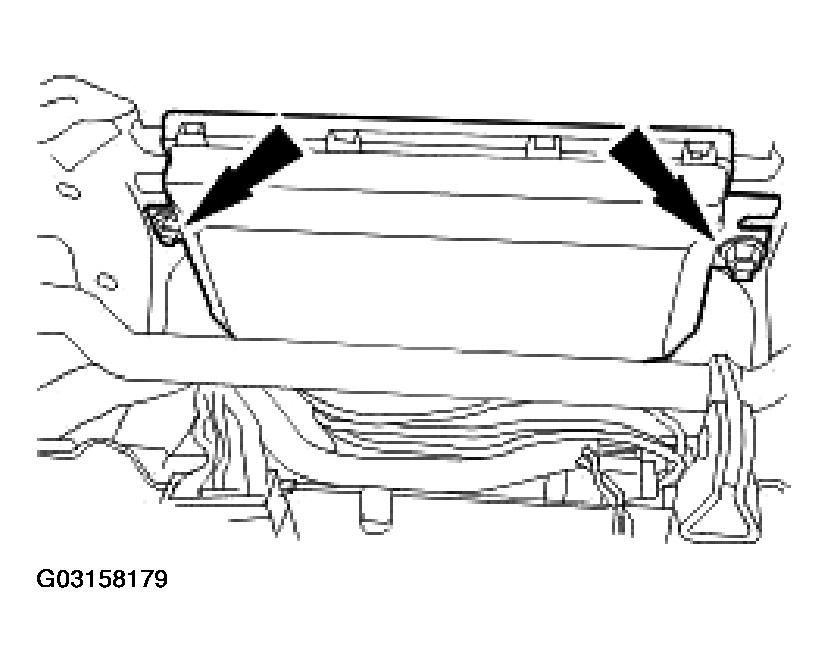

Fig 1: Installing PSM Mounting Bracket
Courtesy of JAGUAR CARS, INC.
Tighten to 4 Nm.

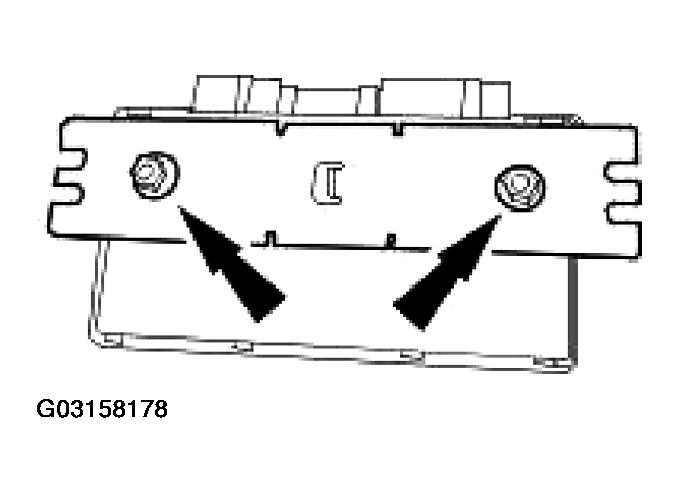

Fig 2: Installing Passenger Seat Module (PSM) And Mounting Bracket
