Passenger Seat Module (PSM): Removal

WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .
Detach the passenger seat module (PSM) and mounting bracket.

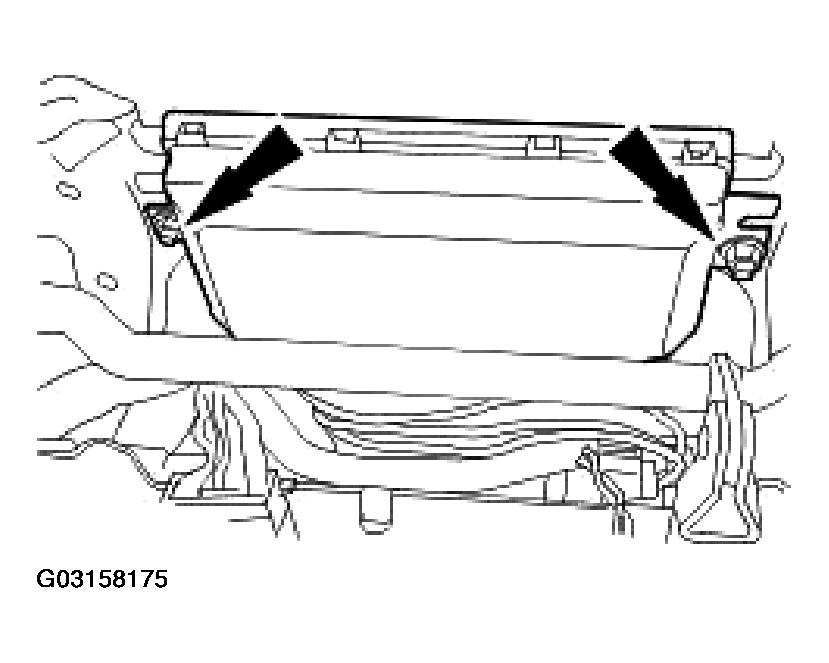

Fig 1: Detaching Passenger Seat Module (PSM) And Mounting Bracket
Courtesy of JAGUAR CARS, INC.
Remove the PSM and mounting bracket.
- Disconnect the electrical connectors.
Fig 2: Disconnecting Electrical Connectors
Courtesy of JAGUAR CARS, INC.
Remove the PSM.

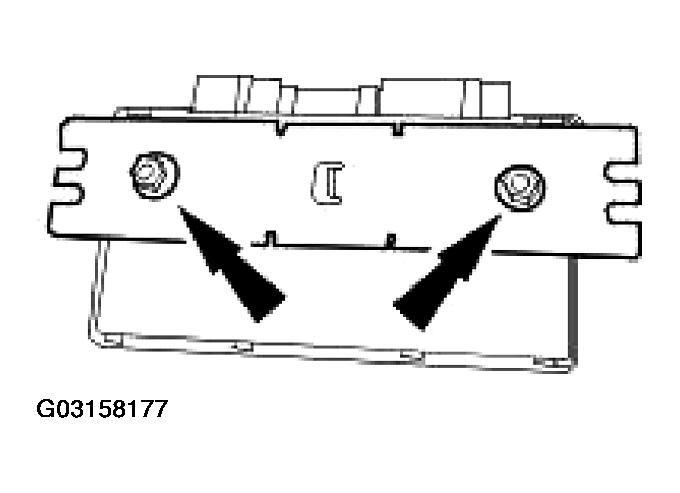

Fig 3: Removing PSM Mounting Bracket
Courtesy of JAGUAR CARS, INC.
