Circuit Protection Devices

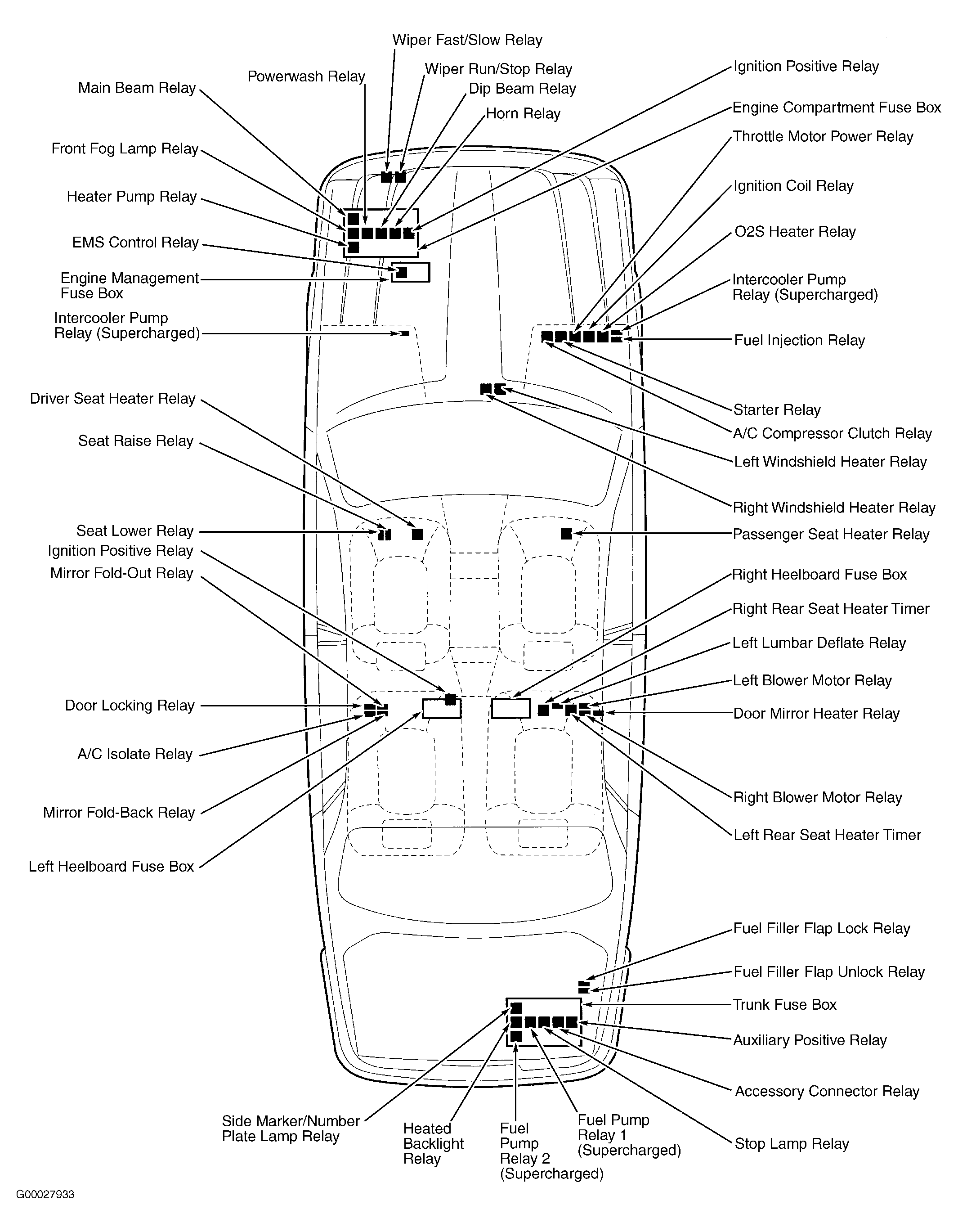

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location
Control Module Enclosure At right rear of engine compartment.
Engine Compartment Fuse Box At left front of engine compartment. See Figure .
Engine Management Fuse Box At left side of engine compartment. See Figure .
Left Heelboard Fuse Box Under front of left rear seat bottom. See Figure .
Right Heelboard Fuse Box Under front of right rear seat bottom. See Figure .
Trunk Fuse Box At right side of trunk. See Figure .
