Ambient Air Temperature Sensor - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator splash shield. Refer to Front End Body Panels .

Courtesy of JAGUAR CARS, INC.

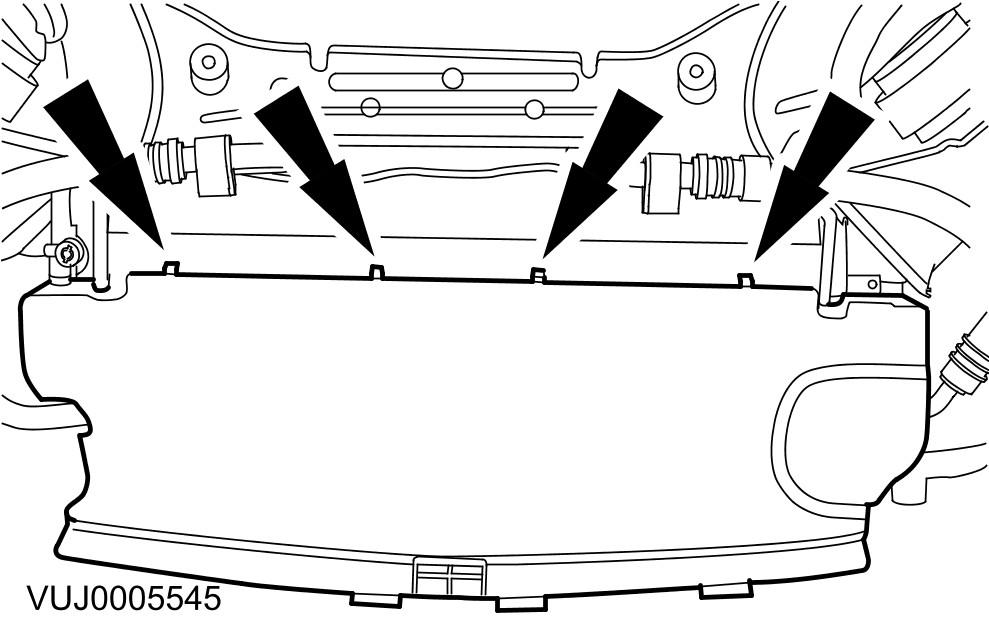

Remove the radiator lower cowl.

Courtesy of JAGUAR CARS, INC.

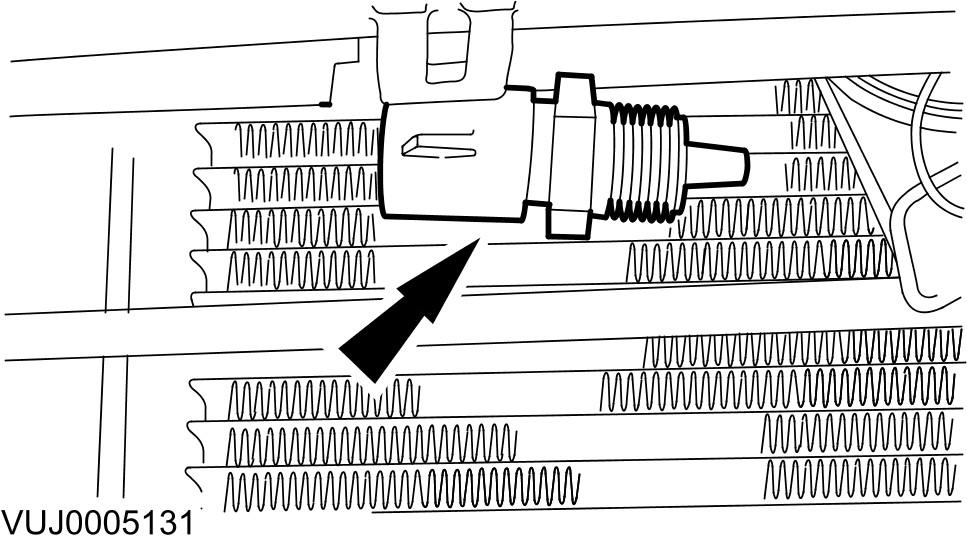

Disconnect the ambient air temperature electrical connector

Courtesy of JAGUAR CARS, INC.

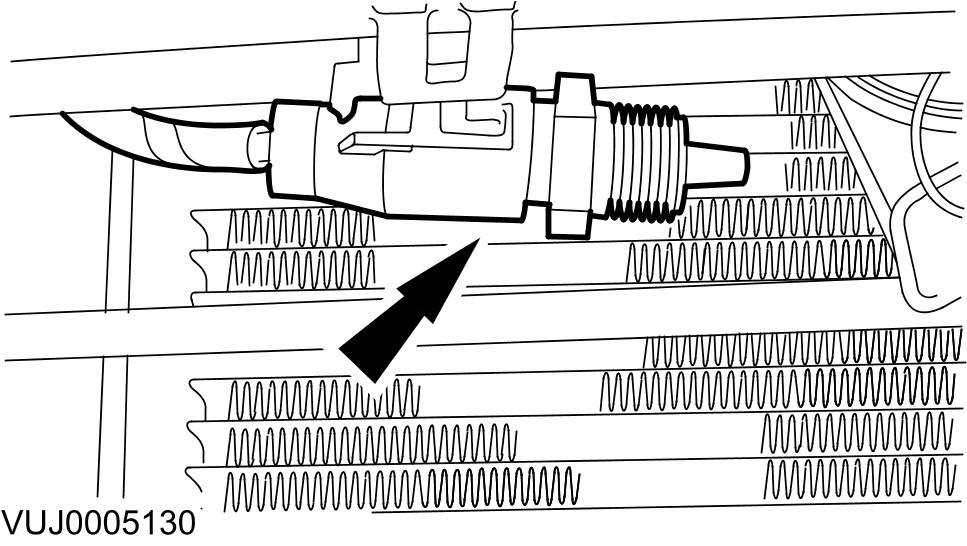

Remove the ambient air temperature sensor.
