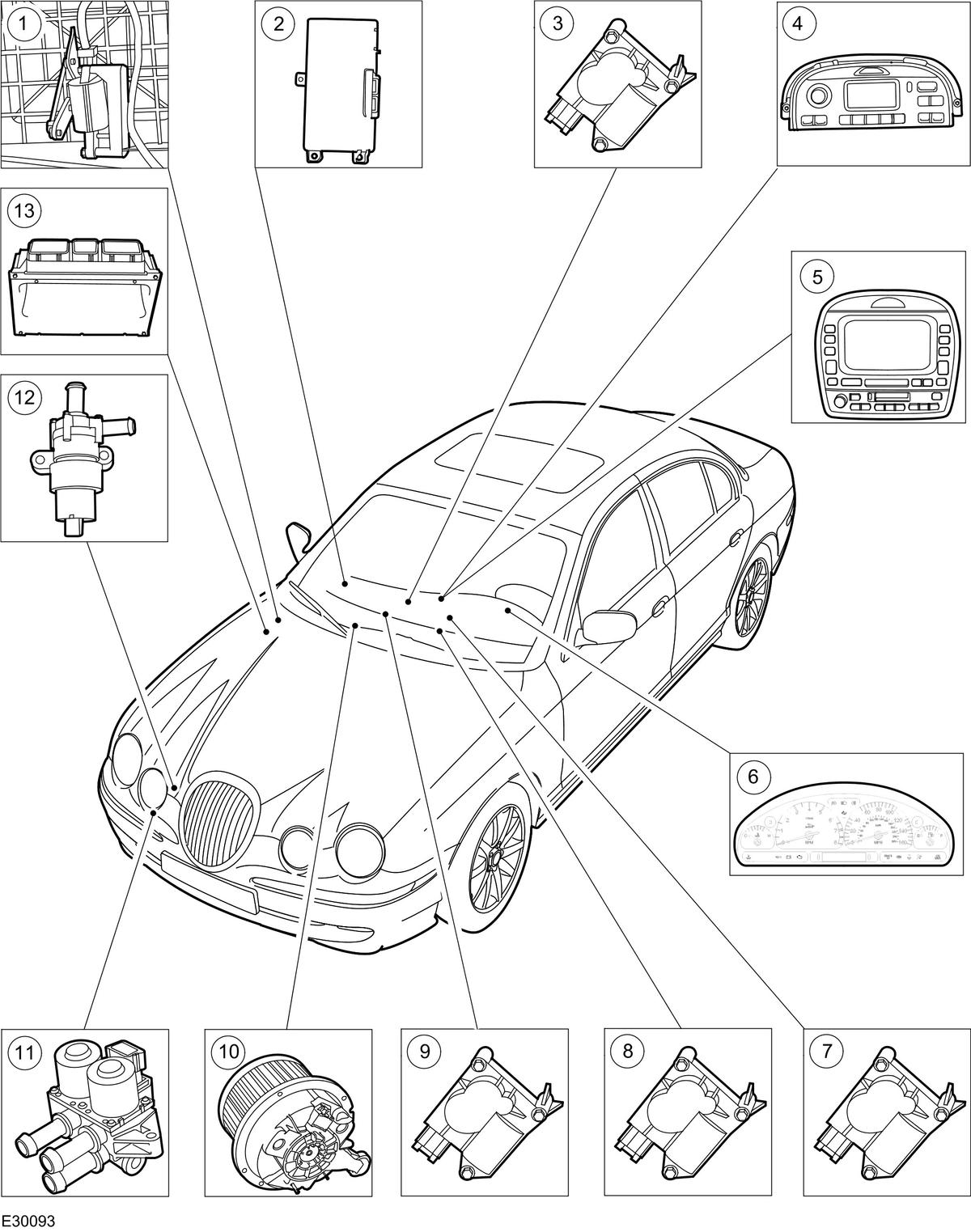

Fig 1: Climate Control Components (1 Of 2)

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Recirculation blend door actuator
2	Remote Climate Control Module (RCCM). Vehicles with telematics.
3	Instrument panel blend door actuator
4	Climate control assembly
5	Climate control assembly. Vehicles with Telematics
6	Instrument cluster
7	Footwell vent/duct blend door actuator
8	Defrost vent/register blend door actuator
9	Cold air bypass blend door actuator
10	Brushless blower motor
11	Dual coolant flow valve
12	Auxiliary coolant flow pump. Vehicles with 4.2L only.
13	Engine control module (ECM)

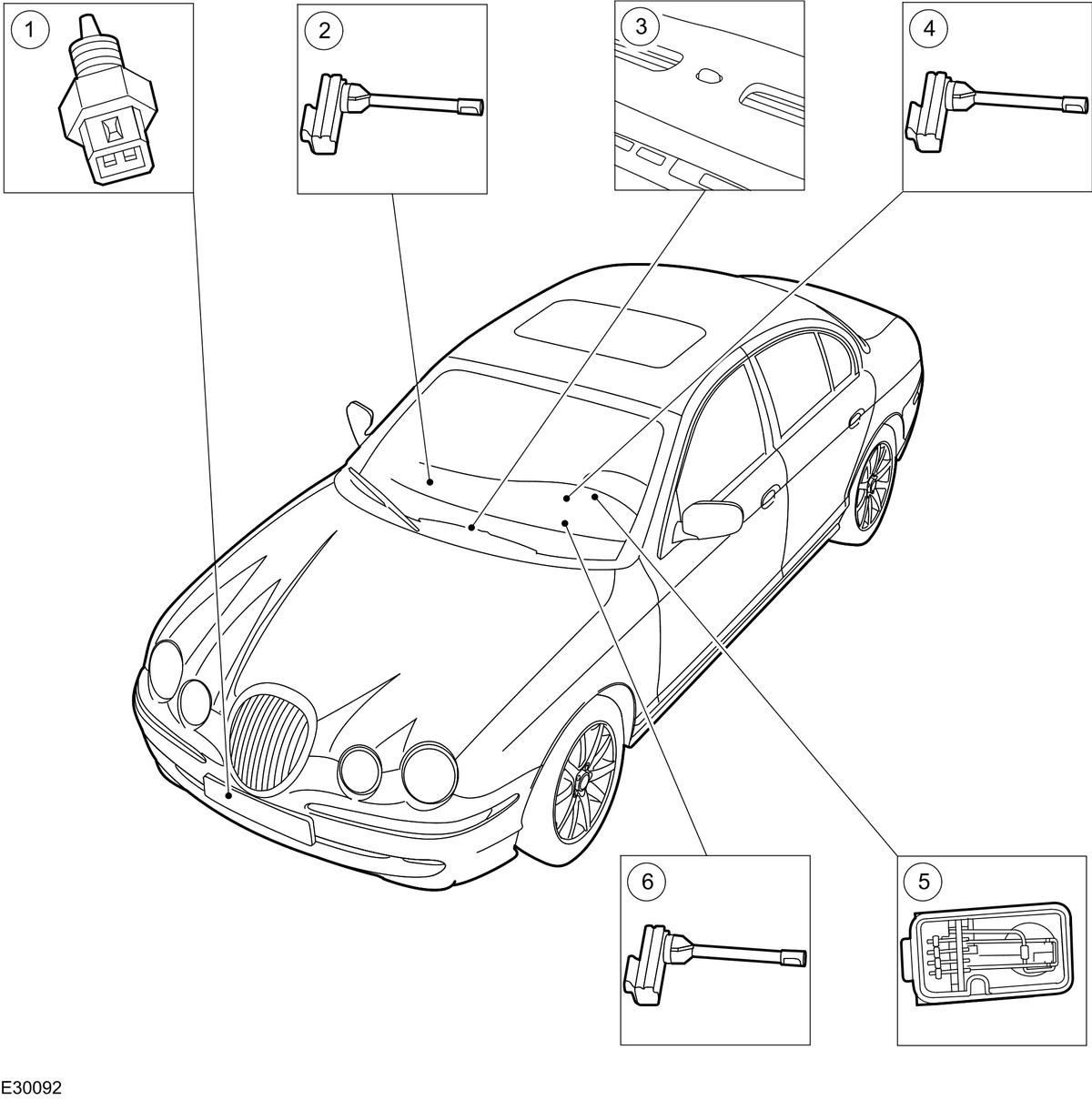

Fig 2: Climate Control Components (2 Of 2)

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Ambient air temperature sensor
2	Air discharge temperature sensor RH
3	Sunload sensor
4	Air discharge temperature sensor LH
5	In-vehicle temperature sensor
6	Air discharge temperature sensor

The climate control assembly is a single module packaged in the instrument panel console of the vehicle. It is a microprocessor-based control consisting of a bezel assembly (including all buttons and switches), a main control board and a housing for the unit.

The climate control assembly provides the following driver interface controls:

Climate control assembly ON/OFF switch/ fan speed switch
Manual temperature adjustment switches (drivers/passengers)
DUAL temperature selection switch
DEFROST switch
Heated front screen ON/OFF switch
Heated rear screen ON/OFF switch
Manual air distribution MODE switch
Fahrenheit/Centigrade option switch
AUTO mode switch
A/C selection switch
Recirculate air switch

Operating any of the climate control assembly controls activates a chime emitted from the instrument cluster.

The climate control assembly automatically maintains a selected temperature for the interior of the vehicle. The system regulates the volume of airflow between the instrument panel registers, floor console registers, front and rear floor ducts, windshield defroster and side window registers. The system can automatically select between fresh and recirculated air with an optional manual override. The climate control assembly will try to provide both driver and passenger with their selected temperature for comfort. The fan controls and air distribution are not controlled individually.
